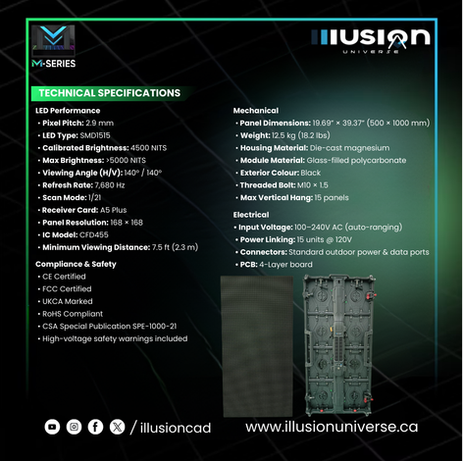

Technical Specification Sheet
Model: M-P2.9
Series: M Series
Application: Outdoor Full-Colour LED Display
Certification: CSA Special Publication SPE-1000-21
LED Performance
Pixel Pitch: 2.9 mm
LED Type: SMD1515, high-performance outdoor grade
Calibrated Illuminance: 4500 NITS
Maximum Illuminance: >5,000 NITS
Viewing Angle (H/V): 140° / 140°
Minimum Viewing Distance: 7.5 ft (2.3 m)
Display Refresh Rate: 7,680 Hz
Drive Type: Scan Mode 1/21
Receiver Card: A5 Plus
Panel Resolution: 168 × 168 pixels
IC Model: CFD455
Mechanical Specifications
Panel Dimensions: 19.69” × 39.37” (500 × 1000 mm)
Panel Weight: 18.2 lb (12.5 kg)
Panel Housing Material: Die-Cast Magnesium
Module Material: Glass-filled polycarbonate
Exterior Color: Black
Threaded Bolt: M10 × 1.5
Maximum Vertical Hang: 15 panels
Electrical Specifications
Input Voltage: 100–240V AC, 50/60 Hz (auto-ranging)
Power Linking: Up to 15 units @ 120V
Power Connectors: Standard outdoor-grade connectors
Data Connectors: Durable RJ45 / EtherCON type
PCB: 4-layer heavy-duty board with enhanced stability
Environment & Standards
Operating Temperature: Suitable for harsh outdoor conditions
Certifications: CE, FCC, UKCA, RoHS compliant, and CSA Special Publication SPE-1000-21
Safety Labels: Over-voltage, electrical hazard, and product safety markings included
IP Rating: Weather-resistant design (based on outdoor module materials)
Why Choose the M-P2.9 Outdoor LED Panel?
Superior Outdoor Performance: Built to deliver high brightness, rich colour depth, and exceptional clarity even in extreme lighting.
Rugged Yet Lightweight: Die-cast magnesium increases structural strength while keeping weight manageable for large setups.
Easy Installation & Maintenance: Panel design supports fast assembly with secure power/data linking and robust hanging capabilities.
Reliable, High-End Components: From IC chips to LED modules and receiver cards, every part is engineered for stability and long lifespan.
Designed for Professional Use: Whether for advertising, events, or public information, the M-P2.9 provides a premium viewing experience.
M-P2.9 Outdoor LED Display
Precision Visuals for Outdoor Perfection
UPC# :
Outdoor Full-Color LED Display Panel
CSA Approved | High Definition | Ultra Lightweight
The M-P2.9 is a premium outdoor full-colour LED display engineered to deliver exceptional clarity, ultra-high brightness, and superior durability in challenging outdoor environments. Featuring a 2.9mm pixel pitch, this model is designed for high-resolution outdoor applications where sharp images, vibrant colours, and long-distance visibility are essential.
Whether used for large-scale advertising, live events, public information displays, sports scoreboards, or stage visuals, the M-P2.9 ensures outstanding performance even in intense sunlight and harsh weather conditions.
Built with SMD1515 LED chips, a 4-layer PCB, and an advanced A5 Plus receiver card, the M-P2.9 delivers seamless, stable, and visually striking output. With a calibrated brightness of 4500 NITS and maximum brightness exceeding 5000 NITS, this display ensures high visibility in all lighting conditions.
Its rugged die-cast magnesium cabinet — combined with a lightweight design and high-strength internal structure — allows for fast, secure installations, making it ideal for touring shows, permanent outdoor setups, and rental applications.
Standout Features :
-
Ultra-High Brightness:
• Calibrated brightness of 4500 NITS with peak brightness exceeding 5000 NITS, ensuring excellent visibility under direct sunlight.
• Suitable for high-ambient-light outdoor environments.
-
High Precision 2.9mm Pixel Pitch: Produces crystal-clear images with enhanced detail, making it ideal for outdoor applications requiring closer viewing distances.
-
Wide Viewing Angle: 140° horizontal / 140° vertical viewing angle ensures consistent colour and clarity from multiple audience viewpoints.
-
Smooth & Stable Visuals: High refresh rate of 7,680Hz enables flicker-free performance, perfect for live broadcasts, concerts, and motion-heavy content.
-
Durable Construction:
• Die-cast magnesium housing ensures high durability with reduced weight.
• Suitable for frequent assembly and disassembly in rental environments.
-
Advanced LED Technology:
• Equipped with SMD1515 LEDs for superior contrast, vibrant colours, and excellent long-term stability.
• LED module uses glass-filled polycarbonate, offering impact resistance and weather protection.
-
Optimized Power Management: Power linking supports up to 15 units @ 120V, enabling streamlined cable management and quicker setup.
-
Flexible Installation: Supports maximum vertical hang of 15 panels, making it adaptable for large-format outdoor screens.
-
Safety & Reliability: Meets international safety and performance standards including CE, FCC, UKCA, RoHS, and more.
