M SERIES P2.6 2

P2.6 INDOOR LED VIDEO PANEL
"Precision Visuals for Indoor Perfection"

UPC# : 673324965210
Indoor Full-Colour LED Display Panel
CSA Approved | High Definition | Ultra Lightweigh

Experience unmatched clarity and vibrant colors with the M-2.6 LED Video Panel. Designed for indoor environments, it delivers stunning visuals, effortless setup, and reliable performance. From corporate events to retail displays, this panel is the ultimate choice for professionals seeking top-tier quality and flexibility.



​​The M-P2.6 from Illusion Universe’s elite M Series is a cutting-edge indoor LED display panel built for professionals who demand clarity, reliability, and seamless performance. With a sharp 2.6 mm pixel pitch, ultra-high 7,680 Hz refresh rate, and brightness levels reaching over 1,200 NITS, it delivers vivid, flicker-free visuals ideal for corporate events, rental staging, broadcast environments, and high-end permanent installations.

Built with die-cast magnesium housing, the panel is both ultra-lightweight and rugged, enabling faster setup and effortless rigging. The front and rear serviceable magnetic modules, curve-capable connectors, and modular 500x500 mm format make this unit a versatile choice for creative screen layouts.

​

Best of all, the M-P2.6 is CSA approved, ensuring full compliance with North American electrical safety standards — a major requirement for venues, integrators, and rental partners across Canada and the USA.

​

Available Pixel Pitches:

  • P1.5 mm – Ultra-fine pitch for maximum detail in close-up environments

  • P1.8 mm – Ideal for versatile installations with balanced pixel density

  • P2.6 mm – Optimized for medium-to-long viewing distances

  • Custom configurations available on request

.

​

Standout Features :

​

  • 2.6 mm Pixel Pitch – High-resolution visuals, even at close range

  • CSA Certified – Tested and approved for electrical safety compliance in Canada & the US

  •  Brightness – Up to 1,200 NITS with 1,000 NITS calibrated for consistent indoor visibility

  • Ultra-Smooth 7,680 Hz Refresh Rate – Ideal for camera work and live feeds

  •  Die-Cast Magnesium Frame – Strong yet lightweight (only 6.25 kg per panel)

  • Front & Rear Serviceable LED Modules – Easy maintenance and quick access

  • Convex/Concave Curve Support – ±6° with secure curve locks for creative installs

  •  Seetronic Power & Data Connectors – Industry-trusted reliability

  •  Powered by A8s-N Receiving Card & AOB Technology – For efficient processing and LED protection

  • Power Linking – Daisy-chain up to 9 panels @ 120V

  • Max Vertical Hang – Up to 25 panels for large-scale installations

​​​

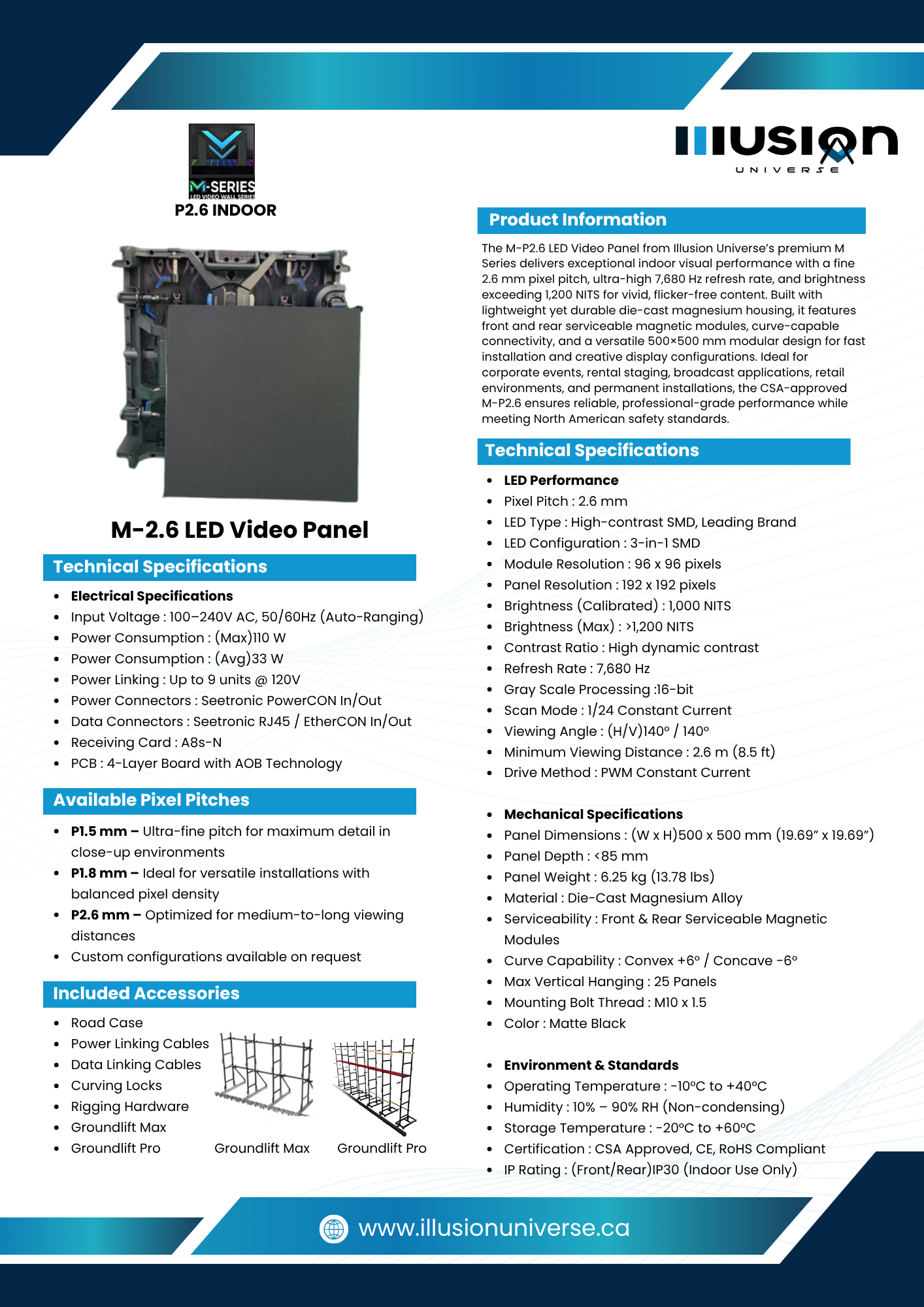

Technical Specification Sheet

Model: M-P2.6
Series: M Series
Application: Indoor Full-Colour LED Video Display
Certification: CSA Special Publication SPE-1000-21

​

LED Performance



Pixel Pitch : 2.6 mm

LED Type : High-contrast SMD, Leading Brand

LED Configuration : 3-in-1 SMD

Module Resolution : 96 x 96 pixels

Panel Resolution : 192 x 192 pixels

Brightness (Calibrated) : 1,000 NITS

Brightness (Max) : >1,200 NITS

Contrast Ratio : High dynamic contrast

Refresh Rate : 7,680 Hz

Gray Scale Processing :16-bit

Scan Mode : 1/24 Constant Current

Viewing Angle :  (H/V)140° / 140°

Minimum Viewing Distance : 2.6 m (8.5 ft)

Drive Method : PWM Constant Current

​

Mechanical Specifications

​

Panel Dimensions : (W x H)500 x 500 mm (19.69” x 19.69”)

Panel Depth : <85 mm

Panel Weight : 6.25 kg (13.78 lbs)

Material : Die-Cast Magnesium Alloy

Serviceability : Front & Rear Serviceable Magnetic Modules

Curve Capability : Convex +6° / Concave -6°

Max Vertical Hanging : 25 Panels

Mounting Bolt Thread : M10 x 1.5

Color : Matte Black​​

Electrical Specifications

​

Input Voltage : 100–240V AC, 50/60Hz (Auto-Ranging)

Power Consumption :  (Max)110 W

Power Consumption : (Avg)33 W

Power Linking : Up to 9 units @ 120V

Power Connectors : Seetronic PowerCON In/Out

Data Connectors : Seetronic RJ45 / EtherCON In/Out

Receiving Card : A8s-N

PCB : 4-Layer Board with AOB Technology

​​

​​Environment & Standards

​

Operating Temperature : -10°C to +40°C

Humidity : 10% – 90% RH (Non-condensing)

Storage Temperature : -20°C to +60°C

Certification : CSA Approved, CE, RoHS Compliant

IP Rating :  (Front/Rear)IP30 (Indoor Use Only)

​​​​​

Included Accessories

  • Road Case (Optional)

  • Power Linking Cables (Seetronic)

  • Data Linking Cables (Seetronic)

  • Curving Locks (Built-In)

  • Rigging Hardware (Optional)

LED Video Wall Series

​​​Applications

  • Corporate Events: Perfect for presentations, text displays, and high-resolution IMAG.

  • Retail Displays: Create eye-catching advertisements with vibrant and dynamic visuals.

  • Broadcast Studios: Ensure seamless, professional-grade visuals for live and pre-recorded content.

  • Live Productions: Engage audiences with immersive and interactive displays.

  • Exhibitions & Trade Shows: Attract attention with high-impact, visually striking installations.



Why Choose the M-2.6 LED Video Panel?

  1. Unmatched Visual Performance: High refresh rate and leading-brand LED lamps ensure vivid and smooth imagery.

  2. Durable & Lightweight Design: Die-cast magnesium housing makes it easy to transport and install.

  3. Flexible Installation: Curved configurations and vertical hanging options accommodate creative setups.

  4. Ease of Maintenance: Front and rear serviceability reduce downtime and simplify maintenance.

  5. Premium Components: Equipped with Seetronic connectors and top-quality power supplies for reliable operation.



Elevate your visual experience with the M-2.6 LED Video Panel—your ultimate solution for professional-grade displays.

Contact us today to learn more or to request a quote!​​​

​
