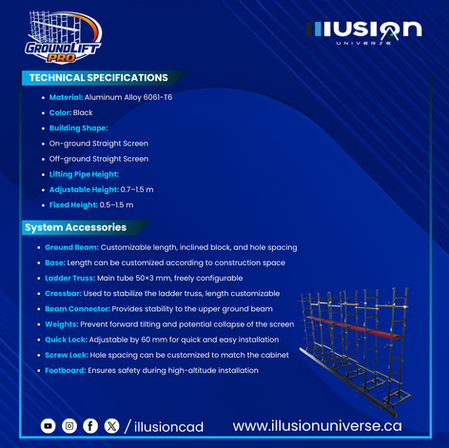

TECHNICAL SPECIFICATIONS
-
Material: Aluminum Alloy 6061-T6
-
Color: Black
-
Building Shape:
-
On-ground Straight Screen
-
Off-ground Straight Screen
-
Lifting Pipe Height:
-
Adjustable Height: 0.7–1.5 m
-
Fixed Height: 0.5–1.5 m
System Accessories
-
Ground Beam: Customizable length, inclined block, and hole spacing
-
Base: Length customizable according to construction space
-
Ladder Truss: Main tube 50×3 mm, freely matched
-
Crossbar: Stabilizes ladder truss, customizable length
-
Beam Connector: Stabilizes the upper ground beam
-
Weights: Prevent screen tilting and forward collapse
-
Quick Lock: Adjustable by 60 mm, enables fast installation
-
Screw Lock: Customizable hole spacing for cabinet locking
-
Footboard: Ensures safety during high-altitude installation.

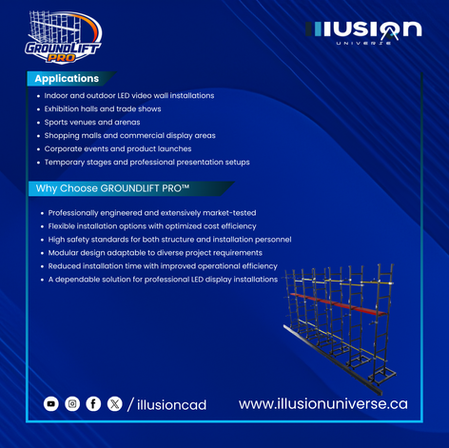

Applications
-
Indoor and outdoor LED video wall installations
-
Exhibition halls and trade shows
-
Sports venues and arenas
-
Shopping malls and commercial displays
-
Corporate events and product launches
-
Temporary event stages and professional presentations
Why Choose GROUND LIFT PRO™
-
Professionally engineered and market-tested design
-
Flexible installation options with optimized cost efficiency
-
High safety standards for both structure and installers
-
Modular system adaptable to multiple project requirements
-
Faster setup with reduced labor and installation time
-
Reliable solution trusted for professional LED display applications
Professional LED Screen Ground Support & Lifting System
GROUND LIFT PRO™ is a professional-grade LED screen ground support system developed by G-Truss, engineered to deliver stable, safe, and efficient support for both on-ground and off-ground LED screen installations. Built on a patented structural design and refined through years of market testing, the system offers a mature and reliable solution for straight LED video wall configurations across diverse application environments.
Designed with flexibility and performance in mind, GROUND LIFT PRO™ integrates a modular framework with an adjustable lifting mechanism, allowing installers to adapt quickly to varying site conditions and display heights. Its high-strength aluminum construction ensures excellent load-bearing capacity while maintaining lightweight handling, making it ideal for professional event setups, commercial displays, and temporary or semi-permanent installations where safety, speed, and structural integrity are critical.
Key Features
Dual Installation Capability
Supports both on-ground and off-ground straight LED screen constructions, providing flexibility to meet different site and elevation requirements without additional structural complexity.
Patented & Optimized Structure
Developed from a patented design and continuously optimized, the structure delivers enhanced stability and long-term reliability under demanding installation conditions.
Modular & Customizable System
Modular components allow customization of length, spacing, and configuration, enabling seamless adaptation to various screen sizes and construction spaces.
Integrated Lifting Mechanism
Equipped with a lifting pipe system that enables controlled and precise height adjustment, improving installation accuracy and operational safety.
High-Strength Aluminum Construction
Manufactured using Aluminum Alloy 6061-T6, ensuring durability, corrosion resistance, and a strong yet lightweight framework for easier transport and handling.
Quick & Efficient Installation
Quick-lock and screw-lock connections reduce installation time, enhance efficiency, and ensure secure locking of LED cabinets.
Enhanced Stability & Safety
Stabilizing components and counterweights are designed to prevent forward tilting or collapse, ensuring a secure and balanced LED screen structure.
Call to Action
Upgrade your LED installations with GROUND LIFT PRO™ — a reliable, safe, and flexible ground support solution. Contact us today to discuss your project requirements.
