DJ Facade | Illusion Universe | Stage Lighting

UPC# : 602835339357

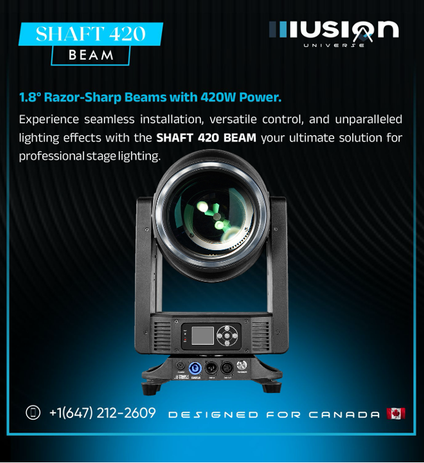

The SHAFT 420 BEAM is an innovative moving head beam light featuring a powerful OSRAM SIRIUS HRI 420W lamp and cutting-edge high-resolution optical technology. Its 1.8° beam angle combined with a 160mm front lensdelivers an ultra-long throw, producing a solid, impactful beam effect perfect for professional lighting applications. The integrated RGB front ring strip light with 30 x 0.2W 3-in-1 SMD LEDs adds a magical visual touch, enhancing the overall ambiance.

​

Designed for versatility and performance, this lightweight fixture offers a wide range of effects and capabilities, including 13 static gobos, 13 dichroic colors, 6-color wheel, dual prisms, frost, and focus. Its 360° continuous PAN/TILT movement and precision 3-phase motors enable smooth, fast, and noise-free operation, making it ideal for live concerts, TV productions, road shows, clubs, and more.

Features

​​

  • Ø160mm High-Resolution Front Lens: Oversized optics deliver stunning clarity and power, ensuring your beams cut through fog and haze like a laser.

  • 1.8° Ultra-Narrow Beam Angle: Creates concentrated, long-throw beams with exceptional punch—perfect for large

  • RGB Neon Ring Effect: A built-in front ring with 30 RGB SMD LEDs adds ambient color and aura around the lens, enhancing stage presence with customizable macros.

  • Dual Prism Wheels for Advanced Aerial FX: Two independent prism wheels offer 6 different prisms with morphing, indexing, and overlay capabilities for breathtaking mid-air effects.

  • Static Gobo & Color Wheels: 13 static gobos and 13 vibrant dichroic colors, plus a 6-color wheel, allow endless combinations for custom looks and dynamic transitions.

  • 360° Continuous PAN/TILT Movement: Enjoy ultra-smooth, fast, and silent movement with continuous PAN/TILT rotation, backed by 3-phase motors and auto repositioning.

  • 0–100% Smooth Dimming + Variable Strobe: High-precision dimming and 0–25Hz strobe bring flexibility for both subtle ambiance and high-impact drops.

  • Instagram
  • Facebook
  • YouTube
  • TikTok
Features
gallery
ROBUST 200 BEAM

  • Dimensions

  • Effects

ROBUST 200 BEAM

  • Photometric


Technical Specifications

  • Light Source

  • Lamp Type: OSRAM SIRIUS HRI 420W

  • Auxiliary LEDs: 30×0.2W 3-IN-1 RGB SMD LEDs (Front Ring Neon Strip)

  • Color Temperature: 7850K (±300K)

  • CRI (Color Rendering Index): ≥ 83 (±5)

  • Flicker-Free Operation: Optimized for TV and Film

  • Lamp Life Span: Approx. 2500 hours (varies based on environmental conditions, voltage, usage patterns, and control settings)


  • Optical System

  • Optics: High-resolution, precise optical system

  • Front Lens: Ø160mm

  • Beam Angle: 1.8°

  • Focus: Smooth, linear motorized focus

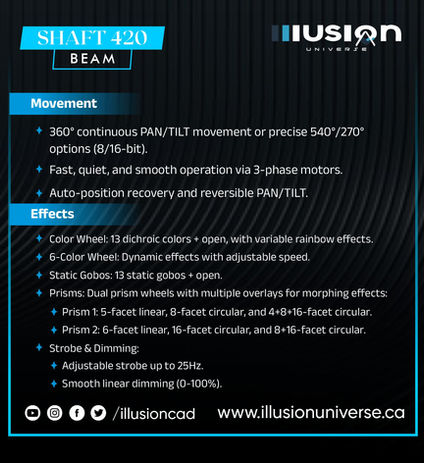

  • Movement

  • Pan:

  • 360° Continuous

  • 540° (8/16-bit resolution)

  • Tilt:

  • 360° Continuous

  • 270° (8/16-bit resolution)

  • Motors: 3-Phase stepper motors (fast, quiet, precise)

  • Features:

  • Auto repositioning

  • Position memory

  • Reversible PAN/TILT


  • Gobo & Effects System​

  • Gobo Wheel: 13 static gobos + open

  • Prism Wheel 1:

  • 5-Facet Linear Prism

  • 8-Facet Circular Prism

  • 4+8+16-Facet Circular Prism

  • ​

  • Prism Wheel 2:

  • 6-Facet Linear Prism

  • 16-Facet Circular Prism

  • 8+16-Facet Circular Prism

  • ​

  • Features:

  • Prism indexing

  • Prism morphing

  • Overlay effects


  • Color System

  • Color Wheel: 13 dichroic colors + open

  • 6-Color Wheel: With variable speed and direction

  • Rainbow Effect: Bi-directional, variable speed
    ​

  • Strobe & Dimming

  • Strobe: 0–25Hz with pulse/random effects

  • Dimming: 0–100% smooth linear dimming


  • ​Control & Connectivity

  • DMX Channels: 23/25 channels (USITT DMX-512)

  • Control Modes: DMX512, Master-Slave, Auto Mode

  • RDM (Remote Device Management): Available

  • Art-NET: Optional

  • Wireless DMX Receiver: Built-in (Optional)

  • Signal Protection: Shielded input for stable signal without interference

  • Connectors:

  • DMX: 3-pin & 5-pin XLR IN/OUT

  • Network: RJ45 etherCON IN/OUT (optional with Art-Net)

  • Software Update: Upgradable via DMX connectors (multi-unit daisy-chain update)


  • Display & Interface

  • Screen: 1.44" TFT LCD Display

  • Control Buttons: 5-button navigation

  • Screen Rotation: 180° reversible display

  • Auto-Off: Display turns off when inactive

  • Signal Indicator: DMX signal monitoring

    Cooling System

  • Self-Adjusting Fan Cooling: Efficient low-noise operation

  • Temperature Monitoring: Constant readout and management

  • Over-Temperature Protection: Prevents overheating for long lifespan


  • Power Supply

  • Electronic Ballast: PT-SIRIUS 310W with Active PFC

  • Voltage: AC100-240V, 50/60Hz

  • Power Consumption: 630W

  • Power Connections: PowerCON IN/OUT with fuse protection​.

  • Housing & Build Quality

  • Material: Fireproof PA6 + fiber-reinforced plastic with aluminum & steel plates

  • Handles: Dual side handles for easy handling

  • Color: Matte black exterior


  • Installation & Rigging

  • Mounting Options:

    • Omega Clamps: 2x 1/4 turn fastening (vertical & horizontal adaptable)

    • Safety Attachment Point: Available for secure rigging

  • Operating Positions: Any (floor-mounted or truss-mounted)

    Environmental Conditions

  • Operating Temperature: -25°C to 45°C

  • IP Rating: IP20 (indoor use)
    ​

  • Dimensions & Weight

  • Product Dimensions: 261.8mm (D) x 297.9mm (W) x 513.7mm (H)

  • Packing Dimensions: 655mm (D) x 380mm (W) x 355mm (H)

  • Net Weight: 13.6 kg

  • Gross Weight: 15.6 kg

​

  • CERTIFICATIONS & SAFETY

  • Evaluated to m SPE-1000 for Canadian installation. U.S. field evaluation available upon request. Designed to comply with applicable CE and RoHS requirements.

  • Thermal cutoff, head-lock transport, fixture reset.

TS

Why Choose SHAFT 420 BEAM ?

Ultra-Narrow 1.8° Beam for Maximum Impact

With a razor-sharp 1.8° beam angle and a massive Ø160mm precision lens, the SHAFT 420 BEAM delivers long-distance, high-intensity beams ideal for big stages and massive visual punch.


Powered by OSRAM 420W

Equipped with a powerful OSRAM SIRIUS HRI 420W lamp, it provides bright, high-contrast output with exceptional reliability and a color temperature of 7850K—perfect for professional productions.


Front Neon Ring Effect

A unique RGB ring light with 30 SMD LEDs surrounds the lens, adding a dynamic visual dimension—ideal for clubs, concerts, and creative stage setups.


Double Prism System with Morphing

6 premium prisms across 2 wheels—overlap, rotate, and morph effects like never before. Custom-designed for lighting designers who demand versatility.


Full Color & Gobo Arsenal

  • 13 Dichroic Colors + 6-Color Wheel

  • 13 Static Gobos

  • Dual Rainbow, Frost, Focus, and Indexing Endless combinations for visual creativity.


360° Continuous PAN & TILT

Unlimited movement. Fast, smooth, and accurate 3-phase motors bring fluid motion and stunning aerial effects to life.​

Advanced Control Features

  • DMX 512 / RDM / Optional Art-Net / Wireless

  • LCD with 180° auto-flip

  • DMX recording & software update via daisy chain Ultimate control flexibility for any setup.
    Built to Perform: Fireproof ABS-PC housing, aluminum skeleton, and intelligent self-adjusting cooling system—designed to endure tour-grade conditions.
    Compact Yet Mighty

  • At just 13.6kg, this fixture is ultra-lightweight and easy to install with quick-release Omega clamps—saving time without compromising performance.​​

​

​​​​​Ready to Elevate Your Light Show?



Order the SHAFT 420 BEAM Today!
Experience unmatched precision, powerful output, and stunning effects—perfect for concerts, clubs, and pro stages.

Call Now: +1 647-860-7330
Shop Online: www.illusionuniverse.ca

Fast Shipping Across Canada & USA

 Professional Support | Dealer Pricing Available
