ROBUST 200 BEAM – Technical Specifications

​

Light Source

  • LED Type: OSRAM 200W LED Module

  • Color Temperature: 8500K

  • CRI (Color Rendering Index): ≥70

  • Front Neon Ring: 30 x 0.2W 3-IN-1 RGB SMD LEDs

  • Flicker-Free: Suitable for broadcast TV and film applications

  • LED Life Span: Approx. 20,000 hours
    (Life span may vary based on environmental conditions, power voltage, usage patterns, and control settings.)​



Optical System

  • Front Lens Diameter: Ø160mm

  • Beam Angle: 1.8°

  • Optical Features: High-resolution optical system with smooth and precise linear focus



Movement (PAN & TILT)

  • PAN:

    • 360° Continuous movement

    • 540° (8/16-bit precision control)

  • TILT:

    • 360° Continuous movement

    • 270° (8/16-bit precision control)

  • Motors: Fast, quiet, and precise 3-phase motors

  • Additional Features:

    • Auto repositioning after unexpected movement

    • PAN/TILT reversible settings



Color System

  • 1 Color Wheel:

    • 13 Dichroic Colors + Open

    • Variable direction rainbow effect with adjustable speed

  • 6-Color Wheel:

    • Variable direction and speed control



Gobo System

  • 1 Static Gobo Wheel:

    • 13 Static Gobos + Open



Prism System

  • Dual Prism Wheels:

    • Prism 1: 3 different prisms (5-facet linear, 8-facet circular, 4+8+16-facet circular prism)

    • Prism 2: 3 different prisms (6-facet linear, 16-facet circular, 8+16-facet circular prism)

    • Prism Indexing & Morphing for unique overlapping effects

    • Variable speed and direction control



Strobe & Dimming

  • Strobe: 0-25Hz shutter/strobe effect with variable speed

    • Preset variable/random strobe and dimming pulse effects

  • Dimming: 0-100% smooth linear dimming



Control System

  • DMX Channel Modes: 23/25 Channels

  • Control Modes:

    • DMX512

    • Master-Slave Mode

    • Auto Operation

    • DMX Recorder & Edit Function

  • RDM Support: Yes (Remote Device Management)

  • Art-Net: Optional

  • Wireless DMX: Optional (built-in receiver system)

  • Signal Protection: Shielded input signal for stable transmission without interference

  • Connectivity:

    • 3-Pin & 5-Pin XLR DMX IN/OUT

    • RJ45 etherCON IN/OUT (Optional with Art-Net)​​​





Software & Display System

  • Software Update:

    • Upgradeable via DMX daisy chain

    • Multiple fixtures updatable simultaneously

  • Display System:

    • 1.44" TFT LCD Display

    • 5 Control Buttons

    • 180° Reversible LCD Display

    • Auto Display OFF Function

    • DMX Signal Monitoring Indicator



Cooling & Protection

  • Cooling System: Advanced low-noise fan cooling with integrated aluminum heat dissipation

  • Temperature Management: Constant temperature monitoring and over-temperature protection



Power & Electrical

  • Power Supply: AC 100-240V, 50/60Hz

  • Power Consumption: 290W

  • Power Connectors: PowerCON IN/OUT with fuse

  • Active Power Factor Correction (PFC): Yes



Housing & Build

  • Material:

    • High-tension molded fireproof ABS PC housing

    • Aluminum and steel internal structure

  • Handles: Two ergonomic side handles on base

  • Color Finish: Black

​

Certification

CSA Special Publication SPE-1000-21

​

Why Choose ROBUST 200 BEAM?

With a sleek, lightweight design and robust construction, the ROBUST 200 BEAM combines style with reliability. Its modern housing and easy installation features—including 1/4-turn fastening Omega Clamps—make it an essential tool for lighting professionals.

​

Order Now!

Take your lighting design to the next level with the ROBUST 200 BEAM. Contact us today to learn more or request a quote.

​

Robust logo

BEAM

UPC# : 602835339388

Ultra-Compact, High-Performance LED Moving Head Beam

​

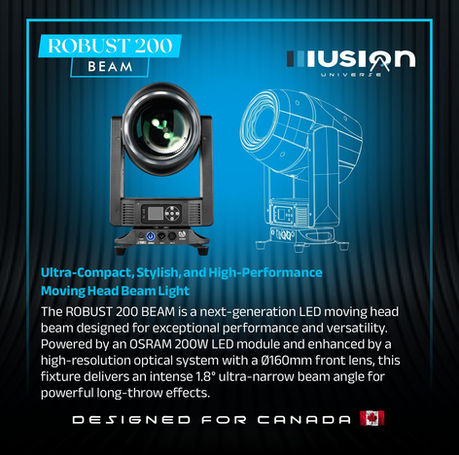

The ROBUST 200 BEAM is a powerful yet lightweight LED moving head beam light, designed for professional lighting applications. Engineered with an OSRAM 200W LED module, it delivers an intense 1.8° ultra-narrow beam, ideal for concerts, clubs, live events, and TV productions.



With a high-precision optical system featuring a Ø160mm front lens, the ROBUST 200 BEAM creates sharp, crisp beams with ultra-long throw capability, making it a perfect tool for dynamic lighting shows.

​

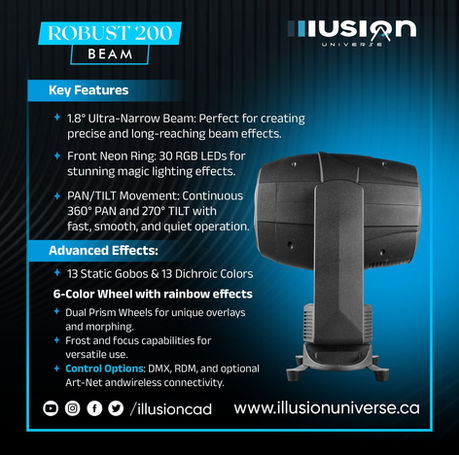

Key Features

​

  • 1.8° Ultra-Narrow Beam: Perfect for creating precise and long-reaching beam effects.

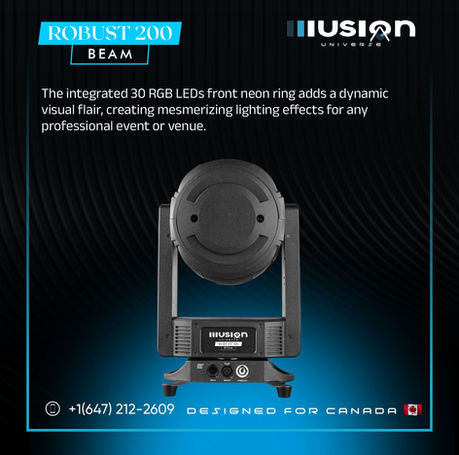

  • Front Neon Ring: 30 RGB LEDs for stunning magic lighting effects.

  • PAN/TILT Movement: Continuous 360° with fast, smooth, and quiet operation.

  • Advanced Effects:

    • 13 Static Gobos & 13 Dichroic Colors

    • 6-Color Wheel with rainbow effects

    • Dual Prism Wheels for unique overlays and morphing

    • Frost and focus capabilities for versatile use.

  • Control Options: DMX, RDM, and optional Art-Net and wireless connectivity.

​

​

Installation & Mounting

  • Omega Clamps:

    • 2 x 1/4 Turn Fastening Omega Clamps (adaptable for vertical and horizontal mounting)

  • Safety Point: 1 x Safety Attachment Point

  • Operating Positions: All (floor-standing or rigged installations)



Environmental Conditions

  • Operating Temperature: -25°C to 45°C

  • IP Rating: IP20 (Indoor use only)



Compliance & Certifications

  • CE Certification

  • LVD (2014/35/EU): Safety of electrical equipment supplied at low voltage

  • EMC (2014/30/EU): Electromagnetic Compatibility

  • RoHS (2011/65/EU): Restriction of hazardous substances

  • ​CSA Certified (Canadian Standards Association – Safety & Performance Compliance for North America)



Physical Specifications

  • Net Weight (N.W.): 13kg

  • Gross Weight (G.W.): 15kg

  • Product Dimensions: 261.8(D) × 297.9(W) × 513.7(H) mm

  • Packing Dimensions: 655(D) × 380(W) × 355(H) mm

Dimensions

ROBUST 200 BEAM

Effect

ROBUST 200 BEAM

Photometric

ROBUST 200 BEAM
ROBUST 200 BEAM Ultra-Compact, Stylish, and High-Performance Moving Head Beam Light

ROBUST 200 BEAM Ultra-Compact, Stylish, and High-Performance Moving Head Beam Light
