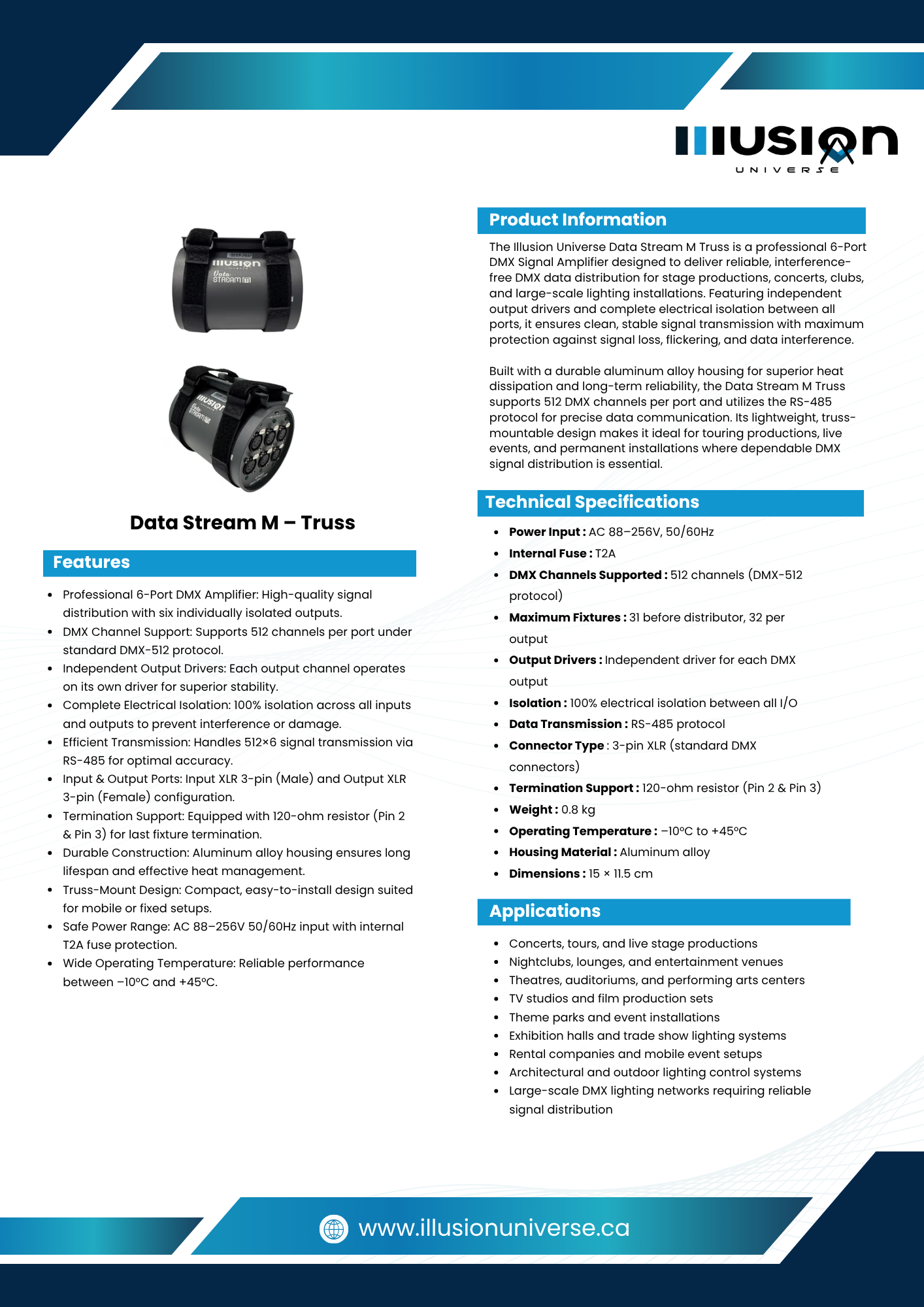

Data Stream M Truss
The Illusion Universe Data Stream M Truss is a next-generation 6-Port DMX Signal Amplifier engineered for professional lighting networks, stage setups, and large-scale entertainment environments. Designed with precision, durability, and dependability in mind, this unit ensures your DMX signals travel smoothly across every fixture — no loss, no flicker, and no interference.
Built with independent output drivers and 100% electrical isolation between all ports, the Data Stream M Truss delivers clean, stable, and protected DMX data transmission to every connected lighting fixture. Whether you’re running a complex concert rig, a nightclub installation, or a touring stage setup, this amplifier ensures maximum signal integrity and consistent output performance.
Housed in a premium-grade aluminum alloy body, it provides excellent heat dissipation, rugged protection, and long-term reliability, even under demanding conditions. With support for 512 DMX channels per port, RS-485 protocol, and six isolated output lines, the Data Stream M Truss simplifies complex wiring and improves signal stability across your entire lighting system.
Designed to mount directly onto truss structures, it offers both compact size and lightweight build — making it the perfect choice for portable rigs, live shows, and permanent installations alike. Every detail of the Data Stream M Truss reflects Illusion Universe’s commitment to performance, precision, and professional reliability.
Features
-
Professional 6-Port DMX Amplifier: High-quality signal distribution with six individually isolated outputs.
-
DMX Channel Support: Supports 512 channels per port under standard DMX-512 protocol.
-
Independent Output Drivers: Each output channel operates on its own driver for superior stability.
-
Complete Electrical Isolation: 100% isolation across all inputs and outputs to prevent interference or damage.
-
Efficient Transmission: Handles 512×6 signal transmission via RS-485 for optimal accuracy.
-
Input & Output Ports: Input XLR 3-pin (Male) and Output XLR 3-pin (Female) configuration.
-
Termination Support: Equipped with 120-ohm resistor (Pin 2 & Pin 3) for last fixture termination.
-
Durable Construction: Aluminum alloy housing ensures long lifespan and effective heat management.
-
Truss-Mount Design: Compact, easy-to-install design suited for mobile or fixed setups.
-
Safe Power Range: AC 88–256V 50/60Hz input with internal T2A fuse protection.
-
Wide Operating Temperature: Reliable performance between –10°C and +45°C.
Technical Specifications
-
Power Input : AC 88–256V, 50/60Hz
-
Internal Fuse : T2A
-
DMX Channels Supported : 512 channels (DMX-512 protocol)
-
Maximum Fixtures : 31 before distributor, 32 per output
-
Output Drivers : Independent driver for each DMX output
-
Isolation : 100% electrical isolation between all I/O
-
Data Transmission : RS-485 protocol
-
Connector Type : 3-pin XLR (standard DMX connectors)
-
Termination Support : 120-ohm resistor (Pin 2 & Pin 3)
-
Weight : 0.8 kg
-
Operating Temperature : –10°C to +45°C
-
Housing Material : Aluminum alloy
-
Dimensions : 15 × 11.5 cm
Applications
-
Concerts, tours, and live stage productions
-
Nightclubs, lounges, and entertainment venues
-
Theatres, auditoriums, and performing arts centers
-
TV studios and film production sets
-
Theme parks and event installations
-
Exhibition halls and trade show lighting systems
-
Rental companies and mobile event setups
-
Architectural and outdoor lighting control systems
-
Large-scale DMX lighting networks requiring reliable signal distribution
Why Choose Illusion Universe Data Stream M Truss
-
Stable & Reliable Signal Management – Ensures uninterrupted communication across fixtures and controllers.
-
Professional-Grade Build Quality – Designed for touring, installations, and demanding live performance setups.
-
Complete Electrical Protection – Isolated outputs and fuse safeguard prevent power or data faults.
-
Simple Setup, Powerful Results – Easy to integrate, compact to mount, and efficient to operate.
-
Built for the Professionals – The trusted choice for lighting designers, event technicians, and rental companies worldwide
Ready to Buy?
Take your DMX signal control to the next level with Illusion Universe Data Stream M Truss.
Experience clean data flow, consistent lighting synchronization, and professional-grade reliability — all in one compact and rugged device.
Upgrade your lighting system today with Illusion Universe – where performance meets precision.
