Aurora Pixar Hex-1820IP   – Technical Specifications

​

Light Source​

  • LED Type18 x 20W HEX LEDs (RGBAW+UV)

  • LED BrandHigh-intensity professional-grade

  • Total Power Output360W max

  • LED Lifetime50,000 hours (average rated life)

  • Color MixingRed, Green, Blue, White, Amber, UV

  • Refresh Rate≥ 1200Hz (flicker-free for camera use)

  • Beam Angle25°

  • Field Angle35°

  • Pixel Control18 individual controllable pixels

​

Optical System & Color Features

  • Lens Type: Tempered glass with anti-reflective coating

  • Color Macros: Yes, with custom & pre-built effects

  • Dimming: 0-100% electronic dimming, smooth linear fade

  • Dimming Curves: 4 selectable curves (Linear, Square, S-Curve, Dimmer)

  • Strobe Speed: 1-25 flashes per second

  • White Balance Correction: Yes, adjustable color temperature

  • Saturation Control: Yes

  • HSI Color Mixing Mode: Yes



Construction & Environmental Protection

  • Housing Material: Die-cast aluminum with tempered glass front panel

  • Waterproof Rating: IP65 (Dustproof & Waterproof for outdoor use)

  • Operating Temperature: -15°C to 55°C

  • Storage Temperature: -25°C to 65°C

  • Humidity Tolerance: 10% – 90% (non-condensing)

  • Shock Resistance: Vibration-tested for road-ready durability

  • Cooling SystemHybrid (Intelligent fan + passive heatsink)

​

Dimensions & Weight

  • Housing MaterialDie-cast aluminum with anti-corrosion coating

  • Finish ColorMatte black

  • Dimensions1000 x 85 x 120 mm (39.4" x 3.3" x 4.7")

  • Net Weight6.2 kg (13.7 lbs)

  • Mounting OptionsDual adjustable brackets (included)

​​

​​​​​

​

Why Choose the Aurora 7-HEX-IP?

​

Designed for professionals, the PIXBAR HEX-1820IP delivers unmatched performance with 18x20W HEX (RGBAW+UV) LEDs, pixel-mappable control, and rugged IP65-rated housing. Perfect for outdoor stages, touring rigs, and architectural lighting, it combines rich color output with reliability you can trust.

  • Full-spectrum HEX color mixing (Red, Green, Blue, White, Amber, UV)

  • Individually pixel-mappable for advanced lighting effects

  • IP65 weatherproof – ideal for outdoor use

  • Flicker-free output – suitable for broadcast and filming

  • Multiple DMX modes for flexible control

Reliable. Versatile. Creative. The PIXBAR HEX-1820IP is built to perform anywhere, anytime.

​

Ideal Applications​

🎤 Live Concerts & Festivals – High-output, immersive stage lighting
🏛 Architectural & Outdoor Lighting – Perfect for building facades, landscapes, and monuments
🎭 Theater & Film Production – Flicker-free lighting for professional broadcasting & cinema
🎧 Nightclubs & Entertainment Venues – Creates dynamic color effects
🏰 Theme Parks & Outdoor Venues – Built to withstand extreme weather conditions

​

​

See It in Action – Visit Our Showroom!

Experience the Aurora Series live at Illusion Universe! Visit our showroom for a hands-on demo and expert consultation.

​

​

​

Qurora Illusion

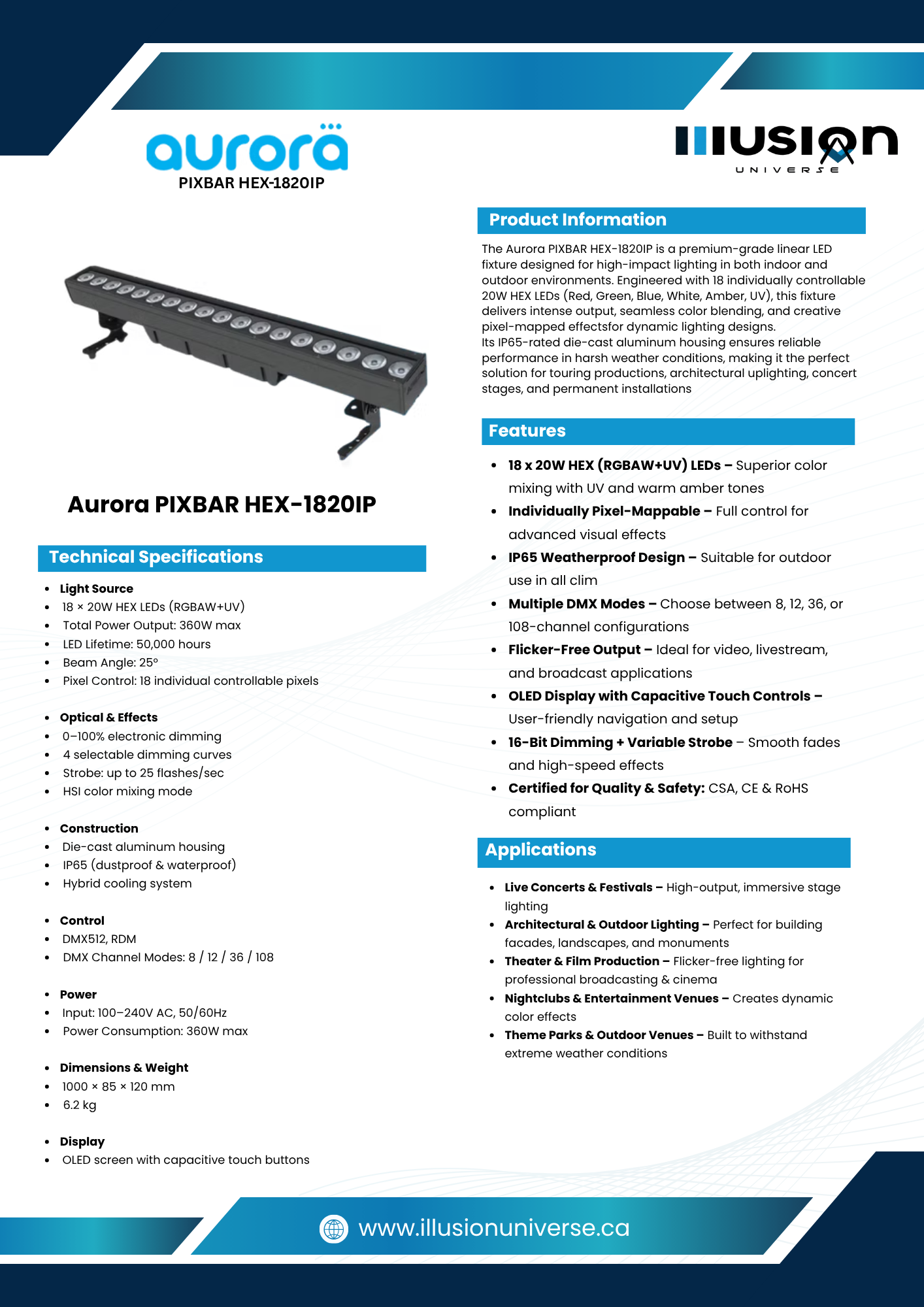

PIXBAR HEX-1820IP

UPC# : 602835339739

Premium LED Wash Fixture for Outdoor & Indoor Applications

18 x 20W HEX (RGBAW+UV) | IP65-Rated Pixel-Mappable LED Bar​



 Professional Linear LED Bar for Outdoor & Touring Applications

​

The Aurora PIXBAR HEX-1820IP is a premium-grade linear LED fixture designed for high-impact lighting in both indoor and outdoor environments. Engineered with 18 individually controllable 20W HEX LEDs (Red, Green, Blue, White, Amber, UV), this fixture delivers intense output, seamless color blending, and creative pixel-mapped effectsfor dynamic lighting designs.

Its IP65-rated die-cast aluminum housing ensures reliable performance in harsh weather conditions, making it the perfect solution for touring productions, architectural uplighting, concert stages, and permanent installations

​

Key Features:

✔ 18 x 20W HEX (RGBAW+UV) LEDs – Superior color mixing with UV and warm amber tones

✔ Individually Pixel-Mappable – Full control for advanced visual effects
✔ IP65 Weatherproof Design – Suitable for outdoor use in all clim
✔ Multiple DMX Modes – Choose between 8, 12, 36, or 108-channel configurations
✔ Flicker-Free Output – Ideal for video, livestream, and broadcast applications
✔ OLED Display with Capacitive Touch Controls – User-friendly navigation and setup
✔16-Bit Dimming + Variable Strobe – Smooth fades and high-speed effects
✔ Certified for Quality & Safety: CSA, CE & RoHS complian

​​



Control & Operation

  • Control ProtocolsDMX512, RDM

  • DMX Channel Modes8 / 12 / 36 / 108

  • DisplayOLED screen with capacitive touch buttons

  • Dimming0–100% (16-bit resolution)

  • Strobe Function1–30Hz variable speed

  • Built-in ProgramsAuto run, color fade, strobe, sound active

  • DMX Connector Type3-pin XLR or PG waterproof data ports

  • Control ModesDMX, Manual, Auto, Sound, Slave

​

Power &  Electrical;

  • Input Voltage100–240V AC, 50/60Hz (auto-ranging)

  • Power ConsumptionMax 360W

  • Power ConnectorPowerCON or PG waterproof connector

  • Power LinkingYes (Hand-in-hand via PG connectors)

  • Fuse RatingT5A / 250V

​



Compliance & Certifications

  • CE Certification

  • LVD (2014/35/EU): Safety of electrical equipment supplied at low voltage

  • EMC (2014/30/EU): Electromagnetic Compatibility

  • RoHS (2011/65/EU): Restriction of hazardous substances

  • ​CSA Certified (Canadian Standards Association – Safety & Performance Compliance for North America)

  • Safety Features: Overheat protection, auto shutdown on failure

  • Overvoltage Protection: Yes

  • Short Circuit Protection: Yes

​
