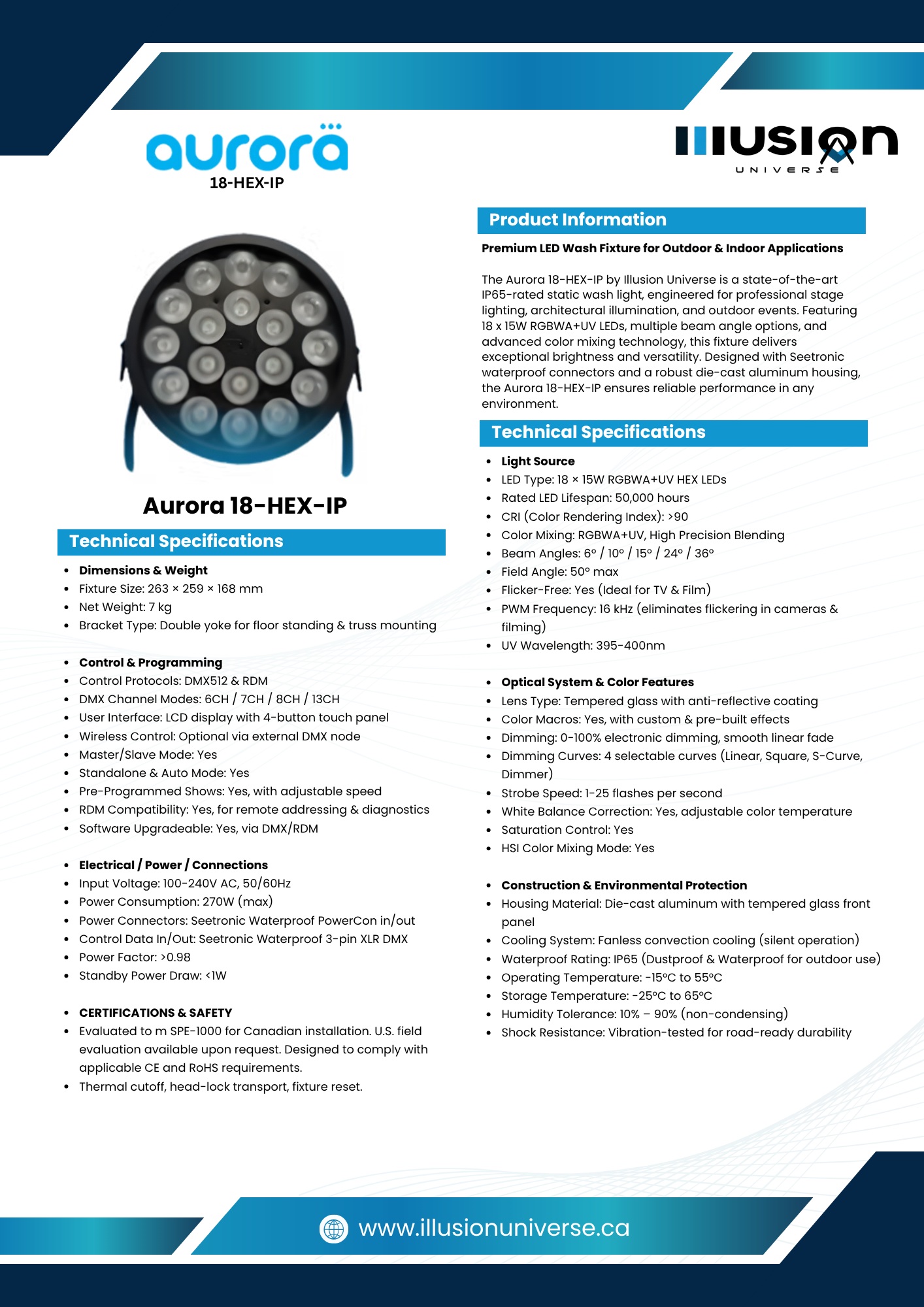

Technical Specifications

• Light Source

• LED Type: 18 × 15W RGBWA+UV HEX LEDs

• Rated LED Lifespan: 50,000 hours

• CRI (Color Rendering Index): >90

• Color Mixing: RGBWA+UV, High Precision Blending

• Beam Angles: 6º / 10º / 15º / 24º / 36º

• Field Angle: 50º max

• Flicker-Free: Yes (Ideal for TV & Film)

• PWM Frequency: 16 kHz (eliminates flickering in cameras & filming)

• UV Wavelength: 395-400nm
  ​

• Optical System & Color Features

• Lens Type: Tempered glass with anti-reflective coating

• Color Macros: Yes, with custom & pre-built effects

• Dimming: 0-100% electronic dimming, smooth linear fade

• Dimming Curves: 4 selectable curves (Linear, Square, S-Curve, Dimmer)

• Strobe Speed: 1-25 flashes per second

• White Balance Correction: Yes, adjustable color temperature

• Saturation Control: Yes

• HSI Color Mixing Mode: Yes


• Construction & Environmental Protection

• Housing Material: Die-cast aluminum with tempered glass front panel

• Cooling System: Fanless convection cooling (silent operation)

• Waterproof Rating: IP65 (Dustproof & Waterproof for outdoor use)

• Operating Temperature: -15°C to 55°C

• Storage Temperature: -25°C to 65°C

• Humidity Tolerance: 10% – 90% (non-condensing)

• Shock Resistance: Vibration-tested for road-ready durability

• Dimensions & Weight

• Fixture Size: 263 × 259 × 168 mm

• Net Weight: 7 kg

• Bracket Type: Double yoke for floor standing & truss mounting


• Control & Programming

• Control Protocols: DMX512 & RDM

• DMX Channel Modes: 6CH / 7CH / 8CH / 13CH

• User Interface: LCD display with 4-button touch panel

• Wireless Control: Optional via external DMX node

• Master/Slave Mode: Yes

• Standalone & Auto Mode: Yes

• Pre-Programmed Shows: Yes, with adjustable speed

• RDM Compatibility: Yes, for remote addressing & diagnostics

• Software Upgradeable: Yes, via DMX/RDM


• Electrical / Power / Connections

• Input Voltage: 100-240V AC, 50/60Hz

• Power Consumption: 270W (max)

• Power Connectors: Seetronic Waterproof PowerCon in/out

• Control Data In/Out: Seetronic Waterproof 3-pin XLR DMX

• Power Factor: >0.98

• Standby Power Draw: <1W


• CERTIFICATIONS & SAFETY

• Evaluated to m SPE-1000 for Canadian installation. U.S. field evaluation available upon request. Designed to comply with applicable CE and RoHS requirements.

• Thermal cutoff, head-lock transport, fixture reset.

Why Choose Aurora 18-HEX-IP?

​

✅ Designed for Professional Use – Ideal for concerts, live shows, and installations
✅ Superior Color Accuracy – High CRI (>90) & HEX RGBWA+UV technology
✅ Weatherproof & Durable – IP65-rated housing withstands rain, dust, and extreme conditions
✅ Silent Operation – Fanless cooling system for noise-sensitive environments
✅ Energy-Efficient & Reliable – 50,000-hour LED lifespan with low power draw


Ideal Applications


Live Concerts & Festivals – High-output, immersive stage lighting
Architectural & Outdoor Lighting – Perfect for building facades, landscapes, and monuments
Theater & Film Production – Flicker-free lighting for professional broadcasting & cinema
Nightclubs & Entertainment Venues – Creates dynamic color effects
Theme Parks & Outdoor Venues – Built to withstand extreme weather conditions

​

See It in Action – Visit Our Showroom!

Experience the Aurora HEX Series live at Illusion Universe! Visit our showroom for a hands-on demo and expert consultation.
