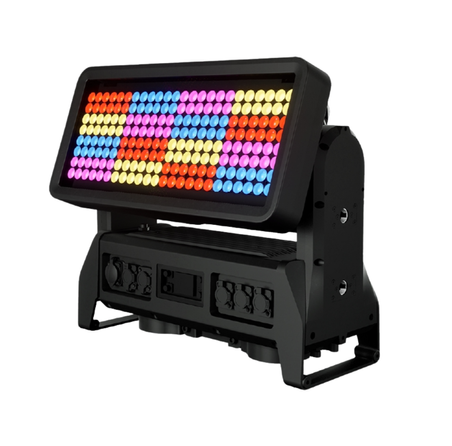

The Vivid V8 is a high-performance full-color LED wash and spot fixture engineered for large-scale productions, live events, concerts, touring applications, architectural lighting, and broadcast environments. Designed with advanced RGBW LED technology, the fixture delivers exceptional brightness, rich color rendering, and smooth dimming performance while maintaining reliable operation in demanding indoor and outdoor conditions.


Built with a robust IP65-rated housing and precision optics, the Vivid V8 combines powerful illumination with versatile creative control. Its compact yet durable design makes it ideal for production companies, rental inventories, festivals, stage performances, corporate events, and permanent installations where performance, durability, and visual impact are essential.


Engineered for professionals who demand both performance and reliability, the Vivid V8 offers advanced control capabilities, seamless color consistency, and superior operational efficiency for modern lighting productions. From dynamic stage washes and immersive visual effects to architectural highlights and outdoor event illumination, the fixture delivers exceptional versatility with precision output. Its weather-resistant construction, long-life LED source, and professional-grade connectivity ensure dependable performance across touring, rental, and permanent installation environments, making it a trusted solution for high-impact lighting applications worldwide.

Features



  • High-output RGBW LED engine with exceptional color mixing

  • Powerful luminous flux for large-scale event coverage

  • Precision 23° beam angle for concentrated wash and spot effects

  • Smooth 16-bit electronic dimming with multiple dimming curves

  • Flicker-free performance suitable for broadcast and live productions

  • Advanced DMX and RDM control compatibility

  • IP65-rated construction for indoor and outdoor applications

  • Silent temperature-controlled cooling system

  • Electronic strobe and dynamic lighting effects

  • Durable die-cast magnesium aluminum housing

  • Professional-grade Seetronic IP65 power and signal connections

  • Compact and lightweight design for easy rigging and transportation

  • Long-life LED source with up to 50,000 operational hours

  • Instagram
  • Facebook
  • YouTube
  • TikTok
Featues
gallery

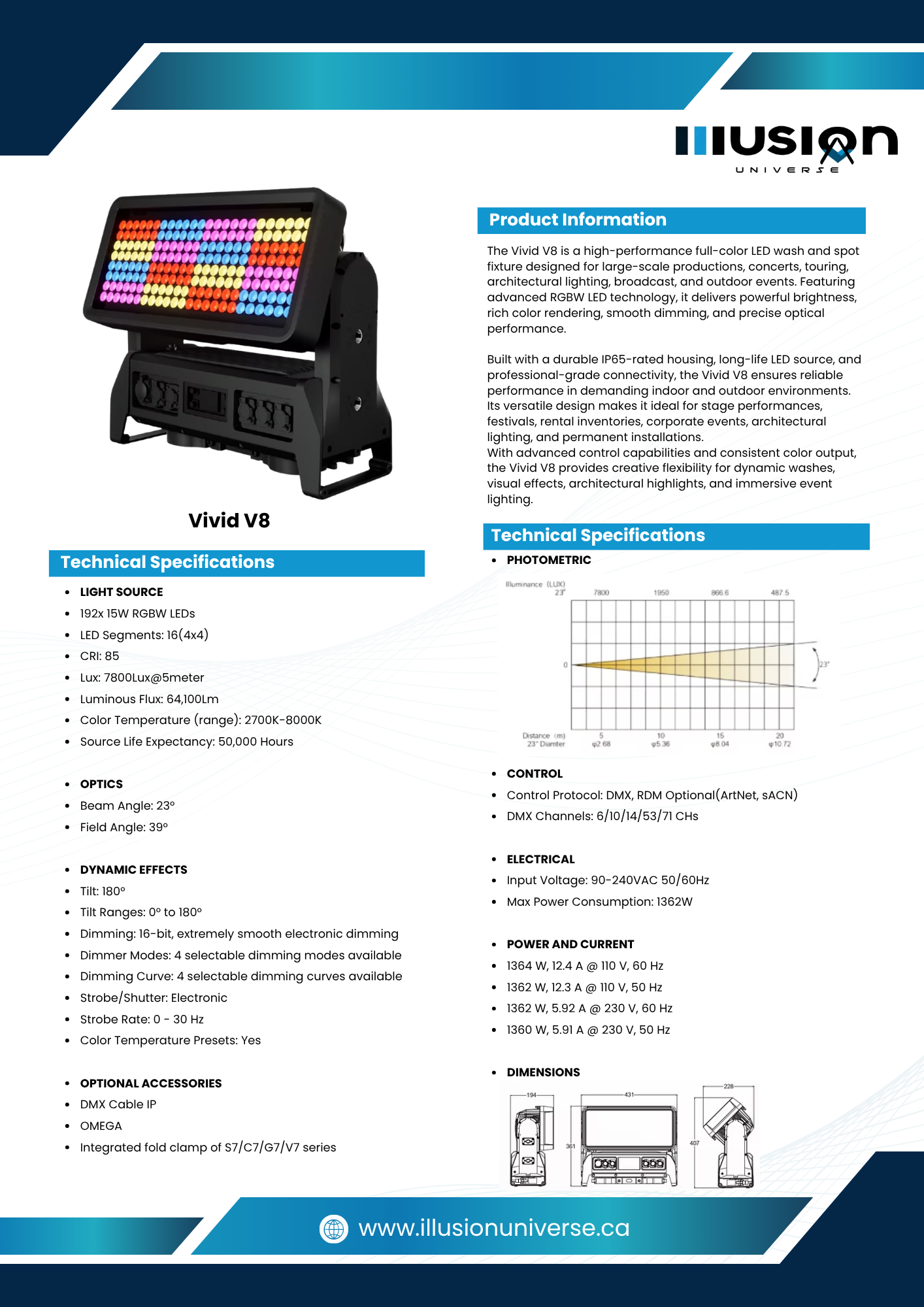

Technical Specifications

TS



  • LIGHT SOURCE

  • 192x 15W RGBW LEDs

  • LED Segments: 16(4x4)

  • CRI: 85

  • Lux: 7800Lux@5meter

  • Luminous Flux: 64,100Lm

  • Color Temperature (range): 2700K-8000K

  • Source Life Expectancy: 50,000 Hours


  • OPTICS

  • Beam Angle: 23°

  • Field Angle: 39°


  • DYNAMIC EFFECTS

  • Tilt: 180°

  • Tilt Ranges: 0° to 180°

  • Dimming: 16-bit, extremely smooth electronic dimming

  • Dimmer Modes: 4 selectable dimming modes available

  • Dimming Curve: 4 selectable dimming curves available

  • Strobe/Shutter: Electronic

  • Strobe Rate: 0 - 30 Hz

  • Color Temperature Presets: Yes


  • OPTIONAL ACCESSORIES

  • DMX Cable IP

  • OMEGA

  • Integrated fold clamp of S7/C7/G7/V7 series


  • Photometric








  • CONTROL

  • Control Protocol: DMX, RDM Optional(ArtNet, sACN)

  • DMX Channels: 6/10/14/53/71 CHs

  • Firmware Upgrade: DMX USB-C


  • CONNECTIONS

  • Power Connection: Seetronic powerCON TRUE In/Out IP65

  • Signal Connection: Seetronic 3/5-pin XLR In/Out IP65

  • Firmware Connection: USB-C


  • ELECTRICAL

  • Input Voltage: 90-240VAC 50/60Hz

  • Max Power Consumption: 1362W


  • POWER AND CURRENT

  • 1364 W, 12.4 A @ 110 V, 60 Hz

  • 1362 W, 12.3 A @ 110 V, 50 Hz

  • 1362 W, 5.92 A @ 230 V, 60 Hz

  • 1360 W, 5.91 A @ 230 V, 50 Hz


  • PHYSICAL

  • Housing Material: Die-cast magnesium aluminum, black

  • Cooling: Temp controlled, noiseless fan for forced air

  • Temperature (Ambient): 4°F to 113°F (-20°C to +45°C)

  • Dimensions: 431x194x361mm

  • Weight: 13.1kgs

  • IP Rating: IP65


  • DIMENSIONS

  • Width: 431mm

  • Depth: 194mm

  • Height: 361mm

  • Side Depth: 228mm

  • Side Height: 407mm









Applications

The Vivid V8 is designed for a wide range of professional lighting environments, including:


  • Concerts and live music productions

  • Touring and festival stages

  • Corporate events and conferences

  • Television and broadcast studios

  • Architectural and façade lighting

  • Weddings and luxury events

  • Theatre and performing arts productions

  • Outdoor entertainment venues

  • Rental and production companies

  • Nightclubs and immersive entertainment spaces


Why Choose Vivid V8

​

The Vivid V8 delivers the perfect balance of power, durability, versatility, and creative performance for modern lighting professionals. Its high-output RGBW LED system produces vibrant colors and intense illumination while maintaining smooth fades and precise dimming control.

With its weather-resistant IP65 construction, the fixture is built to perform reliably in challenging outdoor environments without compromising output quality. The advanced control options, professional connectivity, and rugged design make the Vivid V8 an ideal solution for production companies and lighting designers seeking dependable performance for demanding applications.
Whether used for dynamic stage lighting, architectural enhancement, or immersive event experiences, the Vivid V8 provides consistent professional results with exceptional visual impact.
