VIVID V7 — Full-Color LED Strobe Light

The VIVID V7 is a professional full-color LED strobe light designed to deliver exceptional brightness, powerful strobe effects, and dynamic visual performance for demanding entertainment and installation environments. With a luminous flux of up to 108,000 lumens, the VIVID V7 combines high-output RGB illumination with dedicated cool-white strobe tubes to create intense, visually striking effects.


Featuring 784 × 1.5W RGB LEDs across 14 segments and 392 × 2W cool-white LEDs across 28 segments, the VIVID V7 provides a versatile combination of full-color effects and powerful white strobe output. Its wide 117° field angle helps produce broad washes of light, while 16-bit electronic dimming enables exceptionally smooth transitions.


Built for professional applications, the VIVID V7 supports DMX, Art-Net, and sACN control, with RDM available as an option. Its IP65-rated construction, compact form factor, and temperature-controlled cooling system make it suitable for concerts, festivals, touring productions, events, and permanent installations.

Key Features of VIVID V7



  • 108,000-Lumen High Output: The VIVID V7 delivers up to 108,000 lumens, providing the intense output required for large-scale stages, concerts, live productions, and event environments.

  • Full-Color RGB Performance: Its 784 × 1.5W RGB LEDs provide full-color-spectrum capabilities, allowing lighting designers to create vibrant colors and dynamic visual effects.

  • Powerful Strobe Effects: Dedicated 392 × 2W cool-white LEDs deliver high-impact strobe effects with a variable strobe rate of 0–30 Hz.

  • Smooth 16-Bit Dimming: Advanced 16-bit electronic dimming provides smooth brightness transitions and precise control, with four selectable dimming curves.

  • Wide 117° Field Angle: The wide 117° field angle allows the VIVID V7 to cover a broad area, making it effective for both large stages and immersive lighting environments.

  • IP65 Protection: With an IP65 rating, the fixture is designed to provide protection against dust and water, making it suitable for demanding indoor and outdoor applications.

  • Professional Network & DMX Control: The VIVID V7 supports DMX, Art-Net, and sACN, providing flexible integration with professional lighting control systems.

  • Compact and Lightweight Design: Despite its high output and powerful LED configuration, the fixture weighs approximately 13.1 kg, offering a practical solution for professional touring and installation environments.

  • Instagram
  • Facebook
  • YouTube
  • TikTok
Featues
gallery

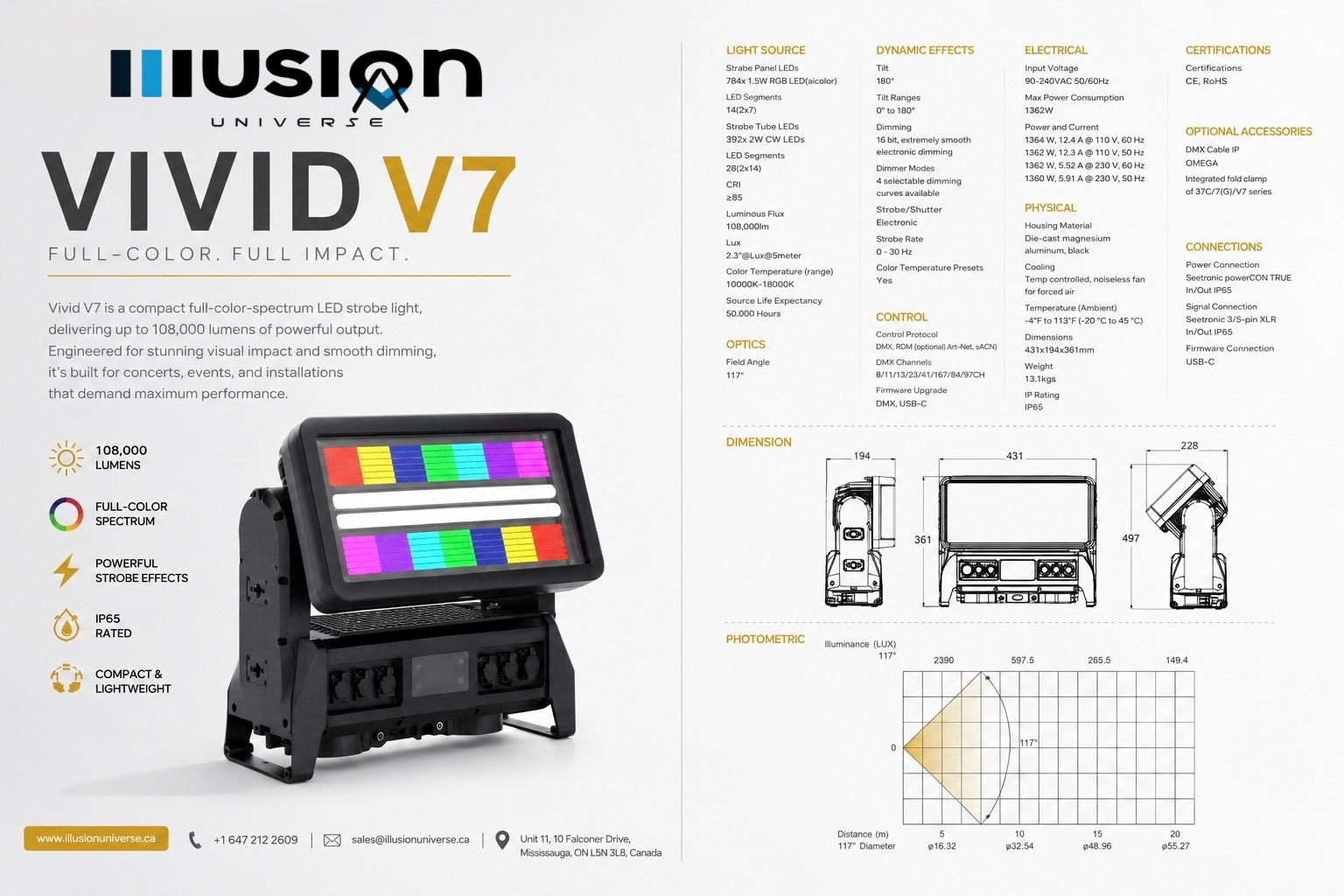

Technical Specifications

TS

Light Source

  • Strobe Panel LEDs: 784 × 1.5W RGB LED

  • LED Segments: 14 (2 × 7)

  • Strobe Tube LEDs: 392 × 2W CW LEDs

  • LED Segments: 28 (2 × 14)

  • CRI: ≥85

  • Luminous Flux: 108,000 lm

  • Lux: 2.3° @ Lux @ 5 meter

  • Color Temperature Range: 10,000K–18,000K

  • Color Temperature Presets: Yes

  • Source Life Expectancy: 50,000 hours

Designed for High-Impact Lighting Applications


The VIVID V7 is designed for professional lighting environments where brightness, color versatility, and dynamic effects are essential.


Concerts & Live Performances: Create powerful strobe effects, vibrant colors, and high-impact lighting moments for live performances.

Festivals & Large Events: Its high output and wide field angle make the VIVID V7 suitable for large-scale entertainment and event productions.

Stage & Theatre Productions: Precise dimming, color control, and dynamic effects provide lighting designers with extensive creative possibilities.

Clubs & Entertainment Venues: Use full-color RGB effects and high-speed strobing to create energetic and immersive lighting environments.

Outdoor Events & Installations: The IP65-rated housing provides added protection for demanding outdoor applications.

Permanent Installations: Its network-control capabilities and professional connectivity make it suitable for fixed entertainment and architectural installations.


Why Choose VIVID V7?

​

The VIVID V7 full-color LED strobe light brings together high output, RGB color performance, dedicated white strobe LEDs, smooth dimming, and professional control options in a compact fixture.

With 108,000 lumens, a 117° field angle, 0–30 Hz strobe rate, 16-bit dimming, and IP65 protection, it is built to handle demanding professional lighting applications. Support for DMX, Art-Net, and sACN also allows the fixture to integrate into modern lighting control networks.


For lighting designers, production companies, rental houses, event professionals, and installation teams looking for a versatile high-output strobe solution, the VIVID V7 offers the combination of power, flexibility, durability, and creative control required for professional productions.

Applications
why choose

Optics

  • Field Angle: 117°

Dynamic Effects

  • Tilt: 180°

  • Tilt Range: 0°–180°

  • Dimming: 16-bit electronic dimming

  • Dimmer Modes: 4 selectable dimming curves

  • Strobe/Shutter: Electronic

  • Strobe Rate: 0–30 Hz

Control

  • Control Protocol: DMX, RDM (optional), Art-Net, sACN

  • DMX Channels: 8 / 11 / 13 / 23 / 41 / 167 / 84 / 97CH

  • Firmware Upgrade: DMX, USB-C

Physical

  • Housing Material: Die-cast magnesium/aluminum, black

  • Cooling: Temperature-controlled, noiseless forced-air fan

  • Ambient Temperature: -4°F to 113°F (-20°C to 45°C)

  • Dimensions: 431 × 194 × 361 mm

  • Weight: 13.1 kg

  • IP Rating: IP65

Connections

  • Power Connection: Seetronic powerCON TRUE In/Out, IP65

  • Signal Connection: Seetronic 3/5-pin XLR In/Out, IP65

  • Firmware Connection: USB-C

Optional Accessories

  • DMX Cable IP

  • OMEGA

  • Integrated fold clamp for 37C/71G/V7 series

Certifications

  • CE

  • RoHS

Photometric

Dimensions

​Frequently Asked Questions (FAQs)


1. What is the VIVID V7?

The VIVID V7 is a professional full-color LED strobe light featuring RGB LED panels and dedicated cool-white strobe tube LEDs. It is designed for concerts, events, stage productions, entertainment venues, and professional installations.

​

2. How bright is the VIVID V7?

The VIVID V7 provides a maximum luminous flux of 108,000 lumens, delivering powerful output for professional stage and event lighting applications.

​

3. Is the VIVID V7 suitable for outdoor use?

Yes. The VIVID V7 has an IP65 rating, providing protection against dust and water and making it suitable for demanding outdoor events and installations.

​

4. What control protocols does the VIVID V7 support?

The VIVID V7 supports DMX, Art-Net, and sACN, with RDM available as an optional feature. It also provides USB-C connectivity for firmware upgrades.

​

5. What is the strobe rate of the VIVID V7?

The VIVID V7 offers an electronic strobe rate of 0–30 Hz, allowing lighting designers to create a wide range of dynamic strobe effects.
