The Video Bar 360 Degree (Model: CL-T100W) is a high-performance pixel LED video lighting bar designed for dynamic lighting effects in stage productions, events, architectural installations, and creative visual displays. Built with 144 high-brightness 5050 RGB LEDs and 24 individually controllable pixels, this fixture delivers vibrant colors, smooth dimming, and stunning 360-degree illumination.
Designed for both indoor and outdoor environments, the Video Bar features an IP65 waterproof rating, ensuring reliable performance even in challenging conditions such as rain, dust, and outdoor events. With a DC24V working voltage, stable power consumption, and robust construction, the fixture provides consistent brightness and long operational life.
Its 360-degree beam angle allows light to spread evenly in all directions, creating immersive visual effects. Whether used for media façades, stage backdrops, club lighting, or architectural decoration, the Video Bar 360 Degree offers flexible installation options with multiple length variations and pixel configurations to suit different project requirements.
Features
-
360° Lighting Coverage: The unique cylindrical design delivers a full 360-degree beam angle, ensuring uniform light distribution and immersive visual effects.
-
High-Density LED Configuration: Equipped with 144 high-brightness 5050 RGB LEDs, providing rich color mixing and vibrant illumination.
-
Pixel Mapping Capability: With 24 individually controllable pixels, the fixture supports advanced pixel mapping and dynamic lighting effects.
-
Multiple Size Options: Available in various length configurations, allowing designers to customize installations based on project requirements.
-
Weatherproof Construction: The IP65-rated housing protects against dust and water, making it suitable for both indoor and outdoor applications.
-
Energy Efficient Operation: Operating at DC24V with a maximum power of 24–25W, the fixture provides powerful illumination while maintaining efficient energy consumption.
-
Smooth Dimming & Color Control: 256 grey scale levels ensure smooth dimming transitions and precise color rendering.
Technical Specifications
-
Model: CL-T100W
-
Working Voltage: DC24V
-
Max Power: 24W – 25W
-
LED Type: 5050 RGB
-
LED Quantity: 144 LEDs
-
Pixels: 24 Pixels
-
Channel: RGB
-
Grey Scale: 256
-
Beam Angle: 360°
-
Diameter: 40 mm
-
Length: 1 m (Multiple sizes available)
-
Waterproof Rating: IP65
-
Weight: 0.53 kg
-
Size: L=520/600/680/760/840/920/1000/1080/1160/1240/1320/1400/1480/1560/1640/1720/1800/1880/1960/2040
-
Pixel =12/14/16/18/20/22/24/26/28/30/32/34/36/38/40/42/44/46/48/50
360° LED Tube Design & Build
1m 360 Degree LED Tube Dimensions
360 degree beam angle without dark area

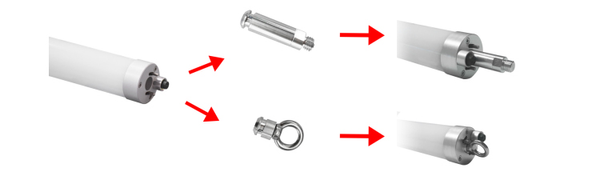

The parts at both ends of the led tube can be detached and installed;

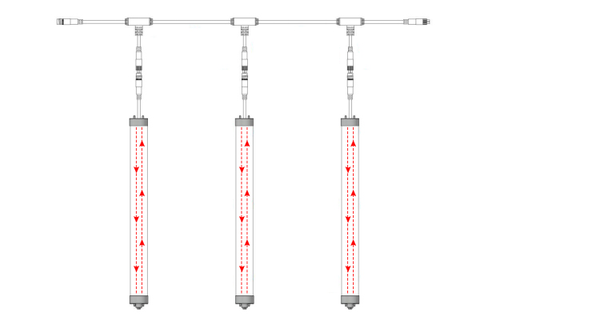

LED tube can be connected in series end by end, the male connector is input and female connectories output
Signal foldback, can be connected in series with T-cable;
Installation methods

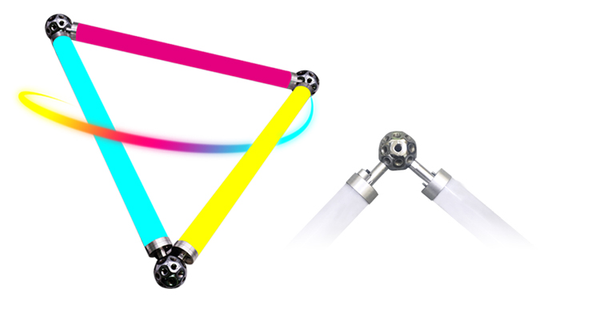

Hole ball installation
Hole ball connection, the two ends of the 360 degree led tube are inserted into the hole ball with connecting rods, which can build a variety of three-dimensional shapes
Hanging ring installation
Hang 360 degree led tube with ring.
Floor stand installation
Make led tube stand up on floor with floor stand.
Connection and control way

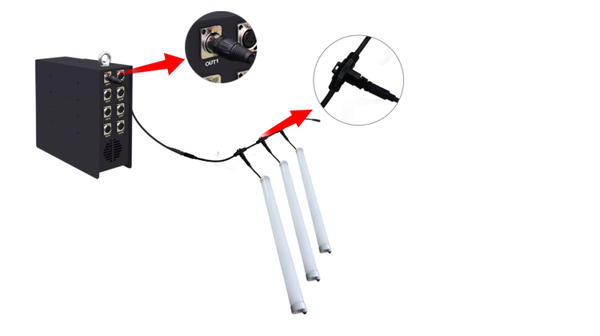

Connect led tube with controller
Connect the XLR cable with controller. Connect the output cable of XLR cable with input cable of led tube( male connector is input, female connector is output)
Connect led tube with T -cable, and the rotation is locked to prevent accidents from falling off.
Connect controller with software
Connect controller with computer with Ethernet Cable.

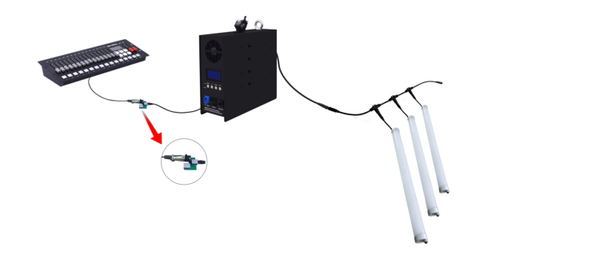

Connect controller with console
Connect controller with console with transfer board.
What are the Applications of Video Bar 360 Degree?
The Video Bar 360 Degree is ideal for a wide range of professional lighting applications:
-
Stage and concert lighting
-
Nightclubs and DJ setups
-
Event and wedding productions
-
Architectural façade lighting
-
Media walls and LED installations
-
TV studios and entertainment venues
-
Theme parks and decorative lighting projects
Why Choose Video Bar 360 Degree?
-
Professional Performance: Designed for high-impact visual environments with powerful LEDs and smooth pixel control.
-
Durable & Weather Resistant: IP65 construction ensures reliability for outdoor installations and touring applications.
-
Flexible Installation: Multiple size options and lightweight design make installation simple and versatile.
-
Advanced Lighting Effects: Supports pixel mapping and dynamic RGB lighting effects for creative visual designs.
-
Energy Efficient Design: Low power consumption with high brightness ensures cost-effective operation.
Related Product
Frequently Asked Questions (FAQs)
1. What is the Video Bar 360 Degree?
The Video Bar 1000 is a professional LED pixel bar designed for stage lighting, events, architectural installations, concerts, DJ booths, exhibitions, and creative visual effects.
2. Is the Video Bar 360 Degree suitable for outdoor use?
Yes. The Video Bar 360 Degree has an IP65 waterproof rating, making it suitable for outdoor installations and events where protection against dust and water is required.
3. How many LEDs and pixels does the Video Bar 360 Degree have?
The Video Bar 360 Degree features 144 5050 RGB LEDs and 24 individually controllable pixels, allowing dynamic RGB lighting effects and advanced pixel mapping.
4. What is the beam angle of the Video Bar 360 Degree?
The Video Bar 360 Degree has a 360° beam angle, allowing light to spread evenly in all directions and creating immersive visual effects for stages, architectural lighting and entertainment environments.
5. What are the applications of the Video Bar 360 Degree?
The Video Bar 360 Degree can be used for stage and concert lighting, nightclubs, DJ setups, weddings and events, architectural façades, media walls, TV studios, entertainment venues and theme parks.
