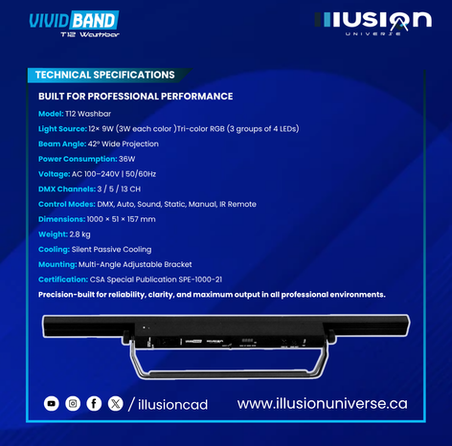

Technical Specification

​

Light Source : 12× 3W Tri-color RGB (3 groups of 4 LEDs)

Beam Angle : 42°

Power Consumption : 36W

Voltage : AC 100–240V, 50/60Hz

Dimensions : 1000 × 51 × 157 mm

Weight : 2.8 kg

DMX Channels : 3 / 5 / 13 CH

Control Modes : DMX, Auto, Sound, Static, Manual, IR Remote

Housing : Durable Metal

Cooling : Passive

Mounting : Multi-angle bracket

Usage : Indoor

Certification: CSA Special Publication SPE-1000-21

Applications


The T12 Washbar is ideal for both installation and portable use in a wide variety of environments:
​

  • Stage Lighting

  • Concerts & Touring

  • Mobile DJs

  • Wedding & Event Production

  • Bars, Lounges & Clubs

  • House of Worship

  • Theatres & Performance Venues

  • Studio & Streaming Background Lighting

  • Architectural Wall Washing

  • Ambient & Decorative Lighting

    From soft atmospheric glow to fast, music-driven chase effects — the T12 can elevate any environment.

Ready to Buy?

​

Upgrade your lighting rig with the vibrant, multi-zone performance of the Illusion Universe T12 Washbar.
Whether you’re designing immersive stages or adding creative ambience to your venue, the T12 offers professional-grade output, flexible control, and unbeatable value.


Our team can help with pricing, availability, and system recommendations.

​

Bring color, motion, and atmosphere to your world — the T12 Washbar is ready.

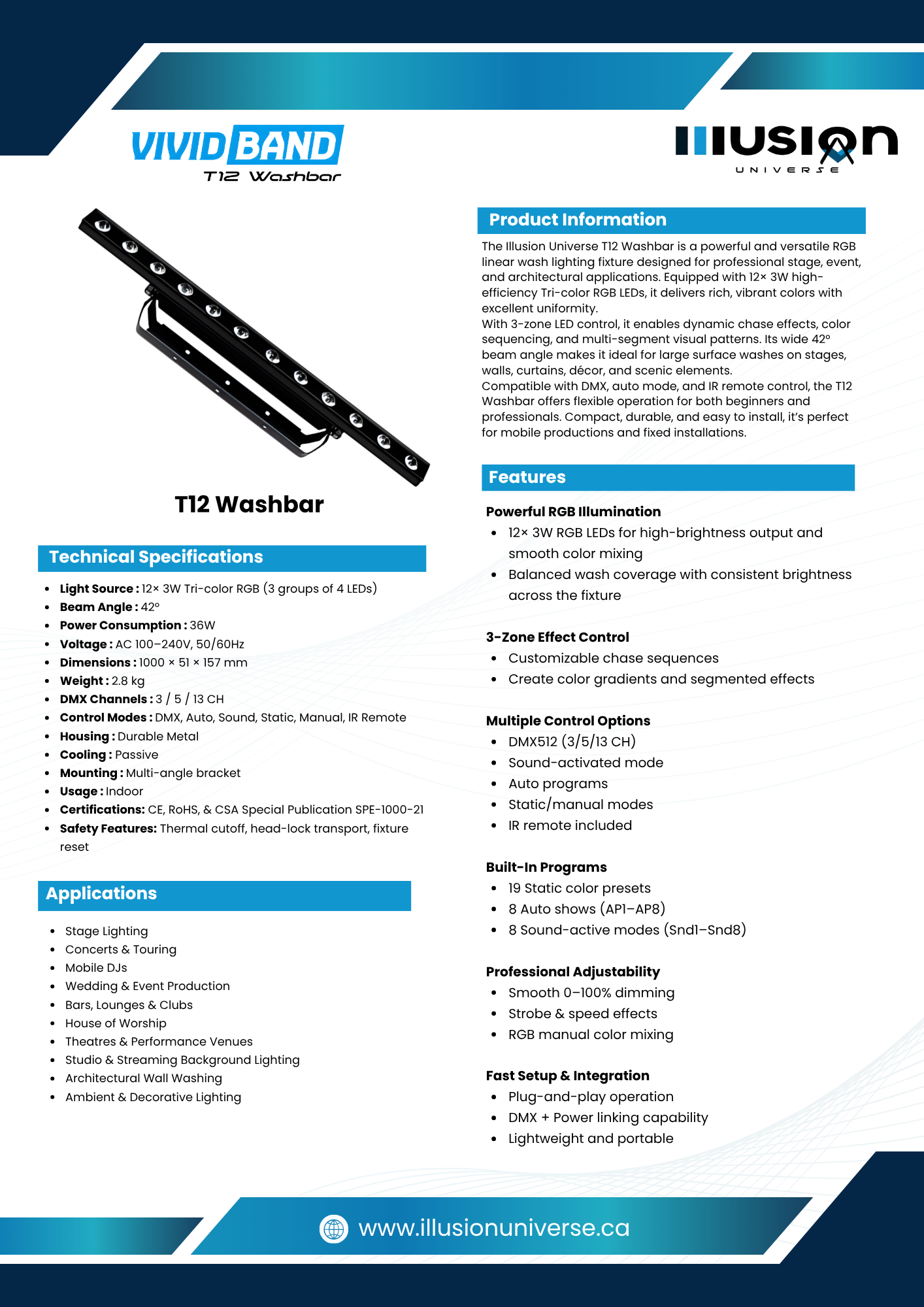

T12 WASHBAR – ADVANCED RGB LINEAR WASH BAR

​

The Illusion Universe T12 Washbar is a powerful and versatile RGB linear wash lighting fixture designed for professional stage, event, and architectural lighting applications. Equipped with 12× 3W high-efficiency Tri-color RGB LEDs, it delivers rich, vibrant colors with exceptional uniformity.

​

With 3-zone LED control, the T12 Washbar enables dynamic chase effects, color sequencing, and multi-segment visual patterns that transform any space into a stunning visual environment. Its wide 42° beam angle makes it ideal for large surface washes on stages, walls, curtains, décor, and scenic elements.

​

Whether used in DMX setups, automatic show mode, or with convenient IR remote control, the T12 Washbar offers flexible operation suitable for beginners and professionals alike. Compact, durable, and easy to install, it’s perfect for mobile productions, fixed installations, and creative lighting designs.



Features


🔹 Powerful RGB Illumination

  • 12× 3W RGB LEDs for high-brightness output and smooth color mixing

  • Balanced wash coverage with consistent brightness across the fixture


🔹 3-Zone Effect Control

  • Customizable chase sequences

  • Create color gradients and segmented effects


🔹 Multiple Control Options

  • DMX512 (3/5/13 CH)

  • Sound-activated mode

  • Auto programs

  • Static/manual modes

  • IR remote included


🔹 Built-In Programs

  • 19 Static color presets

  • 8 Auto shows (AP1–AP8)

  • 8 Sound-active modes (Snd1–Snd8)


🔹 Professional Adjustability

  • Smooth 0–100% dimming

  • Strobe & speed effects

  • RGB manual color mixing


🔹 Fast Setup & Integration

  • Plug-and-play operation

  • DMX + Power linking capability

  • Lightweight and portable


🔹 Silent & Durable Construction

  • Passive cooling for silent operation

  • Solid metal housing — road-ready & reliable

Why Choose T12 Washbar?

​

✔ Professional performance at an accessible price
✔ Exceptionally bright RGB wash with smooth mixing
✔ Flexible control — DMX, Auto, Sound, IR
✔ 3-zone control for creative multi-segment effects
✔ Lightweight, compact & easy to deploy
✔ Suitable for permanent install or mobile use
✔ Silent operation — ideal for quiet environments
✔ Durable build — designed for demanding road use


The T12 Washbar is built for professionals who demand reliability, flexibility, and performance in every scenario
