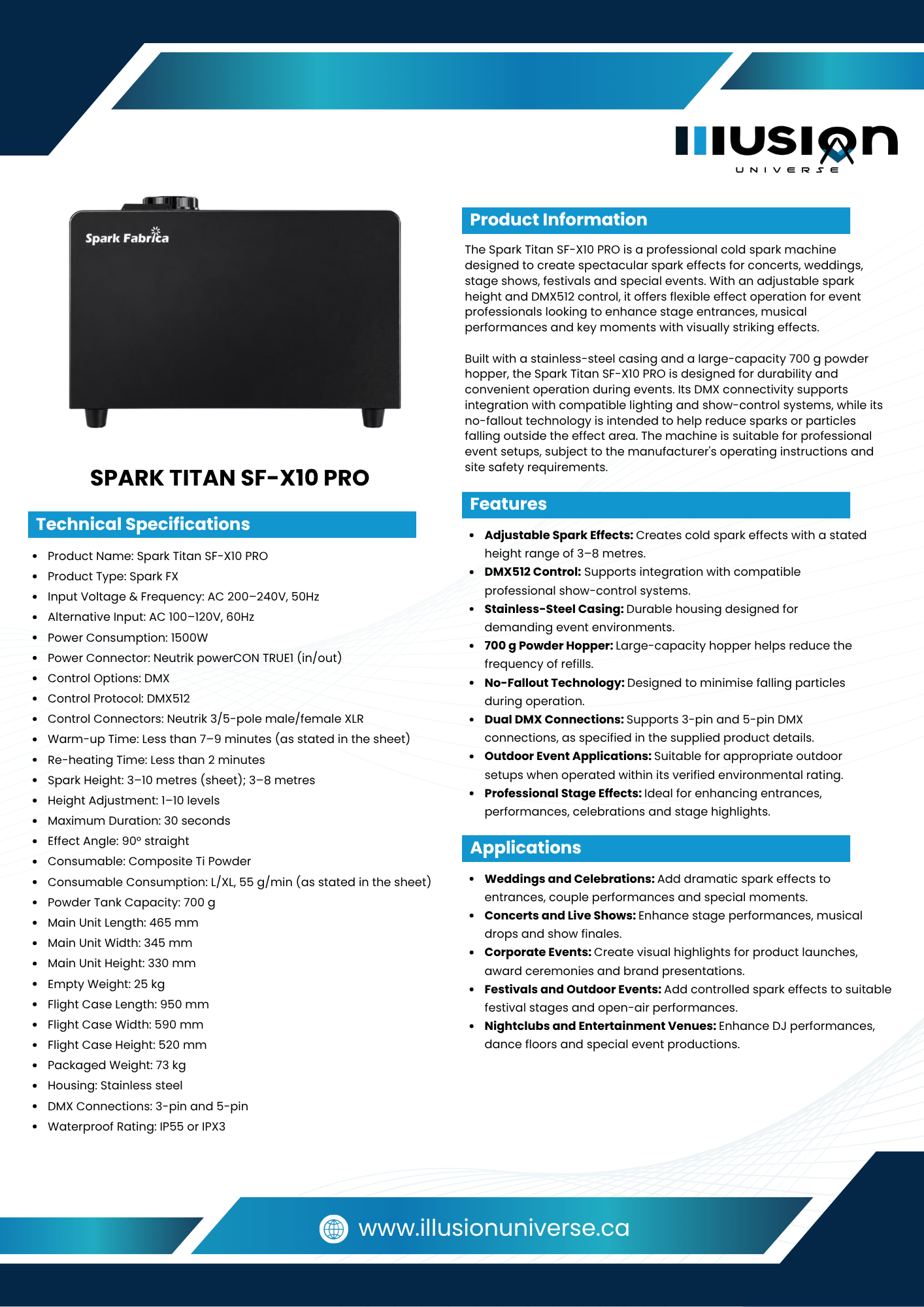

Spark Titan SF-X10 PRO
The Spark Titan SF-X10 PRO is a professional cold spark machine designed to create spectacular spark effects for concerts, weddings, stage shows, festivals and special events. With an adjustable spark height and DMX512 control, it offers flexible effect operation for event professionals looking to enhance stage entrances, musical performances and key moments with visually striking effects.
Built with a stainless-steel casing and a large-capacity 700 g powder hopper, the Spark Titan SF-X10 PRO is designed for durability and convenient operation during events. Its DMX connectivity supports integration with compatible lighting and show-control systems, while its no-fallout technology is intended to help reduce sparks or particles falling outside the effect area. The machine is suitable for professional event setups, subject to the manufacturer's operating instructions and site safety requirements.
Features
-
Adjustable Spark Effects: Creates cold spark effects with a stated height range of 3–8 metres.
-
DMX512 Control: Supports integration with compatible professional show-control systems.
-
Stainless-Steel Casing: Durable housing designed for demanding event environments.
-
700 g Powder Hopper: Large-capacity hopper helps reduce the frequency of refills.
-
No-Fallout Technology: Designed to minimise falling particles during operation.
-
Dual DMX Connections: Supports 3-pin and 5-pin DMX connections, as specified in the supplied product details.
-
Outdoor Event Applications: Suitable for appropriate outdoor setups when operated within its verified environmental rating.
-
Professional Stage Effects: Ideal for enhancing entrances, performances, celebrations and stage highlights.
What are the Technical Specifications of Spark Titan SF-X10 PRO?
-
Product Name: Spark Titan SF-X10 PRO
-
Product Type: Spark FX
-
Input Voltage & Frequency: AC 200–240V, 50Hz
-
Alternative Input: AC 100–120V, 60Hz
-
Power Consumption: 1500W
-
Power Connector: Neutrik powerCON TRUE1 (in/out)
-
Control Options: DMX
-
Control Protocol: DMX512
-
Control Connectors: Neutrik 3/5-pole male/female XLR
-
Warm-up Time: Less than 7–9 minutes (as stated in the sheet)
-
Re-heating Time: Less than 2 minutes
-
Spark Height: 3–10 metres (sheet); 3–8 metres (provided description)
-
Height Adjustment: 1–10 levels
-
Maximum Duration: 30 seconds
-
Effect Angle: 90° straight
-
Consumable: Composite Ti Powder
-
Consumable Consumption: L/XL, 55 g/min (as stated in the sheet)
-
Powder Tank Capacity: 700 g
-
Main Unit Length: 465 mm
-
Main Unit Width: 345 mm
-
Main Unit Height: 330 mm
-
Empty Weight: 25 kg
-
Flight Case Length: 950 mm
-
Flight Case Width: 590 mm
-
Flight Case Height: 520 mm
-
Packaged Weight: 73 kg
-
Housing: Stainless steel (provided description)
-
DMX Connections: 3-pin and 5-pin (provided description)
-
Waterproof Rating: IP55 or IPX3
Applications
-
Weddings and Celebrations: Add dramatic spark effects to entrances, couple performances and special moments.
-
Concerts and Live Shows: Enhance stage performances, musical drops and show finales.
-
Corporate Events: Create visual highlights for product launches, award ceremonies and brand presentations.
-
Festivals and Outdoor Events: Add controlled spark effects to suitable festival stages and open-air performances.
-
Nightclubs and Entertainment Venues: Enhance DJ performances, dance floors and special event productions.
Frequently Asked Questions (FAQs)
Q1. What is the Spark Titan SF-X10 PRO?
The Spark Titan SF-X10 PRO is a professional cold spark machine designed to create decorative spark effects for stage shows, weddings, concerts and special events.
Q2. What is the spark height of the Spark Titan SF-X10 PRO?
The supplied product description states a spark height of 3–8 metres, while the technical sheet lists 3–10 metres. Please confirm the correct operating range for this model.
Q3. Does the Spark Titan SF-X10 PRO support DMX control?
Yes. The supplied details specify DMX512 control for integration with compatible professional lighting and show-control systems.
Q4. What is the powder tank capacity of the Spark Titan SF-X10 PRO?
The supplied technical sheet lists a 700 g powder tank capacity, which can help reduce refill frequency during event operations.
Q5. Is the Spark Titan SF-X10 PRO waterproof?
The supplied information mentions IP55 ratings. These ratings differ, so the exact rating must be confirmed with the manufacturer before determining its suitability for wet or rainy conditions. Always follow the manufacturer's operating and safety instructions.
