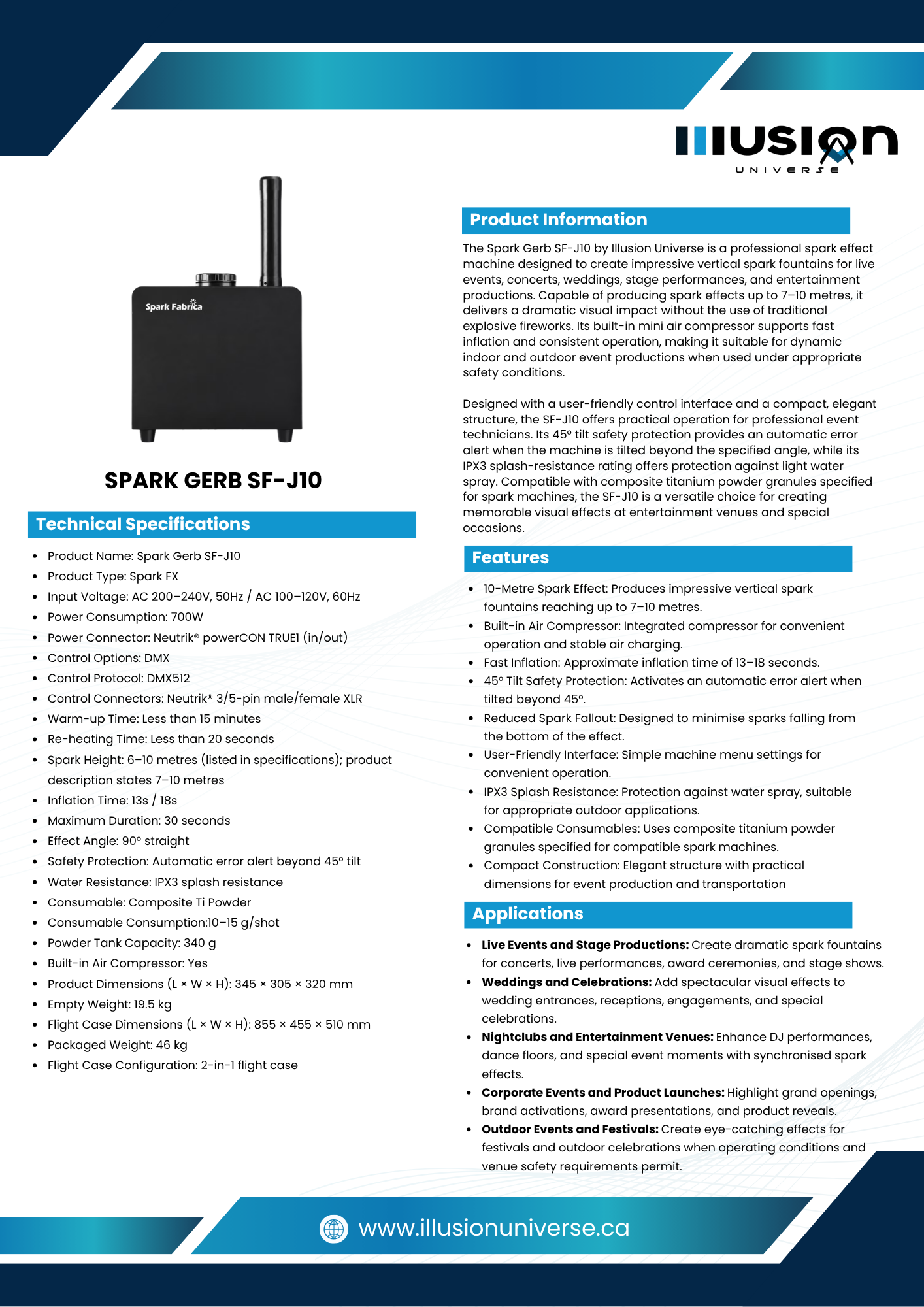

Spark Gerb SF-J10
The Spark Gerb SF-J10 by Illusion Universe is a professional spark effect machine designed to create impressive vertical spark fountains for live events, concerts, weddings, stage performances, and entertainment productions. Capable of producing spark effects up to 7–10 metres, it delivers a dramatic visual impact without the use of traditional explosive fireworks. Its built-in mini air compressor supports fast inflation and consistent operation, making it suitable for dynamic indoor and outdoor event productions when used under appropriate safety conditions.
Designed with a user-friendly control interface and a compact, elegant structure, the SF-J10 offers practical operation for professional event technicians. Its 45° tilt safety protection provides an automatic error alert when the machine is tilted beyond the specified angle, while its IPX3 splash-resistance rating offers protection against light water spray. Compatible with composite titanium powder granules specified for spark machines, the SF-J10 is a versatile choice for creating memorable visual effects at entertainment venues and special occasions.
Features
-
10-Metre Spark Effect: Produces impressive vertical spark fountains reaching up to 7–10 metres.
-
Built-in Air Compressor: Integrated compressor for convenient operation and stable air charging.
-
Fast Inflation: Approximate inflation time of 13–18 seconds.
-
45° Tilt Safety Protection: Activates an automatic error alert when tilted beyond 45°.
-
Reduced Spark Fallout: Designed to minimise sparks falling from the bottom of the effect.
-
User-Friendly Interface: Simple machine menu settings for convenient operation.
-
IPX3 Splash Resistance: Protection against water spray, suitable for appropriate outdoor applications.
-
Compatible Consumables: Uses composite titanium powder granules specified for compatible spark machines.
-
Compact Construction: Elegant structure with practical dimensions for event production and transportation
What are the Technical Specifications of Spark Gerb SF-J10?
-
Product Name: Spark Gerb SF-J10
-
Product Type: Spark FX
-
Input Voltage: AC 200–240V, 50Hz / AC 100–120V, 60Hz
-
Power Consumption: 700W
-
Power Connector: Neutrik® powerCON TRUE1 (in/out)
-
Control Options: DMX
-
Control Protocol: DMX512
-
Control Connectors: Neutrik® 3/5-pin male/female XLR
-
Warm-up Time: Less than 15 minutes
-
Re-heating Time: Less than 20 seconds
-
Spark Height: 6–10 metres (listed in specifications); product description states 7–10 metres
-
Inflation Time: 13s / 18s
-
Maximum Duration: 30 seconds
-
Effect Angle: 90° straight
-
Safety Protection: Automatic error alert beyond 45° tilt
-
Water Resistance: IPX3 splash resistance
-
Consumable: Composite Ti Powder
-
Consumable Consumption:10–15 g/shot
-
Powder Tank Capacity: 340 g
-
Built-in Air Compressor: Yes
-
Product Dimensions (L × W × H): 345 × 305 × 320 mm
-
Empty Weight: 19.5 kg
-
Flight Case Dimensions (L × W × H): 855 × 455 × 510 mm
-
Packaged Weight: 46 kg
-
Flight Case Configuration: 2-in-1 flight case
Applications
-
Live Events and Stage Productions: Create dramatic spark fountains for concerts, live performances, award ceremonies, and stage shows.
-
Weddings and Celebrations: Add spectacular visual effects to wedding entrances, receptions, engagements, and special celebrations.
-
Nightclubs and Entertainment Venues: Enhance DJ performances, dance floors, and special event moments with synchronised spark effects.
-
Corporate Events and Product Launches: Highlight grand openings, brand activations, award presentations, and product reveals.
-
Outdoor Events and Festivals: Create eye-catching effects for festivals and outdoor celebrations when operating conditions and venue safety requirements permit.
Frequently Asked Questions (FAQs)
Q1. What is the maximum spark height of the Spark Gerb SF-J10?
The supplied product information specifies a spark height of 6–10 metres in the technical table, while the product description states 7–10 metres. Please confirm the manufacturer's rated output before final publication.
Q2. Does the Spark Gerb SF-J10 have a built-in air compressor?
Yes. It features an integrated mini air compressor designed to support fast inflation and stable spark ejection, with an indicated inflation time of 13–18 seconds.
Q3. Can the Spark Gerb SF-J10 be controlled through DMX?
Yes. The machine supports DMX control and the DMX512 protocol, allowing integration into compatible professional lighting and event control systems.
Q4. Is the Spark Gerb SF-J10 suitable for outdoor events?
It has an IPX3 splash-resistance rating, which provides protection against water spray. Outdoor use should still follow the manufacturer's operating instructions, weather limitations, and venue safety requirements.
Q5. What consumable does the Spark Gerb SF-J10 use?
The machine is specified to use composite titanium powder. The listed powder tank capacity is 340 g, with a stated consumption of approximately 10–15 g per shot. Always use manufacturer-approved consumables and follow the operating instructions.
