SHAFT 420 HYBRID CMY – Technical Specifications
Light Source
-
Lamp Type: 1 x OSRAM SIRIUS HRI 420W
-
RGB LEDs: (30+36+42) x 0.2W 3-IN-1 SMD LEDs
-
Color Temperature: 7850K (±300K)
-
CRI (Color Rendering Index): ≥ 83 (±5)
-
Flicker-Free Operation: Optimized for TV and Film
-
Lamp Life Span: Approx. 2500 hours (varies based on environmental conditions, voltage, usage patterns, and control settings)
Optical System
-
Advanced Optics: High-resolution precision lenses
-
Zoom Range:
-
SPOT Mode: 4°–32°
-
BEAM Mode: 2.5°
-
-
Focus: Smooth and precise linear motorized focus
Movement
-
PAN Movement:
-
Mode 1: 360° Continuous movement
-
Mode 2: 540° (8/16-bit)
-
-
TILT Movement:
-
Mode 1: 360° Continuous movement
-
Mode 2: 270° (8/16-bit)
-
-
Motors: High-speed, low-noise 3-phase motors
-
Position Memory: Auto reposition after unexpected movement
-
Reversible PAN/TILT
Gobo System
-
Rotating Gobo Wheel:
-
8 rotatable and interchangeable glass gobos + open
-
Speed adjustable, stream effect, dithering effect
-
Rotatable clockwise/anti-clockwise
-
-
Static Gobo Wheel:
-
12 gobos + open
-
-
Gobo Morphing: Dynamic overlays and transitions
Color System
-
Full CMY Color Mixing System
-
3 Color Wheels:
-
Each with 12 dichroic colors + open (half-color mode available)
-
-
Rainbow Effect: Variable direction with speed adjustment
-
6-Color Effect Wheel
Animation System
-
Special Effects: Simulated dynamic flame, water effect, etc.
Prism System
-
Dual Prism Wheels:
-
Prism 1: 4 different prisms (4-facet linear, 3-facet circular, 4-facet circular, 6-facet circular)
-
Prism 2: 4 different prisms (6-facet linear, 2-facet circular (6+12), 8-facet circular, 16-facet circular)
-
-
Prism Indexing & Morphing: 16 types of morphing effects and 24 prism effects in total
Wash System
-
Frost Filter: Linear soft frost effect for hybrid wash mode
-
Smooth and even coverage
Strobe & Dimming
-
Strobe: 0-20Hz shutter/strobe with variable speed
-
Effects: Preset variable/random strobe & dimming pulse
-
Dimming: 0-100% smooth linear dimming
Control & Connectivity
-
DMX Channels: 33/38 channels (USITT DMX-512)
-
Control Modes: DMX512, Master-Slave, Auto Mode
-
RDM (Remote Device Management): Available
-
Art-NET: Optional
-
Wireless DMX Receiver: Built-in (Optional)
-
Signal Protection: Shielded input for stable signal without interference
-
Connectors:
-
DMX: 3-pin & 5-pin XLR IN/OUT
-
Network: RJ45 etherCON IN/OUT (optional with Art-Net)
-
-
Software Update: Upgradable via DMX connectors (multi-unit daisy-chain update)
Display & Interface
-
Screen: 1.44" TFT LCD Display
-
Control Buttons: 5-button navigation
-
Screen Rotation: 180° reversible display
-
Auto-Off: Display turns off when inactive
-
Signal Indicator: DMX signal monitoring
Cooling System
-
Self-Adjusting Fan Cooling: Efficient low-noise operation
-
Temperature Monitoring: Constant readout and management
-
Over-Temperature Protection: Prevents overheating for long lifespan
Power Supply
-
Electronic Ballast: PT-SIRIUS 310W with Active PFC
-
Voltage: AC100-240V, 50/60Hz
-
Power Consumption: 630W
-
Power Connections: PowerCON IN/OUT with fuse protection
Housing & Build Quality
-
Material: Fireproof PA6 + fiber-reinforced plastic with aluminum & steel plates
-
Handles: Dual side handles for easy handling
-
Color: Matte black exterior
Installation & Rigging
-
Mounting Options:
-
Omega Clamps: 2x 1/4 turn fastening (vertical & horizontal adaptable)
-
Safety Attachment Point: Available for secure rigging
-
-
Operating Positions: Any (floor-mounted or truss-mounted)
Environmental Conditions
-
Operating Temperature: -25°C to 45°C
-
IP Rating: IP20 (indoor use)
Dimensions & Weight
-
Product Dimensions: 261.8mm (D) x 297.9mm (W) x 513.7mm (H)
-
Packing Dimensions: 655mm (D) x 380mm (W) x 355mm (H)
-
Net Weight: 14.58 kg
-
Gross Weight: 16.51 kg
Compliance & Certifications
-
CE Certification
-
LVD (2014/35/EU): Safety of electrical equipment supplied at low voltage
-
EMC (2014/30/EU): Electromagnetic Compatibility
-
RoHS (2011/65/EU): Restriction of hazardous substances
-
CSA Certified (Canadian Standards Association – Safety & Performance Compliance for North America)
Why Choose SHAFT 420 HYBRID CMY?
With its high-powered light source, seamless CMY color mixing, and cutting-edge optical systems, the SHAFT 420 HYBRID CMY delivers unmatched performance for any stage or event. From dynamic lighting effects to smooth and precise movement, it’s the ultimate choice for lighting professionals.
Order Now!
Take your lighting design to the next level with the ROBUST 200 BEAM. Contact us today to learn more or request a quote.
UPC# : 602835339357
The SHAFT 420 HYBRID CMY is a next-generation spot, beam, and wash moving head designed for professionals who demand superior performance and versatility. Equipped with a powerful OSRAM SIRIUS HRI 420W lamp and full CMY color mixing, this fixture delivers breathtaking lighting effects with seamless transitions and high-intensity output.
Its 3-ring RGB strip effect, dual prism wheels, animation wheel, and continuous 360° PAN/TILT movement offer limitless creative possibilities, making it perfect for concerts, theaters, TV productions, clubs, and large-scale events.
With precise optics, ultra-smooth zoom (2.5°–32°), advanced gobo systems, and high-speed movement, the SHAFT 420 HYBRID CMY ensures stunning visual impact and professional-grade performance. Designed for flicker-free operation, it is optimized for live productions and broadcast environments.
Key Features:
✔ Hybrid 3-in-1 Function: Spot, Beam & Wash in a single fixture
✔ High-Powered OSRAM Lamp: Exceptional brightness & clarity
✔ CMY Color Mixing System: Vibrant and smooth color transitions
✔ Advanced Gobo & Prism Effects: Rotating/static gobos, dual prism wheels, and animation effects
✔ Continuous 360° PAN/TILT: Unlimited movement for dynamic visuals
✔ Wireless & DMX Control Options: Seamless integration into any lighting setup
✔ Flicker-Free Performance: Ideal for TV, film, and live stage productions
Elevate your lighting game with the SHAFT 420 HYBRID CMY – a powerful, feature-packed, and innovative lighting solution for professionals.

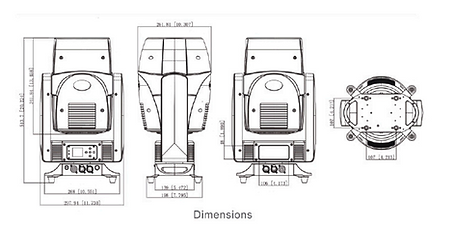

Dimensions
Effect
Photometrics
