3 0 0 B E A M
UPC# : 673324964947

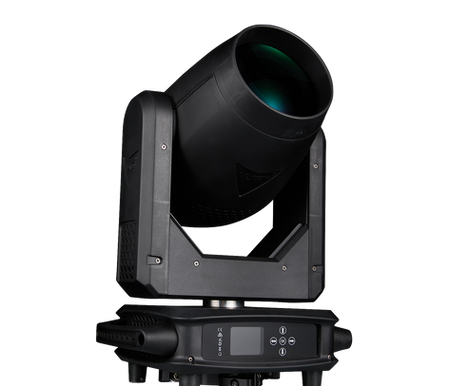

The SHAFT 300 Beam is a cutting-edge beam moving head fixture, designed to deliver stunning and powerful lighting effects for any professional event. Powered by the highly reliable PHILIPS MSD Silver 300 LL light source with an impressive 3,000-hour lifespan, this fixture creates an intense, long-throw beam that captivates audiences with dazzling mid-air projections. Featuring a fixed gobo wheel, a dual color wheel system (14 colors on one and 7 on the other), and a variety of effects such as a smooth **0-100% dimming** range and strobe capabilities, it offers unmatched versatility for creative lighting designers.
What truly sets the SHAFT 300 Beam apart is its advanced prism system, equipped with an 8-prism, and 8+16+24 honeycomb prisms, which can be stacked and rotated in both directions for intricate light displays. Additionally, the electric focusing system ensures precision control, while the **frost filter** enables a soft wash effect, turning intense beams into a more diffused and atmospheric light when desired. Whether you need bold, sharp beams or smooth washes, the SHAFT 300 Beam is engineered to enhance any performance with breathtaking visual impact.
Features
-
Electric focuing system with 0-100% smooth dimming.
-
Overheating self-energy protection can extending lamp life.
-
Three phase Motor with SY Brand (XY axis magnetic coding positioning is more accurate.
-
High quality LCD touch screen.
-
Power in & Out connector,3 or 5pin XLR inout & output can optional.
-
Folding clamp.
-
Housing material: PA6 Nylon(Solid, high temperature resistance up to 200°, flame retardant)re updates
SHAFT 300 BEAM
Technical Specifications
-
Light Source:
-
PHILIPS MSD SILVER 300LL
-
Color temperature: 7800K
-
CRI: 86 (+/- 5)
-
Beam Angle: 2°
-
Diameter of optic lens: 145mm
-
Color Wheel:
-
Color Wheel 1: 14 Colors+open, two way rainbow effect.
-
Color Wheel 2 : 7 Colourful Wheel
-
GOBO Wheel:
-
16 static GOBOs + Open (4 GOBOs are beam reducers)
-
GOBO Shake Effect
-
Prism Wheels:
-
2 Rotating prisms
-
Equipped with 8 PRISM and 8+16+24 Honeycomb Prism,
-
The two prisms can be stacked and rotated in both directions,
-
Control:
-
Protocols: DMX512 & RDM
-
Control Mode: DMX512 & Manual (On-board Controls)
-
2 DMX Channel Modes: 18 Channels
-
2.4-inch Color screen with touch buttons
-
0-100% Smooth Dimming
-
Various strobe speeds
-
With Wired Digital Communication Network
-
Pan/Tilt:
-
Pan: 540 degrees (plus 16-bit fine pan)
-
Tilt: 270 degrees (plus 16-bit fine tilt)
-
3 Phase, SY Brand (XY axis magnetic coding positioning is more accurate)
-
Connections:
-
DMX Connections: 3-pin DMX In/Out (5 pin optional ) (Data link max: 32 fixtures)
-
Power Connections: Outdoor locking In/Out connections to daisy chain power
-
Electrical:
-
Multi-voltage operation: 100-240V, 50/60Hz
-
Max power consumption: 410W (@120V), 390W (@230V)
-
Output Voltage : V1:36V(Master board), V2:12V(cooling fan),V3:380V(lamp)
-
Dimensions & Weight:
-
Dimension: 13.3” (L) x 10” (W) x 20” (H) / 338 x 256 x 515mm
-
Weight: 33 lbs. / 14 kg.
-
Certifications & Safety
-
Evaluated to m SPE-1000 for Canadian installation. U.S. field evaluation available upon request. Designed to comply with applicable CE and RoHS requirements.
-
Thermal cutoff, head-lock transport, fixture reset.
-
What’s Included:
-
2M, 14AWG power cord
Applications
-
The SHAFT 300 Beam is engineered for a wide range of professional lighting environments, delivering powerful beam effects and dynamic visuals:
-
Concerts & Live Shows – Creates high-intensity aerial beams and synchronized light effects that enhance stage energy.
-
DJ Events & Nightclubs – Perfect for fast-moving beams, strobe effects, and vibrant color transitions in club environments.
-
Weddings & Social Events – Adds dramatic entry effects, dance floor lighting, and elegant ambient atmospheres.
-
Corporate Events & Product Launches – Ideal for highlighting key moments, stage focus, and brand presentations.
-
Theatre & Stage Productions – Offers precise beam control and creative effects for storytelling and сценography.
-
Outdoor Events & Festivals – Long-throw beam capability ensures visibility even across large open spaces.
-
TV Studios & Broadcast – Reliable performance with flicker-free output for professional video production.
Why Choose Roar Strike M?
The SHAFT 300 Beam stands out as a powerful and versatile lighting solution designed for professionals who demand performance, reliability, and creative flexibility:
-
High-Intensity Beam Output: Powered by the PHILIPS MSD Silver 300 LL lamp, it delivers a sharp 2° beam with exceptional brightness and long-throw capability.
-
Advanced Prism Effects: Dual rotating prism system with 8-prism and 8+16+24 honeycomb prisms allows layered, dynamic, and complex beam patterns.
-
Dual Color Wheel System: Extensive color options with smooth rainbow effects for richer and more creative lighting designs.
-
Precision Control & Smooth Operation: Electric focusing, 16-bit pan/tilt movement, and 0–100% smooth dimming ensure accurate and fluid lighting transitions.
-
Versatile Beam to Wash Conversion: Integrated frost filter allows quick transformation from sharp beams to soft atmospheric wash effects.
-
Professional-Grade Build Quality: Durable PA6 nylon housing with high-temperature resistance and flame-retardant properties ensures long-term reliability.
-
Smart Protection & Longevity: Overheating protection system extends lamp life and maintains consistent performance.
-
Flexible Connectivity & Control: Supports DMX512 & RDM protocols with multiple connection options, making it suitable for any professional setup.
-
User-Friendly Interface: High-quality LCD touchscreen display for easy configuration and control on-site.
