Light Source & Optics

• Powered by 7 × 40W RGBW 4-in-1 LEDs for vivid color performance.

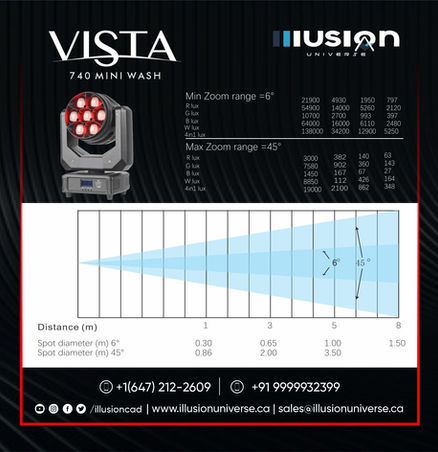

• Motorized zoom range: 6° – 45°, allowing both narrow beams and wide washes.

• Smooth linear dimming from 0–100% with selectable dimming curves.

• Flicker-free performance suitable for live shows and video recording.


Dynamic Effects

• Combination of beam + wash effects in one fixture.

• Four dimming curves for flexible control of light transitions.

• High-speed and accurate pan (540°) / tilt (270°) movements with 16-bit resolution.

• Quiet operation, ideal for theatrical or studio applications.


Technical Specifications

• Power Consumption: 250W

• Control Modes: DMX512, RDM, Auto-run, Sound Active, Master/Slave

• DMX Channel Modes: 17/22 channels

• Display: LCD screen for easy configuration

• Connections: 3-pin XLR data in/out, PowerCon in/out

• Protection Rating: IP20 (indoor use)


Dimensions & Weight

• Dimensions: 258 × 178 × 334 mm

• Net Weight: 5.5 kg

• Rugged and lightweight housing for touring and installations.

​

Certifications
CSA Special Publication SPE-1000-21

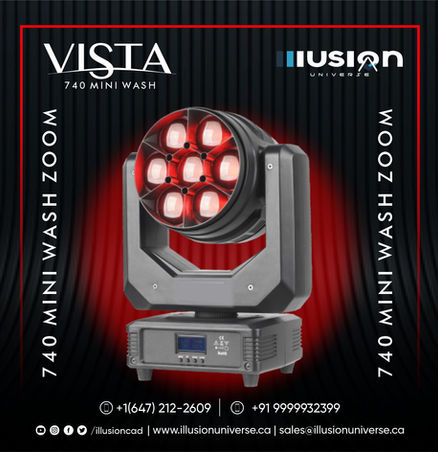

The Vista 740 Mini Wash is a compact yet professional moving head wash fixture designed for high-performance applications in stage, event, and club lighting. Equipped with 7 × 40W RGBW 4-in-1 LEDs, it delivers outstanding brightness, excellent color mixing, and smooth dimming performance. Its versatile 6°–45° motorized zoom allows the fixture to switch effortlessly between a tight beam and a wide wash, making it an essential tool for lighting designers who demand flexibility in their setups.

​

Despite its lightweight and portable design, the Vista 740 Mini Wash is built to deliver professional-level performance. With flicker-free output, 0–100% linear dimming, and four selectable dimming curves, it ensures smooth and precise lighting effects for live events, theatrical stages, broadcast, and video production. The fixture also features fast, accurate pan/tilt movement with 16-bit resolution, guaranteeing dynamic effects and seamless transitions.

​

Features

​

• 7 × 40W RGBW 4-in-1 LEDs delivering high brightness and vivid, uniform color mixing.

• Motorized zoom (6°–45°) for flexible beam-to-wash applications.

• Beam + Wash dual effect in one compact fixture.

• 0–100% smooth dimming with 4 selectable dimming curves.

• Flicker-free output, perfect for live events, broadcast, and video.

• Fast and precise Pan/Tilt movement (540° / 270°) with 16-bit resolution.

• Multiple control options: DMX512, RDM, Master/Slave, Auto-run, and Sound Active.

• LCD display for easy configuration and menu navigation.

• 3-pin XLR in/out and PowerCon in/out connections for seamless setup.

• Lightweight and portable at just 5.5 kg, yet rugged for touring and rentals.

• Quiet operation, ideal for theatres, studios, and live environments.

• Compact dimensions (258 × 178 × 334 mm) for easy rigging and installation.​​

​​​

Multiple control options — including DMX512, RDM, Auto-run, Sound Active, and Master/Slave modes — provide users with maximum flexibility to integrate the fixture into any professional setup. Connectivity is simple and reliable with 3-pin XLR data in/out and PowerCon in/out power linking.

Compact, versatile, and designed for demanding environments, the Vista 740 Mini Wash is the ideal solution for rental houses, touring productions, DJs, and permanent installations seeking high-quality wash lighting in a lightweight yet durable fixture.



Applications

The Vista 740 Mini Wash is perfect for:

• Concerts, live shows & touring productions

• Nightclubs, lounges, and DJ events

• Theatres, auditoriums & stage performances

• Corporate events, weddings & special occasions

• Rental companies & production house
