Technical Specification



  • Rated Voltage

    • US Model: AC 100 – 120V, 50 / 60 Hz, 12.5A

    • EU Model: AC 220 – 240V, 50 / 60 Hz, 6.3A

  • Rated Power: 1450 W

  • Warm-Up Time: 1 minute (approx.)

  • Fluid Consumption: 12 ml/min (at 100% output)

  • Fluid Tank Capacity: 5 Liters (1.32 gallon)

  • Compatible Fluid: FLG-5E

  • Operating Time: 7 hours at max. output

  • Ambient Temperature Range: 0°C – 40°C (32°F – 104°F)

  • Control Methods: Manual, DMX 512, Timer, Wireless DMX (Optional)

  • DMX Channels: 2 Channels

  • Connection:

    • Neutrik powerCon (Power)

    • XLR 5-pin (DMX)

  • Included Accessories: N/A

  • Optional Accessories: ES-W-DMX Wireless, WTR-110 Wireless

  • Dimensions:

    • 493 mm (L) × 424 mm (H) × 280 mm (W)

    • 19.4 in (L) × 16.69 in (H) × 10.59 in (W)

  • Weight: 17.2 kg (37.80 lbs)

  • Certification: CSA Special Publication SPE-1000-21

Order Now!



Bring the power and consistency of the F-6 Fazer into your lighting setup. Contact us today for a quote or to place your order.

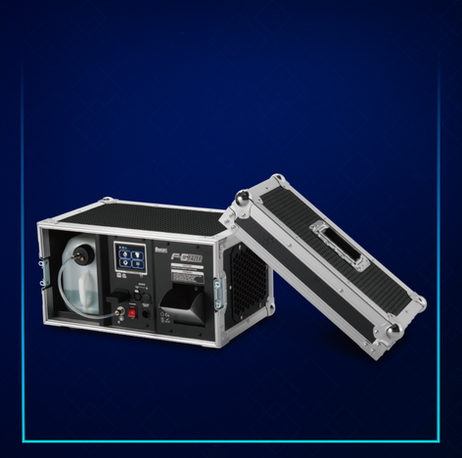

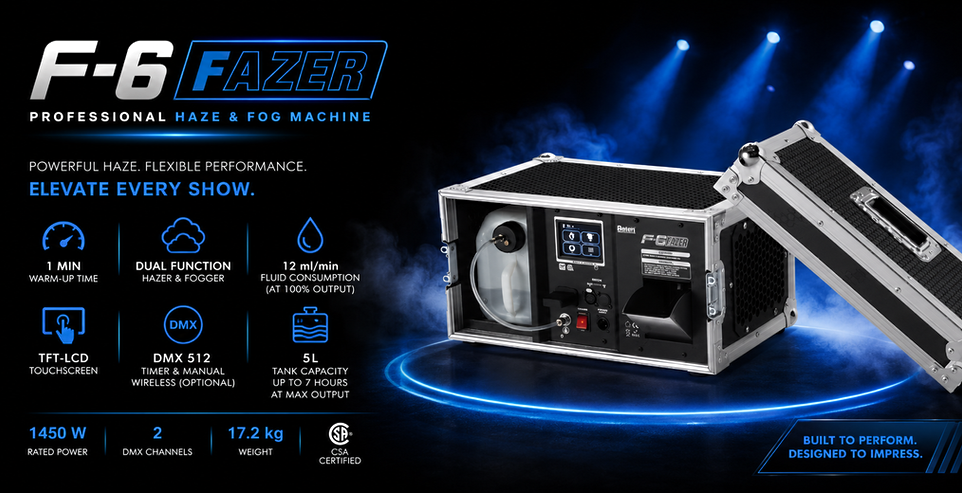

F-6 Fazer

​

The F-6 Fazer is a professional-grade haze and fog machine engineered to elevate lighting effects and stage ambiance to the next level. Designed with both versatility and performance in mind, it seamlessly blends fog and haze capabilities into a single, compact unit. Whether you're producing a concert, theatrical show, corporate event, or large-scale installation, the F-6 Fazer ensures a smooth, consistent haze output that enhances the visibility of lighting beams and adds depth to any environment.

​

Equipped with a fast warm-up time, efficient fluid usage, and advanced control options, the F-6 Fazer is suitable for both temporary setups and permanent installations. Its durable construction, quiet operation, and easy-to-use touchscreen interface make it ideal for lighting professionals seeking reliability and precision in every show. By combining long-lasting haze effects with the flexibility to operate as a traditional fog machine, the F-6 Fazer delivers a premium visual experience that transforms ordinary spaces into spectacular, immersive environments.

​

Features

​

  • Dual Functionality: Operates as both a fogger and a hazer, providing versatility for various effects.

  • Quick Warm-Up: Achieves full output in approximately 1 minute.

  • User-Friendly Interface: Equipped with a TFT-LCD touchscreen for easy control and monitoring.

  • Robust Build: Housed in a reinforced honeycomb-style flight case for durability and portability.

  • Efficient Fluid Consumption: Consumes 12 ml/min at 100% output, with a 5-liter tank capacity.

  • Multiple Control Options: Supports manual operation, DMX 512, timer, and optional wireless DMX control.

Effects:

  • Enhanced Lighting: Creates a uniform haze that accentuates lighting beams and effects.

  • Atmospheric Ambiance: Adds depth and mood to performances and installations.

  • Long-Lasting Output: Operates continuously for up to 7 hours at maximum output.

​

Effects

Accessories

  • WTR-110 Wireless Remote: Allows for remote operation, providing flexibility in control.

  • ES-W-DMX Wireless DMX: Enables wireless DMX control for seamless integration into lighting systems.

Accessories
Accessories

Fluids

  • FLG-5E Heavy Fog Fluid: Specifically designed for the F-6 Fazer, ensuring optimal performance and safety.

Fluids
