I FLAMER SF-90 PLUS

The I FLAMER SF-90 PLUS is a professional flame effect machine designed to create powerful, straight flame effects reaching heights of 8–10 meters. Featuring a 90° straight flame output, fast electronic ignition, and adjustable flame height, it helps event professionals create dramatic visual moments for concerts, festivals, stage productions, and large-scale live events. Its ISOPAR liquid fuel system and 10-litre fuel tank make it suitable for productions that require extended operation with fewer refuelling interruptions.


Designed with practical control and safety features, the I FLAMER SF-90 PLUS includes dual-valve and pump safety, a triple safety design, and an IPX3-rated water-resistance design. Its DMX512 control compatibility and support for professional show-control software workflows make it suitable for synchronised stage effects and time-coded performances. Whether used for live entertainment, festival stages, or special event productions, this flame machine delivers a striking straight-flame effect for visually impactful shows.

Features

Features

  • 8–10 Metre Flame Height: Creates high-reaching flame effects for large stages and event spaces.

  • 90° Straight Flame Effect: Produces a direct, vertical flame column.

  • Adjustable Flame Height: Different nozzles can adjust the stated flame height between 3 and 10 metres.

  • 10L Fuel Tank: Helps reduce frequent refuelling interruptions during extended shows.

  • ISOPAR Liquid Fuel System: Designed to operate with ISOPAR liquid fuel.

  • Fast Electronic Ignition: Provides rapid ignition response for time-coded performances.

  • Dual-Valve & Pump Safety: Incorporates additional safety mechanisms in the fuel and pumping system.

  • Triple Safety Design: Includes a safety button, low-fuel-level alarm, and 45-degree tilt protection.

  • IPX3 Water-Resistance Rating: Designed to withstand water spray under specified test conditions; it is not waterproof for unrestricted outdoor exposure.

  • DMX512 Control: Supports integration into professional lighting and show-control setups.

  • Professional Software Compatibility: Listed as compatible with Finale 3D, Depence, MA2, and MA3.

  • Instagram
  • Facebook
  • YouTube
  • TikTok
Gallery

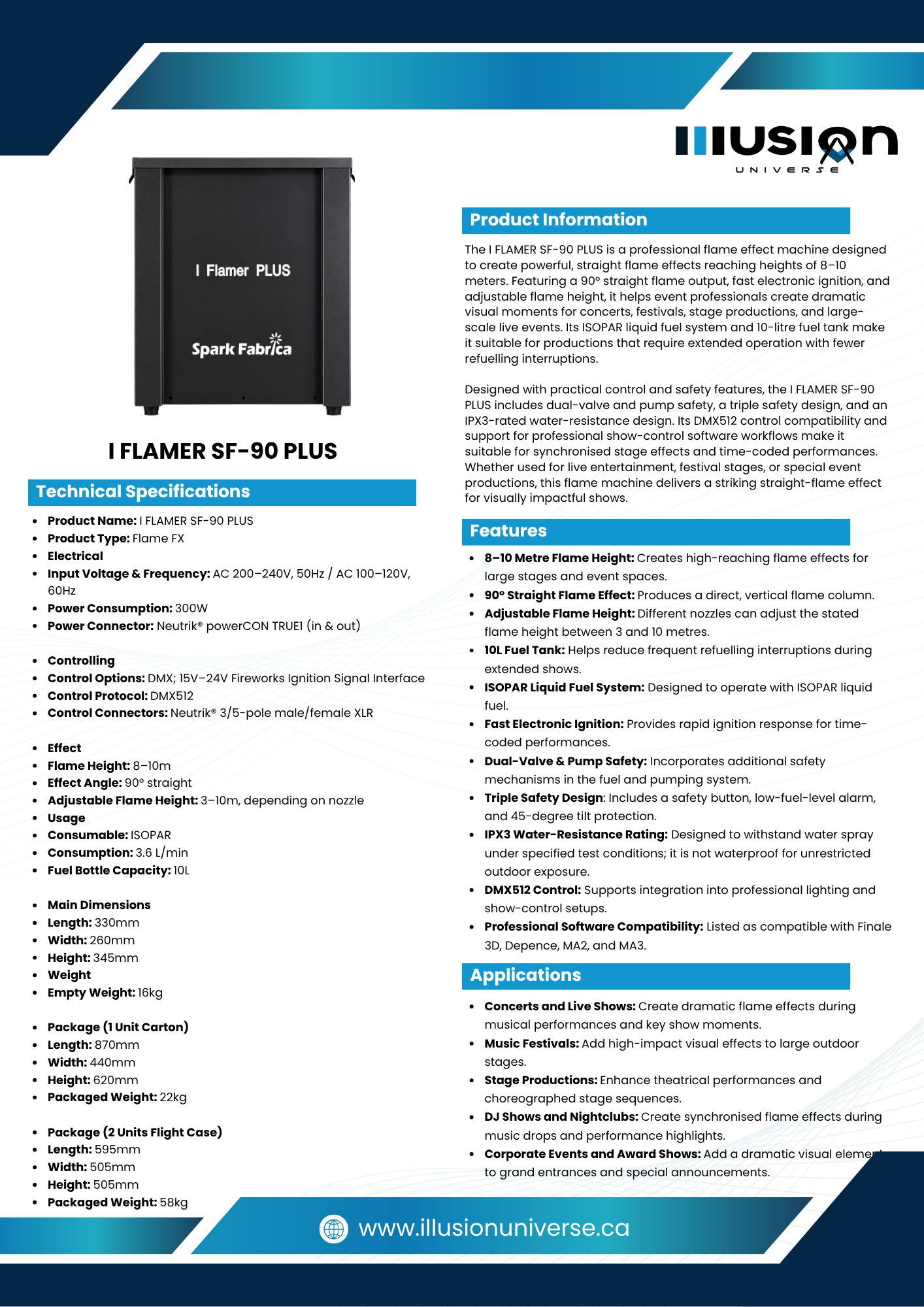

What are the Technical Specifications of I FLAMER SF-90 PLUS?

  • Product Name: I FLAMER SF-90 PLUS

  • Product Type: Flame FX


  • Electrical

  • Input Voltage & Frequency: AC 200–240V, 50Hz / AC 100–120V, 60Hz

  • Power Consumption: 300W

  • Power Connector: Neutrik® powerCON TRUE1 (in & out)


  • Controlling

  • Control Options: DMX; 15V–24V Fireworks Ignition Signal Interface

  • Control Protocol: DMX512

  • Control Connectors: Neutrik® 3/5-pole male/female XLR


  • Effect

  • Flame Height: 8–10m

  • Effect Angle: 90° straight

  • Adjustable Flame Height: 3–10m, depending on nozzle


  • Usage

  • Consumable: ISOPAR

  • Consumption: 3.6 L/min

  • Fuel Bottle Capacity: 10L


  • Main Dimensions

  • Length: 330mm

  • Width: 260mm

  • Height: 345mm


  • Weight

  • Empty Weight: 16kg


  • Package (1 Unit Carton)

  • Length: 870mm

  • Width: 440mm

  • Height: 620mm

  • Packaged Weight: 22kg


  • Package (2 Units Flight Case)

  • Length: 595mm

  • Width: 505mm

  • Height: 505mm

  • Packaged Weight: 58kg

Ts

Applications

​

  • Concerts and Live Shows: Create dramatic flame effects during musical performances and key show moments.

  • Music Festivals: Add high-impact visual effects to large outdoor stages.

  • Stage Productions: Enhance theatrical performances and choreographed stage sequences.

  • DJ Shows and Nightclubs: Create synchronised flame effects during music drops and performance highlights.

  • Corporate Events and Award Shows: Add a dramatic visual element to grand entrances and special announcements.

  • Special Events and Grand Openings: Enhance carefully planned event highlights and celebratory moments.

Applications
​Frequently Asked Questions (FAQs)


Q1. What is the maximum flame height of the I FLAMER SF-90 PLUS?

The I FLAMER SF-90 PLUS produces a stated flame height of 8–10 metres. The supplied information also indicates that changing nozzles can adjust the flame height between 3 and 10 metres.


Q2. What type of fuel does the I FLAMER SF-90 PLUS use?

The machine is specified for ISOPAR liquid fuel. Always use the exact fuel grade approved by the manufacturer and follow the equipment's operating instructions.


Q3. Does the I FLAMER SF-90 PLUS support DMX control?

Yes. The unit supports the DMX512 control protocol and also lists a 15V–24V fireworks ignition signal interface. These options allow integration into compatible professional show-control systems.


Q4. What safety features are included in the I FLAMER SF-90 PLUS?

The listed safety features include dual-valve and pump safety, a safety button, a low-fuel-level alarm, and 45-degree tilt protection. Operators must still follow the manufacturer's safety instructions and venue requirements.


Q5. Is the I FLAMER SF-90 PLUS suitable for outdoor events?

The machine has an IPX3 water-resistance rating, which provides protection against water spray under specified conditions. Suitability for a particular outdoor installation depends on the weather, installation conditions, manufacturer guidance, and event safety requirements.
