Hydrex Beam Force 420
The Hydrex Beam Force 420 is a high-performance outdoor beam moving head engineered for professional lighting applications that demand extreme intensity, precision optics, and reliable weather protection. With an IP66-rated design, it is built to operate confidently in outdoor environments such as festivals, touring productions, large stages, and permanent exterior installations.
Powered by the USHIO NSLU7A 420W lamp and a high-efficiency optical system, the fixture delivers an ultra-narrow 2° beam with an exceptional output of 750,000 lux @ 10m. A complete suite of color, gobo, prism, frost, and strobe effects ensures versatile programming possibilities, while smooth linear dimming and focus control provide refined performance for professional shows.
Designed with advanced motion capabilities, the BeamForce420 features fast and precise pan and tilt movement, allowing dynamic aerial effects and accurate positioning during live performances. The fixture also includes multiple control options such as DMX512, RDM compatibility, and advanced onboard programming, making integration into professional lighting systems seamless and efficient.
Its rugged construction and intelligent thermal management system ensure long-term reliability even in demanding outdoor conditions. Whether used for large-scale concerts, architectural lighting, or touring productions, the Hydrex BeamForce420 delivers powerful beam projection, consistent performance, and professional-grade visual impact.
Features
● Ultra-Narrow 2° Beam Angle: Produces a sharp, concentrated beam designed for long-throw aerial effects and maximum visibility.
● High-Intensity Output: Delivers 750,000 lux @ 10m, making it suitable for large-scale venues and outdoor productions.
● Advanced Color System: Equipped with a 13-color + white wheel for vibrant and varied beam looks.
● Fixed Gobo Wheel: Includes 15 gobos + white, enabling clean beam pattern projection and dynamic visual design.
● Multi-Prism Configuration: Features 8-facet + 8-facet + 24-facet prisms for wide and layered beam multiplication.
● Prism Overlay Effects: Provides 7 types prism overlay options to expand creative effects and texture.
● Frost Filter: Allows soft-edge projection for smoother beam output and more atmospheric looks.
● Precision Focus Control Supports 0–100% linear focusing for accurate gobo clarity and consistent projection.
● Smooth Linear Dimming Offers 0–100% linear dimming for professional fade control and seamless transitions.
● Flexible Strobe Modes Includes 1–12 Hz strobe with random and pulse flash for dynamic show effects.
● Wide Pan/Tilt Range Provides 540° pan and 270° tilt for extensive coverage and flexible positioning.
● Professional Control Compatibility Supports DMX512/RDM with 16 DMX channels for standard lighting integration.
● Outdoor-Grade Construction Built with a magnesium alloy housing and finished with black matte fine sand outdoor paint for durability.
● Salt Corrosion Resistance Designed for long-term use in harsh environments, including coastal and high-humidity locations.

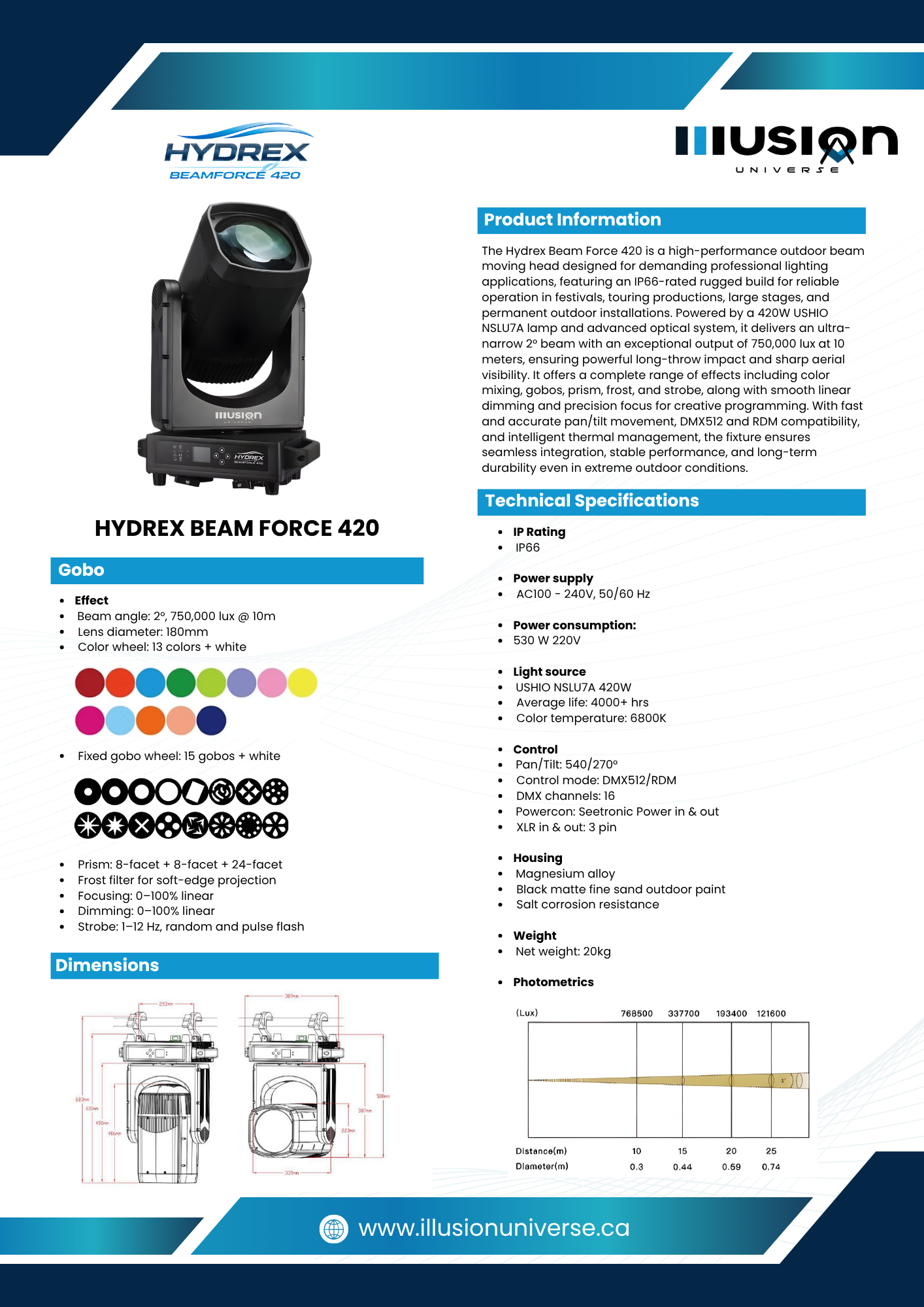

Technical Specifications
-
IP Rating
-
IP66
-
Power supply
-
AC100 - 240V, 50/60 Hz
-
Power consumption: 530 W 220V
-
Light source
-
USHIO NSLU7A 420W
-
Average life: 4000+ hrs long lifespan
-
Color temperature: 6800K
-
Control
-
Pan/Tilt: 540/270°
-
Control mode: DMX512/RDM
-
DMX channels: 16
-
Powercon: Seetronic Power in & out
-
XLR in & out: 3 pin
-
IP Rating: IP66
-
Effect
-
Beam angle: 2°, 750,000 lux @ 10m
-
Lens diameter: 180mm
-
Color wheel: 13 colors + white
-
Fixed gobo wheel: 15 gobos + white
-
Prism: 8-facet + 8-facet + 24-facet
-
Prism overlay, 7 types prism
-
Frost filter for soft-edge projection
-
Focusing: 0–100% linear
-
Dimming: 0–100% linear
-
Strobe: 1–12 Hz, random and pulse flash
CERTIFICATIONS & SAFETY
Evaluated to m SPE-1000 for Canadian installation.
U.S. field evaluation available upon request.
Designed to comply with applicable CE and RoHS requirements.
-
Housing
-
Magnesium alloy
-
Black matte fine sand outdoor paint
-
Salt corrosion resistance
-
Packed
-
Net weight: 20kg
-
Photometrics
Is the Hydrex Beam Force 420 Designed for Outdoor Use?
The Hydrex BeamForce420 is purpose-built for outdoor operation, featuring a sealed IP66-rated enclosure that protects the internal system from dust, rain, and harsh weather conditions. The magnesium alloy body provides a strong yet lightweight structure, while the specialized outdoor coating and salt corrosion resistance support long-term reliability in challenging environments.
Upgrade your outdoor lighting setup with the power, precision, and durability of the Hydrex BeamForce420.
Contact us today for pricing, availability, and a detailed product quotation.
Downloads
📄 Beam-Force-420-User-Guide
📄 Beam-Force-420-Product-Dimensions
📄 Beam-Force-420-Personalities-File
Frequently Asked Questions (FAQs)
1. What is the Hydrex Beam Force 420
The Hydrex Beam Force 420 is a professional outdoor beam moving head featuring a 420W USHIO lamp, ultra-narrow 2° beam angle, 750,000 lux output at 10m, and an IP66-rated housing for demanding outdoor applications.
2. What is the beam angle of the Hydrex Beam Force 420?
The Hydrex Beam Force 420 produces an ultra-narrow 2° beam angle, making it ideal for long-throw aerial beam effects, concerts, festivals, touring productions, and large outdoor stages.
3. Is the Hydrex Beam Force 420 suitable for outdoor use?
Yes. The Hydrex Beam Force 420 features an IP66-rated construction, magnesium alloy housing, outdoor-grade paint, and salt corrosion resistance, making it suitable for demanding outdoor environments.
4. How bright is the Hydrex Beam Force 420?
The Hydrex Beam Force 420 delivers an impressive output of 750,000 lux at 10 meters, providing a powerful and highly visible beam for large-scale events and outdoor productions.
5. What control protocols does the Hydrex Beam Force 420 support?
The Hydrex Beam Force 420 supports DMX512 and RDM control with 16 DMX channels, allowing it to integrate with professional lighting control systems.
