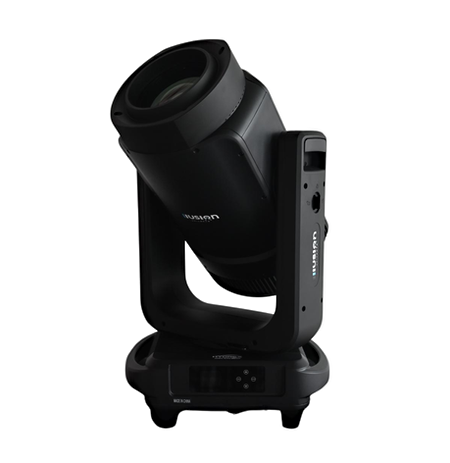

Hydrex Apex 830 BSWF

The Hydrex Apex 830 BSWF is a high-performance, all-in-one moving head lighting solution engineered for professionals who demand precision, power, and versatility. Designed with a robust 680W white LED module, it delivers exceptional brightness and color fidelity, making it ideal for large-scale productions, concerts, and architectural lighting applications.

​

Built to perform in the most demanding environments, the Hydrex Apex 830 BSWF integrates advanced beam, spot, wash, and framing capabilities into a single fixture. Its intelligent optical system ensures sharp projections, smooth color mixing, and dynamic effects, allowing lighting designers to unlock limitless creative possibilities.

​

What sets the Hydrex Apex 830 BSWF apart is its seamless blend of innovation and reliability. From intricate stage designs to high-impact outdoor shows, the fixture adapts effortlessly, offering consistent output and precision control. Its advanced engineering minimizes maintenance while maximizing performance efficiency over extended use.

​

With an IP66-rated weatherproof design, extended lifespan, and cutting-edge control features, this fixture is crafted for both indoor and outdoor use. Whether you're lighting a live event or a permanent installation, the Hydrex Apex 830 BSWF ensures consistent, reliable, and visually stunning performance.

Features

Fe

  • Powerful Light Output

  • Equipped with a 680W white LED module, the fixture produces intense brightness with excellent color rendering (CRI up to 95), ensuring vivid and accurate illumination across all applications.


  • Versatile BSWF Functionality

  • Combining Beam, Spot, Wash, and Framing in a single unit, this fixture eliminates the need for multiple lights, reducing setup complexity while maximizing performance.


  • Advanced Optical System

  • Wide beam angle range (4°–45°)

  • Precision optics for sharp beams and smooth washes

  • Frost filters for soft diffusion effects


  • Dynamic Effects Engine

  • Dual frost system (soft + heavy)

  • High-speed strobe (up to 25 flashes/sec)

  • 4-facet prism with bidirectional rotation

  • Framing system with 4 individually controllable blades


  • Creative Gobo System

  • 7 interchangeable rotating gobos + open

  • Animation wheel for continuous motion effects

  • Gobo shake and positioning functions


  • Professional Color Mixing

  • CMY linear color mixing system

  • CTO for precise color temperature control

  • Color wheel with 5 colors + open

  • Rainbow effects with bidirectional rotation

  • Professional Color Mixing

  • CMY linear color mixing system

  • CTO for precise color temperature control

  • Color wheel with 5 colors + open

  • Rainbow effects with bidirectional rotation


  • Precision Movement

  • 540° pan and 270° tilt with 16-bit control

  • Smooth, fast, and accurate positioning


  • Smart Control & Connectivity

  • DMX512 and RDM compatibility

  • 32 / 37 DMX channel modes

  • LCD display with 4-touch button interface

    3-pin & 5-pin XLR connectivity


    Rugged Outdoor Design

  • IP66-rated dustproof and waterproof construction

  • Operates in extreme temperatures (-25°C to 45°C)

  • Ideal for permanent outdoor installations

  • Instagram
  • Facebook
  • YouTube
  • TikTok
gallery
Ts

Technical Specifications

  • LIGHT SOURCE

  • 680W White LED Module

  • High brightness: Ra ≥ 70, High Ra ≥ 95

  • Average lifespan: 20,000 hours


  • POWER SYSTEM

  • Power Consumption: 830W

  • Signal: 3-pin XLR / 5-pin XLR

  • DMX in/out: 3-pin XLR / 5-pin XLR

  • Voltage: AC 100–240V, 50–60Hz


  • CONTROL

  • 4 Touch Button Control

  • LCD Display

  • Control Protocols: DMX512, RDM

  • DMX Channels: 32CH / 37CH


  • EFFECTS

  • Beam Angle: 4°–45°

  • Dimmer: 0–100% Linear Dimming

  • Prism: 1×4 prisms, bidirectional rotation

  • Framing: 4 blades with individual control, ±120° rotation

  • Frost: 1 soft frost + 1 heavy frost (combinable)

  • Strobe: 0–25 times/sec, high-speed electronic


  • MOVEMENT

  • Pan: 540° (16-bit), bidirectional continuous rotation

  • Tilt: 270° (16-bit), bidirectional continuous rotation.



  • ILLUMINANCE

  • GOBO SYSTEM

  • 7 interchangeable gobos + open

  • Rotating gobo with shaking & positioning function






  • 1 animation wheel (continuous rotation both directions)





  • COLOR SYSTEM

  • 1 Color Wheel (5 colors + open)



  • CTB + CRI



​



  • Rainbow effect with bidirectional rotation

  • CMY Linear Color Mixing

  • CTO Linear Color Temperature Adjustment


  • PRODUCT SIZE & WEIGHT

  • Product Size: 409 × 280 × 716.5 mm

  • Net Weight: 29 kg

  • Flight Case Size:

  • 575 × 555 × 825 mm (1 unit)

  • 950 × 570 × 820 mm (2 units)

  • Gross Weight:

  • 60 kg (1 unit)

  • 102 kg (2 units)


  • IP RATING

  • IP66


  • WORK ENVIRONMENT

  • Maximum Ambient Temperature: 45°C

  • Minimum Operating Temperature: -25°C


  • CERTIFICATIONS & SAFETY
    Evaluated to m SPE-1000 for Canadian installation. U.S. field evaluation available upon request. Designed to comply with applicable CE and RoHS requirements.

Down

Downloads

​

📄 Hydrex-Apex-830-BSWF-User-Guide
📄 Hydrex-Apex-830-BSWF-Data-Sheet​

App
why chooe

Applications

​

The Hydrex Apex 830 BSWF is perfectly suited for a wide range of professional lighting applications:

  • Concerts & Live Events

  • Stage Productions & Theatres

  • Outdoor Festivals

  • Architectural Lighting

  • Theme Parks & Installations

  • TV Studios & Film Production

  • Corporate Events & Exhibitions



Why Choose HYDREX WASHFLOW FX1650 IP

​

  • All-in-one BSWF functionality

  • High-output LED performance with energy efficiency

  • Weatherproof design for indoor & outdoor use

  • Advanced effects for creative lighting designers

  • Reliable, durable, and built for professional use
