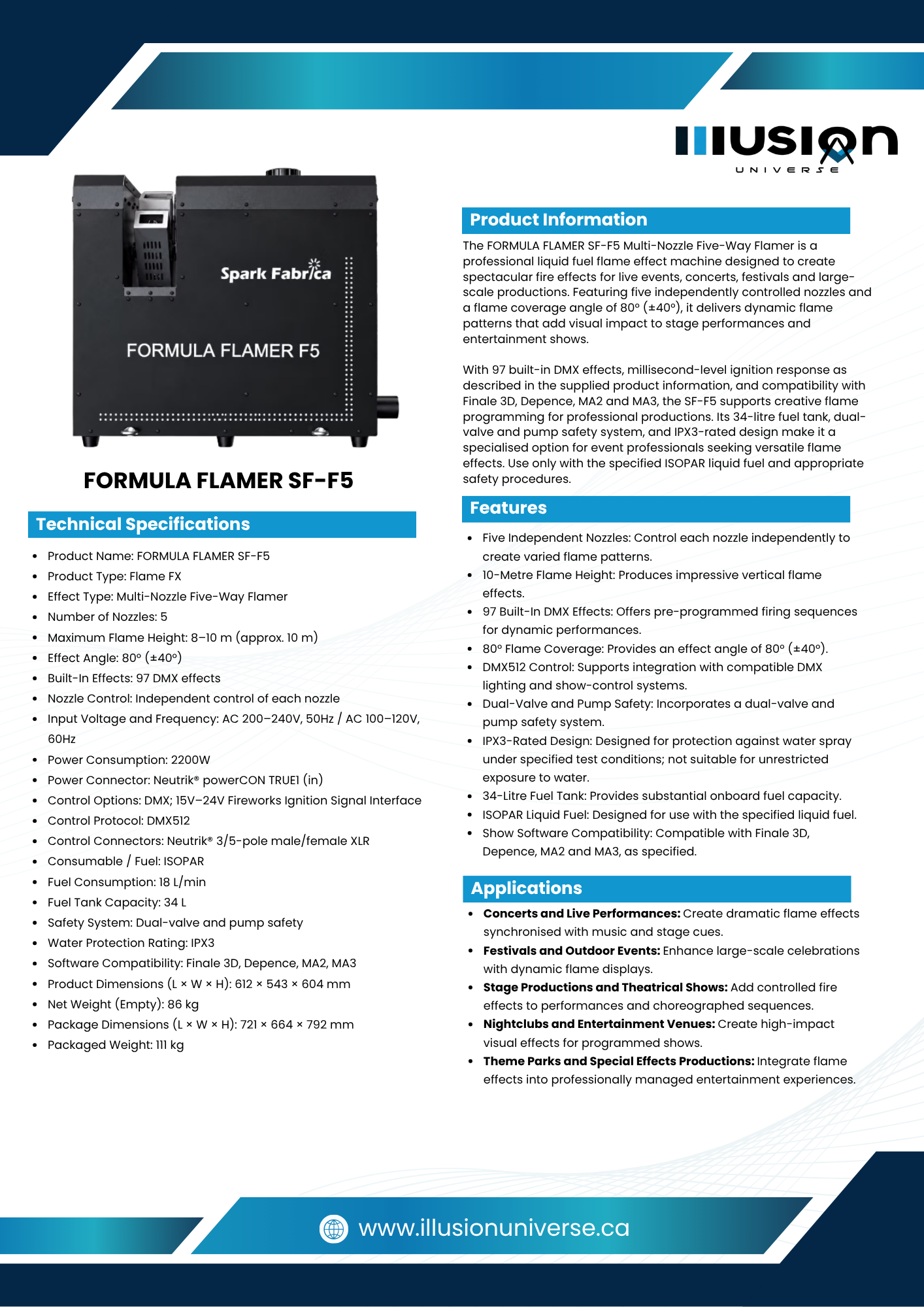

FORMULA FLAMER SF-F5
The FORMULA FLAMER SF-F5 Multi-Nozzle Five-Way Flamer is a professional liquid fuel flame effect machine designed to create spectacular fire effects for live events, concerts, festivals and large-scale productions. Featuring five independently controlled nozzles and a flame coverage angle of 80° (±40°), it delivers dynamic flame patterns that add visual impact to stage performances and entertainment shows.
With 97 built-in DMX effects, millisecond-level ignition response as described in the supplied product information, and compatibility with Finale 3D, Depence, MA2 and MA3, the SF-F5 supports creative flame programming for professional productions. Its 34-litre fuel tank, dual-valve and pump safety system, and IPX3-rated design make it a specialised option for event professionals seeking versatile flame effects. Use only with the specified ISOPAR liquid fuel and appropriate safety procedures.
Features
-
Five Independent Nozzles: Control each nozzle independently to create varied flame patterns.
-
10-Metre Flame Height: Produces impressive vertical flame effects.
-
97 Built-In DMX Effects: Offers pre-programmed firing sequences for dynamic performances.
-
80° Flame Coverage: Provides an effect angle of 80° (±40°).
-
DMX512 Control: Supports integration with compatible DMX lighting and show-control systems.
-
Dual-Valve and Pump Safety: Incorporates a dual-valve and pump safety system.
-
IPX3-Rated Design: Designed for protection against water spray under specified test conditions; not suitable for unrestricted exposure to water.
-
34-Litre Fuel Tank: Provides substantial onboard fuel capacity.
-
ISOPAR Liquid Fuel: Designed for use with the specified liquid fuel.
-
Show Software Compatibility: Compatible with Finale 3D, Depence, MA2 and MA3, as specified.
What are the Technical Specifications of FORMULA FLAMER SF-F5?
-
Product Name: FORMULA FLAMER SF-F5
-
Product Type: Flame FX
-
Effect Type: Multi-Nozzle Five-Way Flamer
-
Number of Nozzles: 5
-
Maximum Flame Height: 8–10 m (approx. 10 m)
-
Effect Angle: 80° (±40°)
-
Built-In Effects: 97 DMX effects
-
Nozzle Control: Independent control of each nozzle
-
Input Voltage and Frequency: AC 200–240V, 50Hz / AC 100–120V, 60Hz
-
Power Consumption: 2200W
-
Power Connector: Neutrik® powerCON TRUE1 (in)
-
Control Options: DMX; 15V–24V Fireworks Ignition Signal Interface
-
Control Protocol: DMX512
-
Control Connectors: Neutrik® 3/5-pole male/female XLR
-
Consumable / Fuel: ISOPAR
-
Fuel Consumption: 18 L/min
-
Fuel Tank Capacity: 34 L
-
Safety System: Dual-valve and pump safety
-
Water Protection Rating: IPX3
-
Software Compatibility: Finale 3D, Depence, MA2, MA3
-
Product Dimensions (L × W × H): 612 × 543 × 604 mm
-
Net Weight (Empty): 86 kg
-
Package Dimensions (L × W × H): 721 × 664 × 792 mm
-
Packaged Weight: 111 kg
Applications
-
Concerts and Live Performances: Create dramatic flame effects synchronised with music and stage cues.
-
Festivals and Outdoor Events: Enhance large-scale celebrations with dynamic flame displays.
-
Stage Productions and Theatrical Shows: Add controlled fire effects to performances and choreographed sequences.
-
Nightclubs and Entertainment Venues: Create high-impact visual effects for programmed shows.
-
Theme Parks and Special Effects Productions: Integrate flame effects into professionally managed entertainment experiences.
Frequently Asked Questions (FAQs)
Q1. What is the FORMULA FLAMER SF-F5?
The FORMULA FLAMER SF-F5 is a professional liquid fuel flame effect machine featuring five nozzles for creating dynamic flame displays at events and live productions.
Q2. What is the maximum flame height of the SF-F5?
The specified flame height is approximately 8–10 metres, with a maximum stated effect height of 10 metres. Actual performance depends on operating conditions and manufacturer specifications.
Q3. How many effects does the FORMULA FLAMER SF-F5 offer?
The machine offers 97 built-in DMX effects for programming varied flame sequences during live performances.
Q4. Which control systems are compatible with the SF-F5?
The SF-F5 supports DMX512 control and is listed as compatible with Finale 3D, Depence, MA2 and MA3. Confirm the required interfaces and software versions before integration.
Q5. What is the fuel tank capacity of the FORMULA FLAMER SF-F5?
The machine has a 34-litre fuel tank and is specified for ISOPAR liquid fuel. Follow the manufacturer's instructions for fuel handling, operation and maintenance.
