Architectural Flexible LED Mesh Display



FlexNova P15 is a next-generation flexible transparent LED mesh screen designed for creative architectural integration, immersive retail environments, and dynamic commercial displays. Powered by a safe and efficient 24V DC low-voltage system, it delivers vibrant RGB visuals while maintaining structural aesthetics and transparency. Engineered for scalability and seamless installation, FlexNova P15 transforms glass, walls, columns, ceilings, and facades into captivating digital surfaces.

​

With its lightweight construction and modular design, FlexNova P15 adapts effortlessly to both flat and curved installations, enabling designers and architects to push creative boundaries without compromising structural integrity. The high transparency rate preserves natural light and visibility, making it ideal for storefront windows and feature facades, while its energy-efficient performance ensures long-term operational savings. Whether enhancing brand storytelling in retail spaces or elevating large-scale architectural projects, FlexNova P15 delivers a perfect balance of innovation, performance, and visual impact.

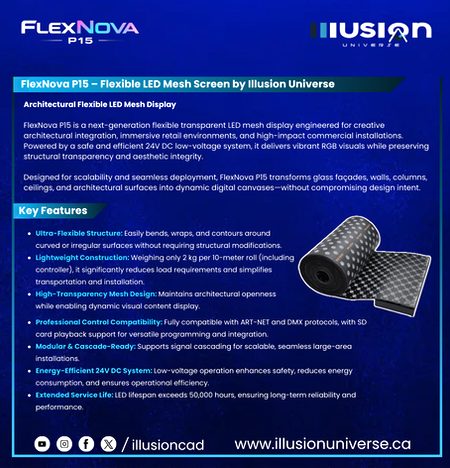

Features



Ultra-Flexible Design: Bend, wrap, and contour around curved or irregular surfaces without structural modification.

Lightweight Construction: Only 2kg per 10m roll, reducing load requirements and simplifying installation.

Transparent Visual Mesh: Maintains building aesthetics while delivering dynamic media content.

Professional Control Compatibility: Supports ART-NET, DMX, and SD card playback for versatile programming.

Modular & Cascade Ready: Easily scalable with signal cascade functionality for large installations.

Energy Efficient 24V System: Low-voltage power supply enhances safety and operational efficiency.

Long Service Life: Over 50,000 hours LED lifespan, ensuring reliable long-term performance.

  • Instagram
  • Facebook
  • YouTube
  • TikTok

  • Electrical Specifications

  • Operating Voltage: 24V DC

  • Maximum Power Consumption: 400W (per 10m roll)

  • Control Protocol: ART-NET / DMX

  • Playback Mode: ART-NET / SD Card

  • Signal Cascade: Supported
    ​

  • Optical Specifications

  • Pixel Pitch: P15 (15mm)

  • LED Type: 2020 RGB

  • Brightness: Up to 300 cd

  • Beam Angle: 120°

  • Grey Scale: 256 Levels

  • Pixel Matrix Count: 16 × 660

  • Viewing Performance: High transparency mesh structure

  • Physical Specifications

  • Standard Length: 10 meters per roll

  • Product Size: 0.24m × 10m

  • Weight (including controller): 2kg​

  • Color: Black

  • Installation Type: Flexible surface mount

  • IP Rating: IP40


  • Environmental Conditions

  • Operating Temperature: -20°C to 65°C

  • Storage Temperature: -20°C to 65°C

Technical Specifications

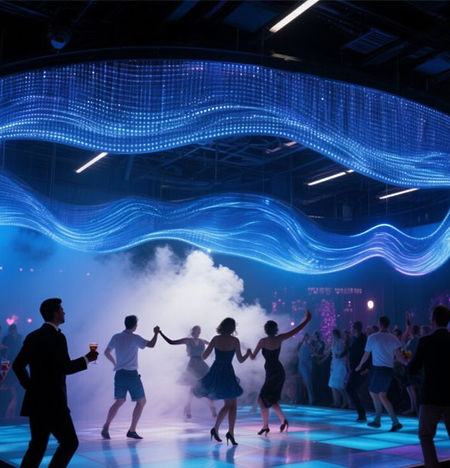

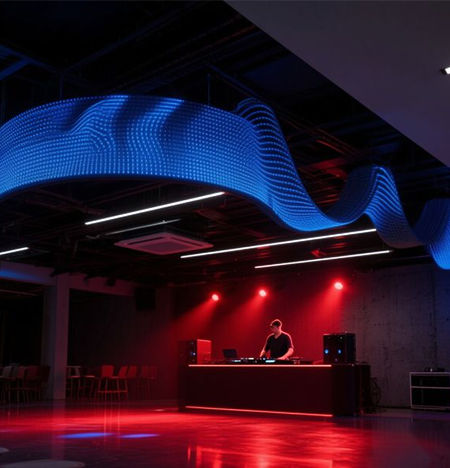

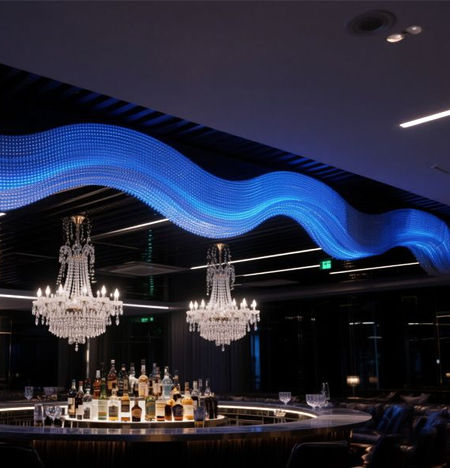

Applications

​

Flex Nova P15 is ideal for:

• Retail Storefront Displays
• Shopping Mall Media Installations
• Glass Facades & Curtain Walls
• Theatres & Entertainment Venues
• Exhibition Booths
• Museums & Art Installations
• Corporate Showrooms
• Commercial Street Decorations
• Creative Architectural Lighting

Downloads

📄 FlexNova-P15-User-Guide
📄 FlexNova-P15-Product-Dimensions

📄 FlexNova-P15-Personalities-File

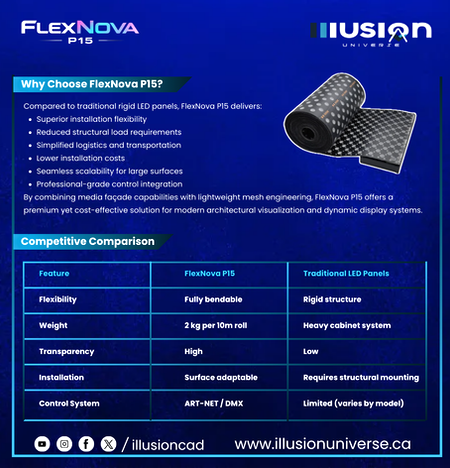

Why Choose Flex Nova P15?

​

Unlike traditional rigid LED panels, Flex Nova P15 offers:
• Greater installation flexibility
• Reduced structural load
• Easier transportation
• Lower installation cost
• Seamless large-area scalability
• Professional-grade control integration

It combines media facade capability with lightweight mesh engineering, making it a cost-effective yet premium solution for modern visual architecture.

3. Competitive advantage

Competitive Advantage

Feature

Flex Nova P15

Traditional LED Panels

Flexibility

Fully bendable

Rigid

Weight

2kg per 10m

Heavy cabinet structure

Transparency

High

Low

Installation

Surface Adaptable

Structural mounting required

Control

ART-NET / DMX

Limited (varies)

FlexNova P15 by Illusion Universe is a 24V flexible transparent LED mesh display with P15 pixel pitch, ART-NET & DMX compatibility, and lightweight roll-based installation. Designed for architectural media facades, retail environments, and creative lighting applications, it offers high flexibility, modular scalability, and professional-grade control integration.

3. FAQ

Frequently Asked Questions

What is a flexible LED mesh screen?

A flexible LED mesh screen is a bendable, lightweight LED display designed for curved surfaces, architectural integration, and transparent installations.

Is FlexNova P15 suitable for glass facades?

Yes, its transparent mesh design makes it ideal for glass and architectural surfaces.

Does it support DMX control?

Yes, FlexNova P15 supports both DMX and ART-NET control protocols.

What is the lifespan of the LEDs?

The LEDs have a service life of over 50,000 hours.
