Technical Specification Sheet

​

Display Specifications

  • Pixel Pitch: 2.5 mm

  • LED Type: SMD2121 (3-in-1)

  • Panel Resolution: 256 × 768 pixels

  • Brightness: 800 NITS (calibrated), >1000 NITS (maximum)

  • Refresh Rate: 3840 Hz

  • Viewing Angle: 140° horizontal / 140° vertical

  • Minimum Viewing Distance: 2.5 meters (8.2 feet)

  • Color Temperature: 6500K

  • Scan Mode : 1/32

​

🛡️ GOB Technology (Glue on Board)

  • Protection: GOB technology provides a protective resin layer over the LED modules

  • Advantages: Enhanced durability, impact resistance, dustproof, and moisture-resistant

  • Ideal Use Cases: High-traffic indoor environments such as showrooms, lobbies, and event venues

​

⚙️ Mechanical Specifications

  • Panel Dimensions: 640 mm × 2082 mm (25.2 in × 81.97 in)

  • Weight: 65 kg (143.3 lbs)

  • Housing Material: Iron SPCC

  • LED Module Material: Glass-filled polycarbonate

  • Mounting Options: Freestanding with optional casters; wall-mounted or suspended installations available

  • Threaded Bolt: M10, 1.5

​

🔌 Electrical Specifications

  • Input Voltage: 100–240 VAC, 50/60 Hz (auto-ranging)

  • Power Consumption:

    • Maximum: 480W

    • Average: 144W

  • Power Linking: Up to 4 units @ 120V

  • Receiver Card: Novastar TB40

  • Scan Mode: 1/32

​

🔗 Cascading & Connectivity

  • Cascading Capability: Connect up to 8 totems side-by-side

  • Total Seamless Width: 5.12 meters (16.8 feet)

  • Connectivity: Wi-Fi, Ethernet, USB, HDMI input

  • Control System: Integrated media player with scheduling; compatible with iOS, Android, and PC

  • Software Features: Remote monitoring, diagnostics, and content managementGitLab

​

✅ Certifications & Compliance

  • CSA Certified: Complies with Canadian Standards Association (CSA) safety and performance standards

  • Operating Temperature: -10°C to 50°C

  • Humidity Range: 10% to 90% RH

  • Ingress Protection: IP40 (front), suitable for indoor use

​

🎯 Applications

  • Retail Environments: Product promotions, digital signage

  • Automotive Showrooms: Vehicle showcases, interactive displays

  • Wedding Venues: Welcome messages, photo slideshows

  • Corporate Events: Presentations, branding

  • Exhibitions & Trade Shows: Dynamic content display, information kiosks



​​

​​​​​

Why Digital Over Print?​​



🚫 Say No to Printing! – Save time, reduce waste, and update your promotions instantly with digital signage.
🌎 Eco-Friendly Solution – No more paper waste or outdated posters—reduce environmental impact.
📊 Better Engagement – Moving visuals grab 5X more attention than static banners.

​



​

​

​

Stage Lighting | DJ Facade

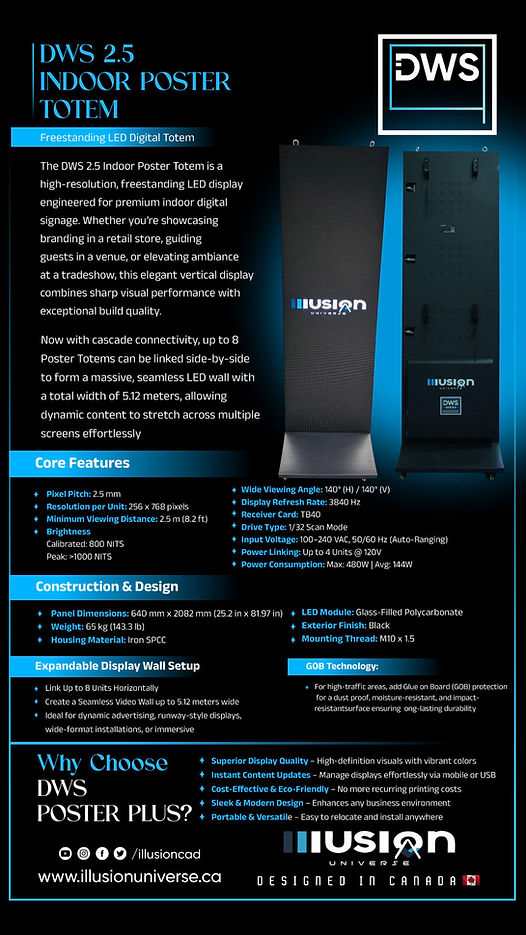

2.5 INDOOR POSTER TOTEM

UPC# : 673324965180

Series: DWS SERIES | Model: DWS 2.5 INDOOR POSTER TOTEM
Type: Freestanding LED Digital Totem | Pixel Pitch: 2.5 mm

​​

The DWS 2.5 Indoor Poster Totem is a high-resolution, freestanding LED display engineered for premium indoor digital signage. Whether you’re showcasing branding in a retail store, guiding guests in a venue, or elevating ambiance at a trade show, this elegant vertical display combines sharp visual performance with exceptional build quality.



Sleek, striking, and designed for high-traffic environments, the DWS 2.5 Indoor Poster from the DWS Series is a freestanding LED signage solution built for premium indoor installations. Ideal for retail stores, lobbies, exhibitions, and more, this unit combines vivid 2.5mm pixel pitch

visuals with robust hardware engineering, ensuring maximum impact and durability in any indoor space.



Now with cascade connectivity, up to 8 Poster Totems can be linked side-by-side to form a massive, seamless LED wall with a total width of 5.12 meters, allowing dynamic content to stretch across multiple screens effortlessly.

​

Available Pixel Pitches:

  • P1.5 mm – Ultra-fine pitch for maximum detail in close-up environments

  • P1.8 mm – Ideal for versatile installations with balanced pixel density

  • P2.5 mm – Optimized for medium-to-long viewing distances

  • Custom configurations available on request

.

​

Key Features:



High-Resolution Display

  • Pixel Pitch: 2.5mm for crisp, vibrant visuals

  • Panel Resolution: 256 x 768

  • Ideal for close-range indoor viewing



GOB Technology (Glue on Board)

  • Impact-resistant, dustproof, and moisture-resistant

  • Adds a protective coating to extend LED lifespan

  • Ideal for public venues and rental applications



CSA Certified

  • Fully CSA Certified for safe electrical performance in Canada

  • Compliant with North American safety standards



Premium Visual Performance

  • Calibrated Brightness: 800 NITS

  • Max Brightness: >1000 NITS

  • Refresh Rate: 3840Hz for smooth video playback

  • Wide Viewing Angle: 140° (H) / 140° (V)



Sleek & Portable Design

  • Dimensions: 640 x 2082 mm (25.2 x 81.97 in)

  • Weight: 65 kg

  • Freestanding vertical totem – ready to plug and play



 Seamless Scalability

  • Cascade up to 8 Totems

  • Create a 5.12-meter wide seamless LED wall



 Smart Hardware

  • Receiver Card: TB40

  • Scan Mode: 1/32

  • Power Linking: 4 units @ 120V

  • Input Voltage: 100–240V (Auto-ranging)
