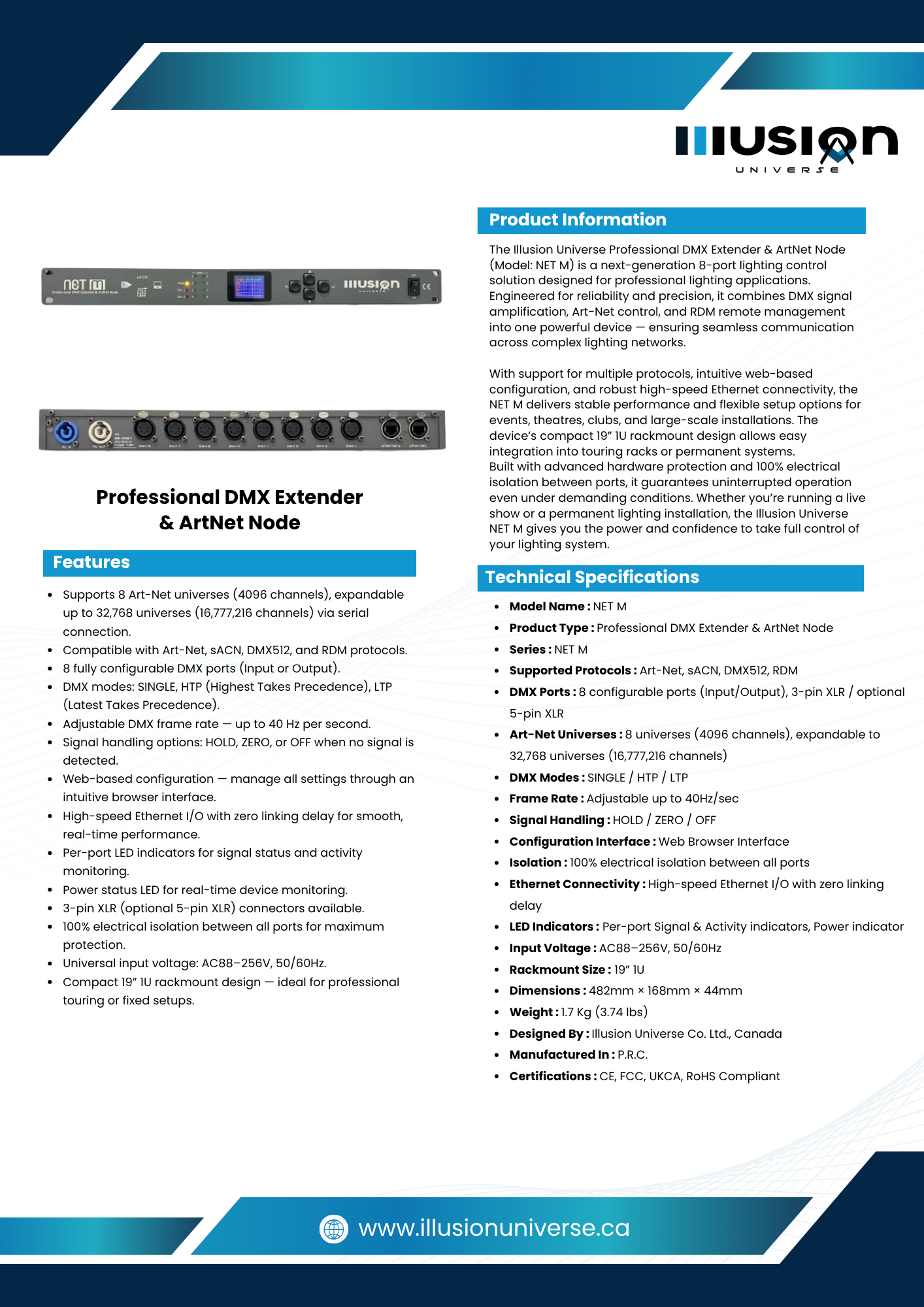

Technical Specification

​

Model Name : NET M

Product Type : Professional DMX Extender & ArtNet Node

Series : NET M

Supported Protocols : Art-Net, sACN, DMX512, RDM

DMX Ports : 8 configurable ports (Input/Output), 3-pin XLR / optional 5-pin XLR

Art-Net Universes : 8 universes (4096 channels), expandable to 32,768 universes (16,777,216 channels)

DMX Modes : SINGLE / HTP / LTP

Frame Rate : Adjustable up to 40Hz/sec

Signal Handling : HOLD / ZERO / OFF

Configuration Interface : Web Browser Interface

Isolation : 100% electrical isolation between all ports

Ethernet Connectivity : High-speed Ethernet I/O with zero linking delay

LED Indicators : Per-port Signal & Activity indicators, Power indicator

Input Voltage : AC88–256V, 50/60Hz

Rackmount Size : 19” 1U

Dimensions : 482mm × 168mm × 44mm

Weight : 1.7 Kg (3.74 lbs)

Designed By : Illusion Universe Co. Ltd., Canada

Manufactured In : P.R.C.

Certifications : CE, FCC, UKCA, RoHS Compliant

Ready to Buy?

​

Upgrade your lighting setup today with the Illusion Universe Professional DMX Extender & ArtNet Node — built for precision, performance, and professional-grade reliability.

Professional DMX Extender & ArtNet Node

​

The Illusion Universe Professional DMX Extender & ArtNet Node (Model: NET M) is a next-generation 8-port lighting control solution designed for professional lighting applications. Engineered for reliability and precision, it combines DMX signal amplification, Art-Net control, and RDM remote management into one powerful device — ensuring seamless communication across complex lighting networks.

​

With support for multiple protocols, intuitive web-based configuration, and robust high-speed Ethernet connectivity, the NET M delivers stable performance and flexible setup options for events, theatres, clubs, and large-scale installations. The device’s compact 19” 1U rackmount design allows easy integration into touring racks or permanent systems.

Built with advanced hardware protection and 100% electrical isolation between ports, it guarantees uninterrupted operation even under demanding conditions. Whether you’re running a live show or a permanent lighting installation, the Illusion Universe NET M gives you the power and confidence to take full control of your lighting system.

​

Features

​

  • Supports 8 Art-Net universes (4096 channels), expandable up to 32,768 universes (16,777,216 channels) via serial connection.

  • Compatible with Art-Net, sACN, DMX512, and RDM protocols.

  • 8 fully configurable DMX ports (Input or Output).

  • DMX modes: SINGLE, HTP (Highest Takes Precedence), LTP (Latest Takes Precedence).

  • Adjustable DMX frame rate — up to 40 Hz per second.

  • Signal handling options: HOLD, ZERO, or OFF when no signal is detected.

  • Web-based configuration — manage all settings through an intuitive browser interface.

  • High-speed Ethernet I/O with zero linking delay for smooth, real-time performance.

  • Per-port LED indicators for signal status and activity monitoring.

  • Power status LED for real-time device monitoring.

  • 3-pin XLR (optional 5-pin XLR) connectors available.

  • 100% electrical isolation between all ports for maximum protection.

  • Universal input voltage: AC88–256V, 50/60Hz.

  • Compact 19” 1U rackmount design — ideal for professional touring or fixed setups.

Applications

​

  • Stage and concert lighting control

  • Touring and rental lighting systems

  • Nightclubs, theatres, and entertainment venues

  • Architectural and event lighting installations

  • Integration with professional lighting consoles and media servers

Why Choose Illusion Universe NET M

​

  • Professional-Grade Reliability: Designed and tested to deliver consistent performance in demanding environments.

  • Versatile Connectivity: Compatible with all major lighting consoles and Art-Net controllers.

  • Future-Ready Design: Supports both Art-Net and sACN for long-term compatibility with evolving lighting systems.

  • Global Power Compatibility: Wide AC input range (88–256V) suitable for international use.

  • Precision Engineering: 100% electrical isolation and high-speed Ethernet ensure flawless signal integrity.

  • Trusted Brand Support: Backed by Illusion Universe’s global service, warranty, and technical expertise.
