COLOR SHAFT CRYSTAL

COLOR SHAFT CRYSTAL


Colorshaft Crystal by Illusion Universe is a revolutionary compact moving light fixture engineered to redefine visual lighting experiences. Designed for professionals who demand both innovation and performance, it delivers an extraordinary fusion of high-intensity illumination, precision control, and immersive effects. Equipped with 150 individually controllable RGB SMD LEDs and seamless 360° continuous PAN and TILT movement, it opens up limitless creative possibilities for lighting designers and production teams.

​

At the core of its brilliance lies a uniquely crafted reflective head featuring 15 dynamically rotating “wings,” creating a breathtaking sci-fi-inspired “blackhole” simulation effect. This signature visual transforms ordinary environments into captivating, futuristic atmospheres—drawing audiences into a mesmerizing world of motion, color, and light.

​

Built to perform across diverse environments, from high-end nightclubs and large-scale festivals to television productions and immersive installations, the Colorshaft Crystal offers unmatched versatility and reliability. Its advanced pixel mapping capabilities, smooth motion precision, and powerful output make it an essential tool for creating unforgettable visual moments.

​

Whether you aim to elevate stage performances, enhance architectural spaces, or craft immersive visual storytelling, the Colorshaft Crystal sets a new benchmark in LED effect lighting—where technology meets

Features



  • 150 × 0.25W RGB 3535 SMD LEDs

  • Individually controllable pixels for custom pixel mapping

  • 360° Continuous PAN/TILT Movement

  • Smooth, fast, and precise 3-phase motors with 8/16-bit resolution.

  • Sci-Fi Inspired “Blackhole” Effect.

  • Rotating “wings” and reflective head simulate stunning galaxy-like visuals

  • Multi-Protocol Compatibility

  • DMX512, RDM, Art-Net for flexible control integration

  • Broadcast-Ready

  • Flicker-free operation for TV and film production.

  • Advanced Dimming
    0–100% linear dimming with 4 dimming curves (Standard, Linear, Square, Inv. Square).

  • Multi-Mode Control
    Sound-active, auto-run, master-slave, and DMX with up to 190 channels

  • User-Friendly Interface
    2.8” TFT LCD display with multi-language support and reversible screen

  • Robust, Modern Housing
    Fireproof ABS-PC and metal skeleton design with invisible side handles

  • Efficient Cooling System
    Intelligent fan cooling and natural heat dissipation.

  • Instagram
  • Facebook
  • YouTube
  • TikTok
Features
gallery

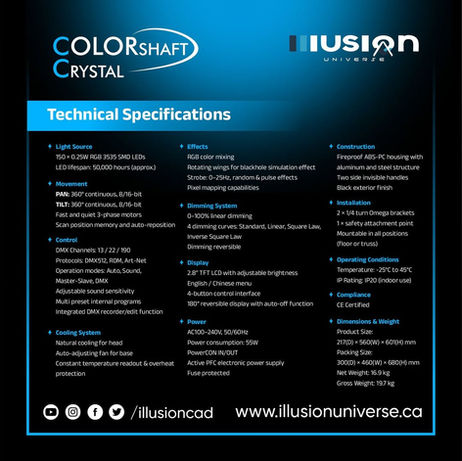

Technical Specifications

  • Light Source:

  • 150 × 0.25W RGB 3535 SMD LEDs
    LED lifespan: 50,000 hours (approx.)


  • Movement

  • PAN: 360° continuous, 8/16-bit
    TILT: 360° continuous, 8/16-bit
    Fast and quiet 3-phase motors
    Scan position memory and auto-reposition
    ​

  • Control

  • DMX Channels: 13 / 22 / 190
    Protocols: DMX512, RDM, Art-Net
    Operation modes: Auto, Sound, Master-Slave, DMX
    Adjustable sound sensitivity
    Multi preset internal programs
    Integrated DMX recorder/edit function.​
    ​

  • Cooling System

  • Natural cooling for head
    Auto-adjusting fan for base
    Constant temperature readout & overheat protection


  • Effects

  • RGB color mixing
    Rotating wings for blackhole simulation effect
    Strobe: 0–25Hz, random & pulse effects
    Pixel mapping capabilities


  • Dimensions & Weight

  • Product Size: 270(L) × 560(W) × 601(H) mm
    Packing Size: 300(L) × 600(W) × 680(H) mm
    Net Weight: 16.9 kg
    Gross Weight: 19.7 kg

  • Dimming System

  • 0–100% linear dimming
    4 dimming curves: Standard, Linear, Square Law, Inverse Square Law
    Dimming reversible.


  • Display

  • 2.8” TFT LCD with adjustable brightness
    English / Chinese menu
    4-button control interface
    180° reversible display with auto-flip function


  • Power

  • AC100–240V, 50/60Hz
    Power consumption: 550W
    PowerCON IN/OUT
    Active PFC electronic power supply
    Fuse protected


  • Construction

  • Fireproof ABS-PC housing with aluminum and steel structure
    Two side invisible handles
    Black exterior finish


  • Installation

  • 2 × 1/4 turn Omega brackets
    1 safety attachment point
    Mountable in all positions (floor or truss)


  • Operating Conditions

  • Temperature: -25°C to 45°C
    IP Rating: IP20 (indoor use)


  • CERTIFICATIONS & SAFETY

  • Evaluated to m SPE-1000 for Canadian installation. U.S. field evaluation available upon request. Designed to comply with applicable CE and RoHS requirements.

  • Thermal cutoff, head-lock transport, fixture reset.

TS

What Are the Applications of Colorshaft Crystal?


  • Live Concerts & Stage Productions

  • Corporate Events & Conferences

  • Wedding & Social Events

  • Nightclubs & DJ Setups

  • Theatres & Auditoriums

  • TV Studios & Broadcast Lighting

  • Rental & Production Companies

  • Architectural & Indoor Installations

  • Fashion Shows & Exhibitions

  • Religious & Cultural Events

Applications
Ready to Transform Your Lighting with Colorshaft Crystal?


Order the Colorshaft Crystal Today!
Experience unmatched precision, powerful output, and stunning effects—perfect for concerts, clubs, and pro stages.

Call Now: +1 647-860-7330
Shop Online: www.illusionuniverse.ca

Fast Shipping Across Canada & USA

Professional Support | Dealer Pricing Available

Contact us
​Frequently Asked Questions (FAQs)


1. What is the Colorshaft Crystal?

The Colorshaft Crystal is a compact pixel-controlled LED moving head fixture featuring 150 individually controllable RGB LEDs, continuous 360° PAN/TILT movement, and a unique rotating-wing blackhole effect.

​

2. What type of effects does the Colorshaft Crystal produce?

The Colorshaft Crystal produces RGB color effects, pixel-mapped visuals, strobe effects, and its signature sci-fi-inspired blackhole effect created by 15 rotating reflective wings.


3. Can the Colorshaft Crystal be used for professional stage lighting?

Yes. The Colorshaft Crystal is designed for professional applications including concerts, festivals, nightclubs, theatres, TV studios, corporate events, weddings, exhibitions, and production environments.

​

4. What control protocols does the Colorshaft Crystal support?

The Colorshaft Crystal supports DMX512, RDM, and Art-Net. It also offers Auto, Sound, Master-Slave, and DMX operating modes with up to 190 DMX channels.

​

5. Is the Colorshaft Crystal suitable for indoor installations?

Yes. The Colorshaft Crystal has an IP20 rating and is designed for indoor use, including stages, clubs, studios, theatres, events, exhibitions, and architectural installations.
