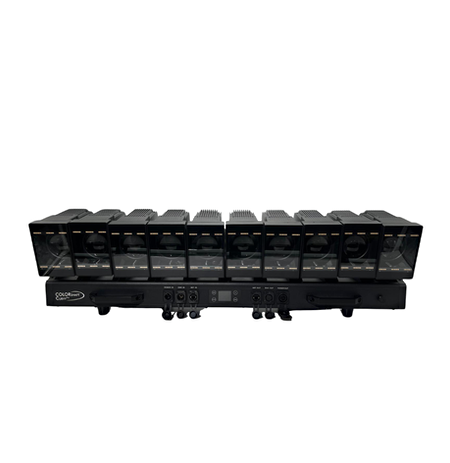

COLORSHAFT CURVY PRO

COLORSHAFT CURVY PRO is a next-generation hybrid multi-beam tilting system engineered for high-impact visual performance across touring, broadcast, and outdoor environments. Built to meet the demands of modern large-scale productions, it delivers exceptional power, precision, and reliability in every setting.

​

Combining intense RGBW beam output, high-power white light engines, and advanced pixel-mapped motion, it offers a seamless fusion of brightness, color depth, and dynamic effects — delivering unmatched versatility within a single, intelligent fixture.

​

Designed by Illusion Universe, this system empowers lighting designers to craft rich, layered visual compositions — transitioning effortlessly from razor-sharp aerial beams to expansive cinematic washes. With its unique motion capabilities and hybrid performance architecture, it unlocks new creative possibilities without compromise, setting a new benchmark in professional lighting design.

​

Engineered as a complete lighting solution, COLORSHAFT CURVY PRO reduces the need for multiple fixtures by integrating beam, wash, and effect capabilities into one cohesive system. This not only enhances creative flexibility but also optimizes rigging efficiency, programming speed, and overall production value — making it an ideal choice for high-end shows where performance and impact are critical.

Features

Features

  • Light Engine (Core Differentiator)

  • Full-Spectrum White Control

  • Advanced Optical Performance

  • Pixel Control & Programming

  • Dynamic Curved Motion

  • Professional Outdoor Build

  • Broadcast-Grade Performance

  • Instagram
  • Facebook
  • YouTube
  • TikTok

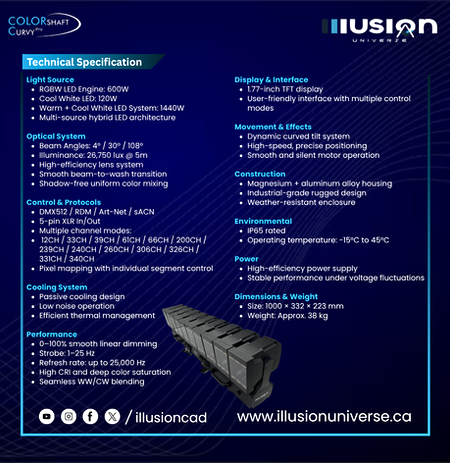

Technical Specifications

TS

  • Light Source
    RGBW LED Engine: 600W
    Cool White LED: 120W
    Warm + Cool White LED System: 1440W
    Total LED Power Architecture: Multi-source hybrid system


  • Optical System
    Beam Angles:
    4° (Ultra Narrow Beam)
    30° (RGBW Wide Beam)
    108° (WW/CW Flood Wash)
    Illuminance: 26,750 lux @ 5m
    High-efficiency optical lens system
    Smooth beam-to-wash transition
    Uniform color mixing with no shadows


  • Control & Protocols
    Protocols: DMX512 / RDM / Art-Net / sACN
    Data Connection: 5-pin XLR In/Out
    Multiple DMX Channel Modes:
    12CH / 33CH / 39CH / 61CH / 66CH
    200CH / 239CH / 240CH / 260CH
    306CH / 326CH / 331CH / 340CH
    Pixel Mapping: Supported (individual segment control)
    Advanced programming compatibility


  • Cooling System

  • Passive cooling system (low noise operation)

  • Efficient thermal management for long runtime

  • Performance
    Dimming: 0–100% smooth linear dimming
    Strobe: 1–25 Hz variable speed
    Refresh Rate: Up to 25,000 Hz (flicker-free for broadcast)
    High color rendering and deep saturation
    Seamless color temperature blending (WW/CW system)


  • Display & Interface
    Display: 1.77-inch TFT screen
    User-friendly control interface
    Menu navigation with multiple operation modes


  • Movement & Effects
    Dynamic curved tilt system
    Pixel-based motion effects
    High-speed and precise positioning
    Smooth and silent motor operation


  • Construction
    Housing Material: Magnesium + Aluminum Alloy
    Rugged industrial-grade design
    Weather-resistant construction


  • Environmental

  • IP Rating: IP65 (Outdoor ready)

  • Operating Temperature: -15°C to 45°C

  • Suitable for touring, outdoor, and broadcast use


  • Power

  • High-efficiency power supply system

  • Stable performance under voltage fluctuations


  • Dimensions & Weight

  • Size: 1000 × 332 × 223 mm

  • Weight: ~38 kg

TS
Gallery

  • LIGHT ENGINE (CORE DIFFERENTIATOR)
    Triple-System Hybrid Source
    • 600W RGBW LED Engine → Saturated colors + aerial beams
    • 120W Cool White LED → Sharp, clean highlights
    • 1440W Warm + Cool White LED System → Massive wash + color temperature control

    Total System Design:
    600W RGBW + 120W CW + 1440W WW/CW LED

    This architecture delivers:
    Deep color saturation
    High-intensity white output
    Smooth blending between beam and wash

  • PIXEL CONTROL & PROGRAMMING

    • Multi-segment pixel mapping
    • Advanced effects: wave, chase, tilt sweep, color flow
    • Up to 300+ DMX channels

    Designed for high-end show programming

  • FULL-SPECTRUM WHITE CONTROL
    Adjustable from 1800K to 10,000K
    Seamless transition between warm tungsten and crisp daylight
    Ideal for concerts, TV, film, and architectural use


  • ADVANCED OPTICAL PERFORMANCE
    • 4° Narrow Beam → Ultra-sharp aerial shafts
    • 30° RGBW Wide Mode → Expanded beam coverage
    • 108° WW/CW Flood → Full-stage wash capability

​

One fixture replaces: Beam Light + Wash Light + Effect Bar

  • DYNAMIC CURVED MOTION

    Precision tilt system enables:
    • Smooth synchronized movement
    • Curved beam sweeps
    • Layered aerial structures

    Creates a signature “Curvy” visual effect unique to Illusion Universe

  • DYNAMIC CURVED MOTION

    Precision tilt system enables:
    • Smooth synchronized movement
    • Curved beam sweeps
    • Layered aerial structures

    Creates a signature “Curvy” visual effect unique to Illusion Universe

  • PROFESSIONAL OUTDOOR BUILD

    • IP65 rated
    • Fully sealed for dust & rain
    • Operating range: -15°C to 45°C

    Creates a signature “Curvy” visual effect unique to Illusion Universe

Applications

​

• Concert Touring
• DJ & Festival Stages
• Broadcast & Film Production
• Outdoor Events
• Architectural Lighting

Applications

POSITIONING STATEMENT


COLORSHAFT CURVY PRO is not just a fixture — it’s a complete lighting system.

It replaces multiple fixtures while delivering:
• Higher output
• Greater flexibility
• Unique motion identity

Designed to compete at the highest level — and stand out.
