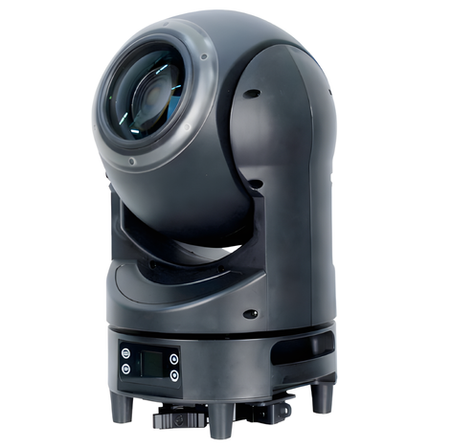

Apex LB 120
The Apex LB 120 is a next-generation IP65-rated laser moving beam fixture designed for high-end professional lighting applications where performance, reliability, and visual impact are essential. Engineered with a powerful 120W laser engine and precision optical system, the fixture delivers ultra-sharp aerial beam effects, vibrant color output, and exceptional long-throw projection capabilities for both indoor and outdoor productions.
Built to perform in demanding environments, the Apex LB 120 combines advanced CMY color mixing, dynamic prism effects, smooth endless pan & tilt movement, and professional-grade control options to create immersive lighting experiences for concerts, festivals, stadium events, touring productions, architectural installations, and live entertainment venues.
Its rugged waterproof construction, high-speed effect capabilities, and touring-ready design make it an ideal solution for lighting professionals seeking powerful beam performance with maximum durability and creative flexibility. Whether used for large-scale outdoor shows or premium stage productions, the Apex LB 120 delivers consistent output, precision movement, and stunning visual effects that elevate any event experience.
Features
-
Powerful 120W laser engine with high-intensity beam output
-
IP65 waterproof design for reliable outdoor performance
-
Ultra-narrow 1.2° beam angle for sharp and focused projections
-
Advanced CMY color mixing system for smooth color transitions
-
Multiple static gobos for dynamic visual effects
-
Dual rotating prism effects for aerial beam enhancement
-
0–100% linear frost for beam softening and wash-style effects
-
Endless 360° pan & tilt movement with 16-bit precision control
-
Adjustable high-speed strobe effects up to 25Hz
-
Flicker-free operation with adjustable LED frequency up to 24,000Hz
-
Support for DMX512, RDM, Auto, Sound Active, and Master/Slave modes
-
Robust aluminum alloy die-cast housing for touring durability
Technical Specifications
-
Power System
-
Voltage: AC110-240V, 50/60Hz
-
Power: 160W
-
Optical System
-
Light Source: 120W Laser Engine + 36pcs 0.5W RGB 3in1 LED
-
Light Source Life: 20,000 hours
-
Lens Diameter: 126mm
-
Beam Angle: 1.2°
-
Frost: 0-100% linear Frost
-
Body Feature
-
Housing: Aluminum Alloy Diecast + plastic
-
Working Environment: -20°C ~ 45°C
-
IP Rate: IP65 waterproof grade design
-
Product Size: 280 × 268 × 429mm
-
Packing Size: 545 × 375 × 380mm
-
Net Weight: 16.95kgs
-
Gross Weight: 18.90kgs
-
Dynamic Effect
-
Color 1: 15 colors + Open
-
Color 2: CMY Color Mixing
-
Static Gobo: 29 static Gobos + Open
-
Prism: 6-linear Prism and 8-facet Prism with bi-directional rotation at variable speed
-
Strobe: Shutter speed adjustable from 1-25Hz
-
LED Frequency: 600Hz-24,000Hz Adjustable
-
Control System
-
Pan/Tilt: 360° endless pan & tilt movement, 16 bit smooth and precise resolution for PAN/TILT movement
-
Control Mode: DMX 512, Master/Slave, Work Auto, Sound Activated, Support RDM control
-
DMX Channels: 33/41 DMX Channels
-
DMX Connector: 3-PIN IP XLR IN/OUT
-

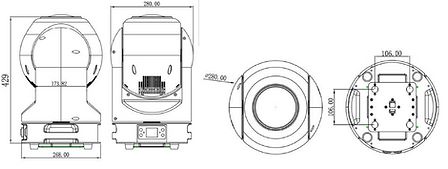

Dimensions
Where Can the Apex LB 120 Be Used?
The Apex LB 120 is ideal for a wide range of professional lighting applications, including:
-
Concerts & Music Festivals
-
Stadium & Arena Productions
-
Outdoor Events & Touring Shows
-
Corporate Events & Product Launches
-
Architectural & Landmark Lighting
-
Nightclubs & Entertainment Venues
-
Stage Productions & Live Performances
-
Wedding Productions & Luxury Events
-
Theme Parks & Special Installations
Why Choose Apex LB 120?
-
Exceptional Beam Performance: The advanced laser engine produces razor-sharp beams with superior brightness and long-distance projection capabilities, making it ideal for large venues and outdoor environments.
-
Built for Outdoor Reliability: Its IP65-rated waterproof construction ensures dependable operation in challenging weather conditions, making it suitable for permanent installations and outdoor productions.
-
Professional Creative Effects: With CMY color mixing, static gobos, dual prism effects, frost, and high-speed strobe functionality, the fixture offers limitless creative possibilities for lighting designers.
-
Precision Motion Control: The endless pan & tilt movement combined with 16-bit smooth positioning delivers highly accurate and fluid motion effects for professional show programming.
-
Touring-Grade Construction: Manufactured using durable aluminum alloy die-cast housing, the Apex LB 120 is engineered for the rigors of continuous touring and heavy-duty event usage.
Frequently Asked Questions (FAQs)
1. What is the Apex LB 120?
The Apex LB 120 is a professional 120W laser moving beam fixture designed for concerts, festivals, stadium productions, touring shows, architectural lighting, and other demanding indoor and outdoor applications. It features an IP65-rated housing, a narrow 1.2° beam angle, CMY color mixing, prisms, gobos, and endless pan & tilt movement.
2. Is the Apex LB 120 suitable for outdoor use?
Yes. The Apex LB 120 features an IP65-rated waterproof design, making it suitable for outdoor productions, touring events, festivals, architectural installations, and other environments where protection against dust and water is important.
3. What beam angle does the Apex LB 120 have?
The Apex LB 120 produces an ultra-narrow 1.2° beam, allowing it to create sharp, concentrated aerial beams with strong long-throw projection for large venues and outdoor events.
4. What effects does the Apex LB 120 offer?
The Apex LB 120 includes CMY color mixing, 15 colors plus open, 29 static gobos, a 6-linear prism, an 8-facet prism, 0–100% linear frost, and adjustable strobe effects from 1–25Hz. These features provide a wide range of creative beam and aerial effects.
5. What control modes does the Apex LB 120 support?
The Apex LB 120 supports DMX512, RDM, Master/Slave, Auto, and Sound Activated modes. It provides 33/41 DMX channels and uses 3-pin IP XLR connectors for professional control and integration.
