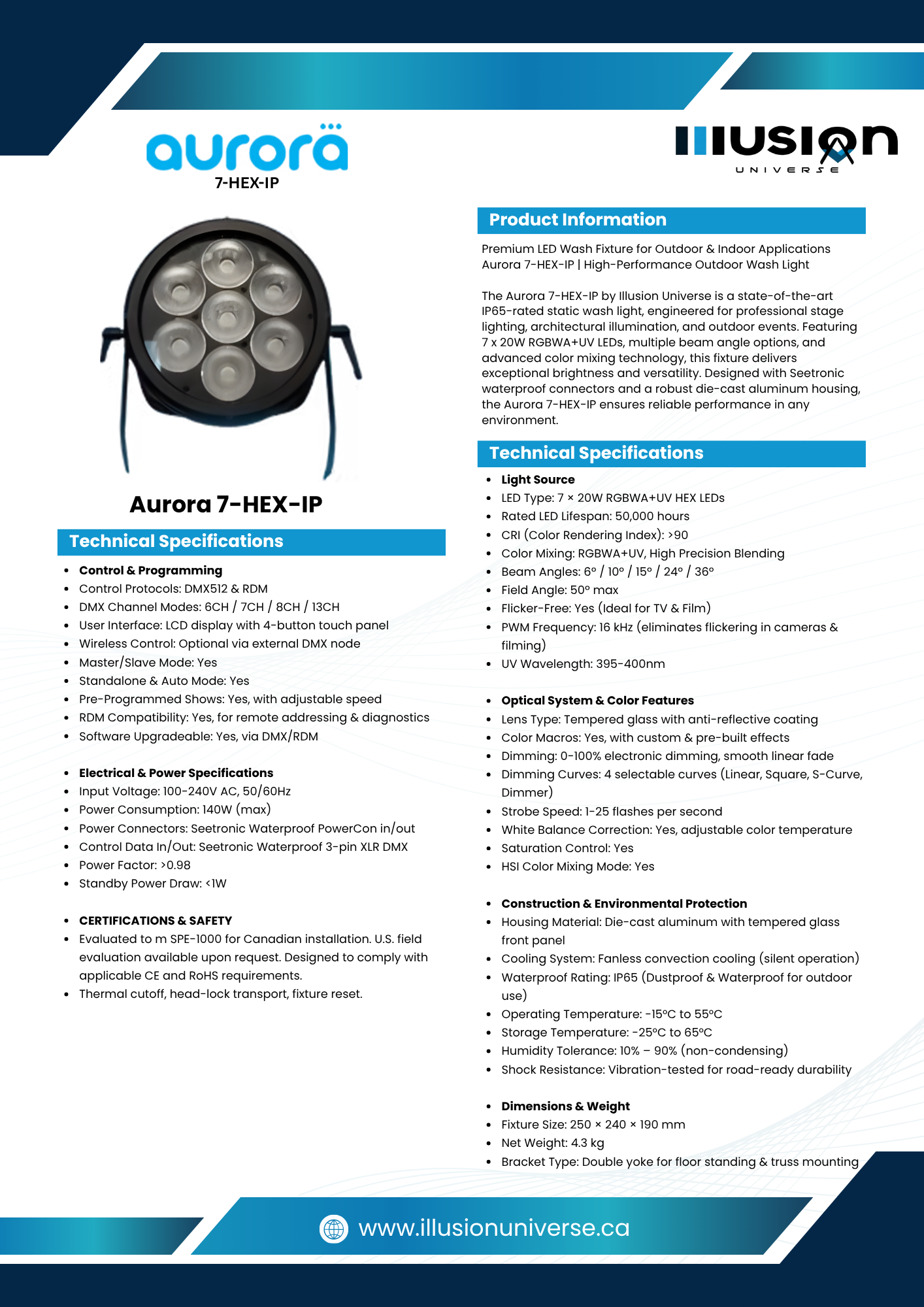

Aurora 7-HEX-IP   – Technical Specifications

​

Light Source

  • LED Type: 7 × 20W RGBWA+UV HEX LEDs

  • Rated LED Lifespan: 50,000 hours

  • CRI (Color Rendering Index): >90

  • Color Mixing: RGBWA+UV, High Precision Blending

  • Beam Angles: 6º / 10º / 15º / 24º / 36º

  • Field Angle: 50º max

  • Flicker-Free: Yes (Ideal for TV & Film)

  • PWM Frequency: 16 kHz (eliminates flickering in cameras & filming)

  • UV Wavelength: 395-400nm

​

Optical System & Color Features

  • Lens Type: Tempered glass with anti-reflective coating

  • Color Macros: Yes, with custom & pre-built effects

  • Dimming: 0-100% electronic dimming, smooth linear fade

  • Dimming Curves: 4 selectable curves (Linear, Square, S-Curve, Dimmer)

  • Strobe Speed: 1-25 flashes per second

  • White Balance Correction: Yes, adjustable color temperature

  • Saturation Control: Yes

  • HSI Color Mixing Mode: Yes



Construction & Environmental Protection

  • Housing Material: Die-cast aluminum with tempered glass front panel

  • Cooling System: Fanless convection cooling (silent operation)

  • Waterproof Rating: IP65 (Dustproof & Waterproof for outdoor use)

  • Operating Temperature: -15°C to 55°C

  • Storage Temperature: -25°C to 65°C

  • Humidity Tolerance: 10% – 90% (non-condensing)

  • Shock Resistance: Vibration-tested for road-ready durability

​

Dimensions & Weight

  • Fixture Size: 250 × 240 × 190 mm

  • Net Weight: 4.3 kg

  • Bracket Type: Double yoke for floor standing & truss mounting



​​

​​​​​

​

Why Choose the Aurora 7-HEX-IP?

​

✅ Designed for Professional Use – Ideal for concerts, live shows, and installations
✅ Superior Color Accuracy – High CRI (>90) & HEX RGBWA+UV technology
✅ Weatherproof & Durable – IP65-rated housing withstands rain, dust, and extreme conditions
✅ Silent Operation – Fanless cooling system for noise-sensitive environments
✅ Energy-Efficient & Reliable – 50,000-hour LED lifespan with low power draw

​

Ideal Applications​

🎤 Live Concerts & Festivals – High-output, immersive stage lighting
🏛 Architectural & Outdoor Lighting – Perfect for building facades, landscapes, and monuments
🎭 Theater & Film Production – Flicker-free lighting for professional broadcasting & cinema
🎧 Nightclubs & Entertainment Venues – Creates dynamic color effects
🏰 Theme Parks & Outdoor Venues – Built to withstand extreme weather conditions

​

​

See It in Action – Visit Our Showroom!

Experience the Aurora HEX Series live at Illusion Universe! Visit our showroom for a hands-on demo and expert consultation.

​

​

​


7-HEX-IP

UPC# : 673324965098

Premium LED Wash Fixture for Outdoor & Indoor Applications

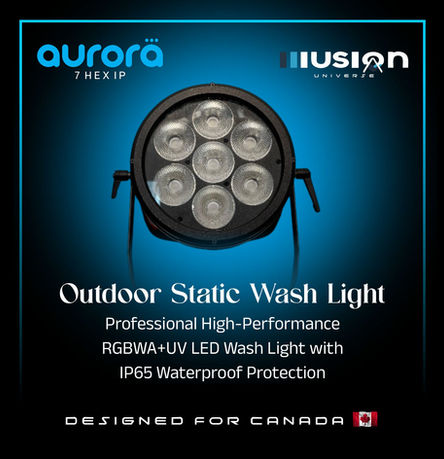

Aurora 7-HEX-IP | High-Performance Outdoor Wash Light

​

The Aurora 7-HEX-IP by Illusion Universe is a state-of-the-art IP65-rated static wash light, engineered for professional stage lighting, architectural illumination, and outdoor events. Featuring 7 x 20W RGBWA+UV LEDs, multiple beam angle options, and advanced color mixing technology, this fixture delivers exceptional brightness and versatility. Designed with Seetronic waterproof connectors and a robust die-cast aluminum housing, the Aurora 7-HEX-IP ensures reliable performance in any environment.

​

Key Features:

✔ Powerful Illumination: 7 × 20W HEX LEDs (RGBWA+UV) for vivid, dynamic lighting effects
✔ IP65 Waterproof Rating: Built for outdoor events, concerts, and permanent installations
✔ Seetronic Waterproof Connectors: Ensures secure, weatherproof connections
✔ Customizable Beam Angles: 6º / 10º / 15º / 24º / 36º for precise lighting control
✔ Advanced Dimming & Strobe: Smooth 0-100% dimming and adjustable strobe effect (1-25 FPS)
✔ Smart LCD Display: User-friendly 4-button touch control panel
✔ Multiple Control Options: DMX512 & RDM Protocols for seamless integration
✔ Certified for Quality & Safety: CSA, CE & RoHS complian

​​



Control & Programming

  • Control Protocols: DMX512 & RDM

  • DMX Channel Modes: 6CH / 7CH / 8CH / 13CH

  • User Interface: LCD display with 4-button touch panel

  • Wireless Control: Optional via external DMX node

  • Master/Slave Mode: Yes

  • Standalone & Auto Mode: Yes

  • Pre-Programmed Shows: Yes, with adjustable speed

  • RDM Compatibility: Yes, for remote addressing & diagnostics

  • Software Upgradeable: Yes, via DMX/RDM

​

Control & Programming

  • Input Voltage: 100-240V AC, 50/60Hz

  • Power Consumption: 140W (max)

  • Power Connectors: Seetronic Waterproof PowerCon in/out

  • Control Data In/Out: Seetronic Waterproof 3-pin XLR DMX

  • Power Factor: >0.98

  • Standby Power Draw: <1W

​



​



Compliance & Certifications

  • CE Certification

  • LVD (2014/35/EU): Safety of electrical equipment supplied at low voltage

  • EMC (2014/30/EU): Electromagnetic Compatibility

  • RoHS (2011/65/EU): Restriction of hazardous substances

  • ​CSA Certified (Canadian Standards Association – Safety & Performance Compliance for North America)

  • Safety Features: Overheat protection, auto shutdown on failure

  • Overvoltage Protection: Yes

  • Short Circuit Protection: Yes

​
