12-HEX-IP

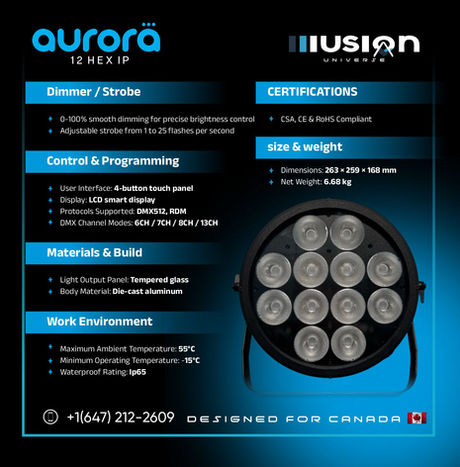

Aurora 12-HEX-IP
UPC# : 673324965091
Premium LED Wash Fixture for Outdoor & Indoor Applications
Aurora 12-HEX-IP | High-Performance Outdoor Wash Light
The Aurora 12-HEX-IP by Illusion Universe is a state-of-the-art IP65-rated static wash light, engineered for professional stage lighting, architectural illumination, and outdoor events. Featuring 12 x 20W RGBWA+UV LEDs, multiple beam angle options, and advanced color mixing technology, this fixture delivers exceptional brightness and versatility. Designed with Seetronic waterproof connectors and a robust die-cast aluminum housing, the Aurora 7-HEX-IP ensures reliable performance in any environment.
Features
✔ Powerful Illumination: 12 × 20W HEX LEDs (RGBWA+UV) for vivid, dynamic lighting effects
✔ IP65 Waterproof Rating: Built for outdoor events, concerts, and permanent installations
✔ Seetronic Waterproof Connectors: Ensures secure, weatherproof connections
✔ Customizable Beam Angles: 6º / 10º / 15º / 24º / 36º for precise lighting control
✔ Advanced Dimming & Strobe: Smooth 0-100% dimming and adjustable strobe effect (1-25 FPS)
✔ Smart LCD Display: User-friendly 4-button touch control panel
✔ Multiple Control Options: DMX512 & RDM Protocols for seamless integration
✔ Certified for Quality & Safety: CSA, CE & RoHS compliant
What are the Technical Specifications of Aurora 12-HEX-Ip
-
Light Source
-
LED Type: 12 × 20W RGBWA+UV HEX LEDs
-
Rated LED Lifespan: 50,000 hours
-
CRI (Color Rendering Index): >90
-
Color Mixing: RGBWA+UV, High Precision Blending
-
Beam Angles: 6º / 10º / 15º / 24º / 36º
-
Field Angle: 50º max
-
Flicker-Free: Yes (Ideal for TV & Film)
-
PWM Frequency: 16 kHz (eliminates flickering in cameras & filming)
-
UV Wavelength: 395-400nm
-
Optical System
-
Lens Type: Tempered glass with anti-reflective coating
-
Color Macros: Yes, with custom & pre-built effects
-
Dimming: 0-100% electronic dimming, smooth linear fade
-
Dimming Curves: 4 selectable curves (Linear, Square, S-Curve, Dimmer)
-
Strobe Speed: 1-25 flashes per second
-
White Balance Correction: Yes, adjustable color temperature
-
Saturation Control: Yes
-
HSI Color Mixing Mode: Yes
-
Construction & Environmental Protection
-
Housing Material: Die-cast aluminum with tempered glass front panel
-
Cooling System: Fanless convection cooling (silent operation)
-
Waterproof Rating: IP65 (Dustproof & Waterproof for outdoor use)
-
Operating Temperature: -15°C to 55°C
-
Storage Temperature: -25°C to 65°C
-
Humidity Tolerance: 10% – 90% (non-condensing)
-
Shock Resistance: Vibration-tested for road-ready durability
-
Dimensions & Weight
-
Fixture Size: 263 × 259 × 168 mm
-
Net Weight: 6.6 kg
-
Bracket Type: Double yoke for floor standing & truss mounting
Power Supply
-
Control & Programming
-
Control Protocols: DMX512 & RDM
-
DMX Channel Modes: 6CH / 7CH / 8CH / 13CH
-
User Interface: LCD display with 4-button touch panel
-
Wireless Control: Optional via external DMX node
-
Master/Slave Mode: Yes
-
Standalone & Auto Mode: Yes
-
Pre-Programmed Shows: Yes, with adjustable speed
-
RDM Compatibility: Yes, for remote addressing & diagnostics
-
Software Upgradeable: Yes, via DMX/RD
-
Input Voltage: 100-240V AC, 50/60Hz
-
Power Consumption: 240W (max)
-
Power Connectors: Seetronic Waterproof PowerCon in/out
-
Control Data In/Out: Seetronic Waterproof 3-pin XLR DMX
-
Power Factor: >0.98
-
Standby Power Draw: <1W
-
CERTIFICATIONS & SAFETY
-
Evaluated to m SPE-1000 for Canadian installation. U.S. field evaluation available upon request. Designed to comply with applicable CE and RoHS requirements.
-
Thermal cutoff, head-lock transport, fixture reset.
Why Choose Aurora 12-HEX-IP?
✅ Designed for Professional Use – Ideal for concerts, live shows, and installations
✅ Superior Color Accuracy – High CRI (>90) & HEX RGBWA+UV technology
✅ Weatherproof & Durable – IP65-rated housing withstands rain, dust, and extreme conditions
✅ Silent Operation – Fanless cooling system for noise-sensitive environments
✅ Energy-Efficient & Reliable – 50,000-hour LED lifespan with low power draw
What are the Applications of Aurora 12-HEX-IP
Live Concerts & Festivals – High-output, immersive stage lighting
Architectural & Outdoor Lighting – Perfect for building facades, landscapes, and monuments
Theater & Film Production – Flicker-free lighting for professional broadcasting & cinema
Nightclubs & Entertainment Venues – Creates dynamic color effects
Theme Parks & Outdoor Venues – Built to withstand extreme weather conditions
See It in Action – Visit Our Showroom!
Experience the Aurora HEX Series live at Illusion Universe! Visit our showroom for a hands-on demo and expert consultation.
Frequently Asked Questions (FAQs)
1. What is the Aurora 12-HEX-IP LED Wash Light?
The Aurora 12-HEX-IP is a professional IP65-rated static LED wash light featuring 12 × 20W RGBWA+UV HEX LEDs. It is designed for stage lighting, outdoor events, architectural illumination, theaters, festivals, and entertainment venues.
2. Is the Aurora 12-HEX-IP suitable for outdoor use?
Yes. The Aurora 12-HEX-IP has an IP65 dustproof and waterproof rating, making it suitable for outdoor concerts, festivals, architectural installations, and other applications exposed to weather conditions.
3. What beam angles are available on the Aurora 12-HEX-IP?
The Aurora 12-HEX-IP supports multiple beam angle options: 6°, 10°, 15°, 24°, and 36°, allowing users to select the appropriate beam spread for different lighting applications.
4. What control protocols does the Aurora 12-HEX-IP support?
The fixture supports DMX512 and RDM, with 6CH, 7CH, 8CH, and 13CH DMX modes. It also features master/slave, standalone, auto, and pre-programmed show modes.
5. What makes the Aurora 12-HEX-IP suitable for professional lighting applications?
The Aurora 12-HEX-IP combines 12 × 20W RGBWA+UV LEDs, high CRI greater than 90, IP65 protection, flicker-free operation, 16 kHz PWM, silent fanless cooling, Seetronic waterproof connectors, and a 50,000-hour LED lifespan for professional indoor and outdoor applications.
