LED Mining Strip Light

Model: IL-ILM-0414-17W-144-DC36V

The LED Mining Strip Light by Illusion Universe is a high-performance, heavy-duty lighting solution specifically engineered for underground mining operations, tunnels, industrial facilities, and hazardous working environments. Designed to deliver reliable illumination in demanding conditions, this advanced LED strip lighting system combines superior brightness, exceptional durability, and energy efficiency to ensure maximum visibility and workplace safety.

Powered by premium SMD2835 LEDs and operating on a safe DC36V low-voltage system, the strip light provides uniform illumination with minimal power consumption. Its IP68-rated waterproof construction, anti-explosion design, and robust silicone encapsulation make it ideal for harsh environments exposed to dust, moisture, vibration, and extreme temperatures.


Whether used in mining tunnels, conveyor routes, underground passages, or industrial installations, the Illusion LED Mining Strip Light offers dependable long-term performance with reduced maintenance requirements and lower operating costs.

Features

Features

  • High-brightness LED Mining Strip Light with 1600 lumens per meter output

  • Energy-efficient 17W/m design for reduced power consumption

  • Premium SMD2835 LED technology for uniform illumination

  • Safe DC36V low-voltage operation for mining and industrial environments

  • IP68 waterproof and dustproof protection for extreme conditions

  • Anti-explosion construction suitable for underground mining applications

  • Flame-retardant housing for enhanced operational safety

  • Long operational lifespan exceeding 50,000 working hours

  • Flexible strip design for easy installation in tunnels and confined spaces

  • Impact-resistant structure designed for harsh industrial environments

  • Excellent heat dissipation and stable performance

  • Maintenance-friendly design with reduced replacement frequency

  • Continuous connection capability up to 30 meters

  • Suitable for both permanent and temporary lighting installations

  • Instagram
  • Facebook
  • YouTube
  • TikTok

Technical Specifications

Gallery
TS

  • Electric Data

  • Model No: IL-ILM-0414-17W-144-DC36V

  • LED chip: Epistar

  • Light source: SMD2835

  • LEDs configuration: 144 LEDs per meter

  • Power/m: 17W/m

  • Color of lighting: White

  • CRI: >80

  • Color temperature: 6000-6500K

  • Luminous flux: 1600 Lum/m

  • Input working lighting voltage: DC36V / 50-60HZ


  • Packing

  • Qty per carton: 10 rolls of 10m

  • Inner packing: Anti-static bag for per roll

  • G.W for each carton: 16KG

  • Carton size: 47 × 47 × 31cm

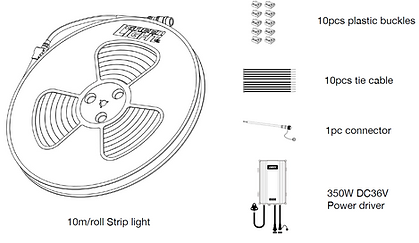

  • Accessories

  • Plastic buckle: 10 pcs per roll

  • Tie cable: 10 pcs per roll

  • Connector: 1 pc per roll

  • Power driver: 350W / DC36V

  • Operating and Storage Temperature

  • Operating temperature: -40 ~ +80°C

  • Storage and transportation temperature: +/- 40°C

  • Lifespan

  • Normal working life: +5 years

  • Lasting for 24hrs / 7days: +3 years

  • Warranty: 1 year

  • Maintenance savings: > 50% per year


  • Protection

  • Anti-explosive: Yes

  • Waterproof: IP68

  • Connector waterproof: IP68

  • Flame retardancy: Yes

  • Over voltage protection: Yes

  • Over heat protection: Yes

  • Isolator fuse: Yes

  • Impact resistance: Yes

  • Outer covering: Food grade silicone, free halogens

  • Tensile strength: 30KG


  • Production Dimension

  • Strip light size: W: 14mm, T: 4mm

  • Length / roll: 10m

  • Continued connection length: 30m

  • Cable: 2×1.5mm²

  • Cable voltage: 300V / 500V

  • N.W of per roll: 1.55KG

  • N.W of power driver: 3KG


  • Connections


Applications


  • The LED Mining Strip Light is ideal for:

  • Underground Mining Tunnels

  • Coal Mines

  • Metal Mining Operations

  • Conveyor Belt Lighting

  • Tunnel Construction Projects

  • Industrial Facilities

  • Underground Passages

  • Utility Tunnels

  • Railway Tunnels

  • Maintenance Walkways

  • Equipment Rooms

  • Hazardous Industrial Areas

  • Oil & Gas Facilities

  • Power Plants

  • Infrastructure Projects

Applications
Wh choose

Why Choose Illusion Universe LED Mining Strip Light?


The Illusion Universe LED Mining Strip Light is engineered specifically for mission-critical industrial environments where reliability, safety, and performance cannot be compromised. With its IP68 waterproof protection, anti-explosion design, high-lumen output, and durable construction, it delivers exceptional visibility while reducing maintenance and operating costs.


Unlike conventional industrial lighting systems, this mining strip light provides uniform illumination throughout tunnel networks, helping improve worker safety, operational efficiency, and productivity. Its long service life, energy-efficient performance, and rugged design make it a cost-effective lighting solution for mining and industrial projects worldwide.
