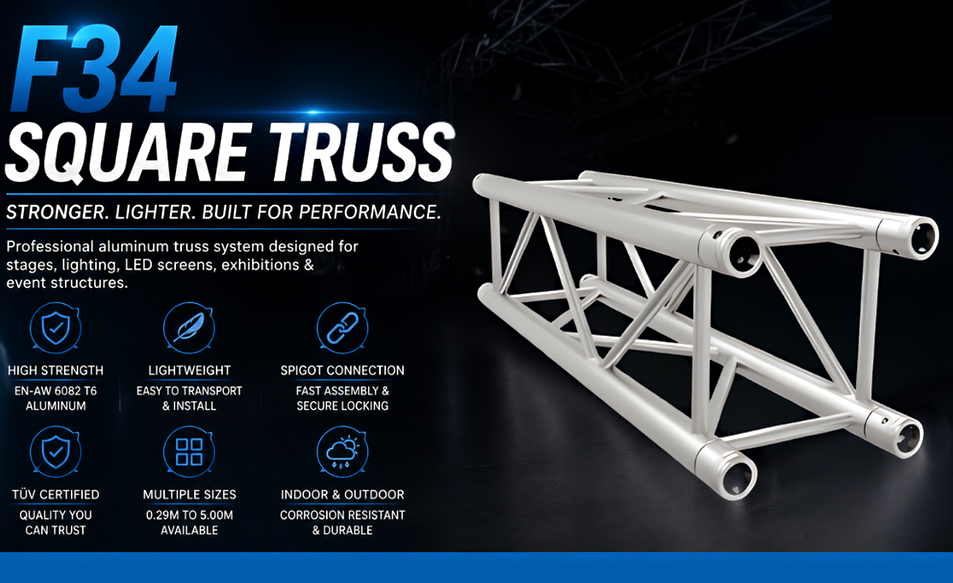

IT-F34 Square Truss
Professional Aluminum Truss System for Events, Stages & Exhibitions
The IT-F34 Square Truss is a premium-quality aluminum truss system engineered for professional event production, stage construction, exhibition displays, LED screen installations, and architectural structures. Recognized as an industry-standard truss solution, the IT-F34 series offers an excellent combination of strength, durability, versatility, and ease of installation.
Manufactured from high-strength EN-AW 6082 T6 aluminum alloy, the IT-F34 Square Truss provides superior load-bearing performance while maintaining a lightweight structure for easy transportation and assembly. Its precision-engineered spigot connection system ensures secure connections and rapid installation, making it a preferred choice for production companies, rental houses, event organizers, and exhibition contractors worldwide.
Whether you need a stage truss system, lighting truss, LED screen truss, or a complete event support structure, the IT-F34 Square Truss delivers reliable performance for both indoor and outdoor applications.
Features
-
Premium Aluminum Construction
-
Manufactured using high-grade EN-AW 6082 T6 aluminum alloy for exceptional strength, durability, and corrosion resistance.
-
Industry-Standard Design
-
The F34 series is widely used across the entertainment and event industry for professional rigging and structural applications.
-
Lightweight Yet Strong
-
Provides an excellent strength-to-weight ratio, making transportation, handling, and installation easier.
-
Indoor & Outdoor Applications
-
Suitable for concerts, exhibitions, trade shows, corporate events, touring productions, and permanent installations.
-
Professional Spigot Connection System
-
Fast and secure assembly using conical connectors, pins, and safety clips for maximum structural integrity.
-
High Load Capacity
-
Designed to support professional lighting fixtures, LED screens, audio equipment, banners, and decorative elements.
-
Modular & Flexible Configuration
-
Available in multiple lengths and compatible with various corners, junctions, bases, and accessories.
-
Precision Welded Structure
-
Manufactured with high-quality welding technology for enhanced safety and long-term reliability.
Technical Specifications
-
Product Name: IT-F34 Square Truss
-
SERIES : IT SERIES
-
Width: 290 mm (11.41 in)
-
Height: 290 mm (11.41 in)
-
Size Available : 1 Meter , 2 Meter , 3 Meter.
-
Main Tube: 50 x 2 mm
-
Bracing Tube: 20 x 2 mm
-
Certification: TÜV Certified
Applications
-
The IT-F34 Square Truss is ideal for:
-
Concert Stages
-
Live Events
-
Touring Productions
-
DJ Setups
-
LED Video Wall Support
-
Trade Shows & Exhibitions
-
Retail Displays
-
Corporate Events
-
Fashion Shows
-
Television Productions
-
Nightclubs & Entertainment Venues
-
Architectural Installations
Advantages of IT-F34 Square Truss
-
High structural strength
-
Lightweight aluminum construction
-
Quick installation and dismantling
-
Corrosion-resistant material
-
Professional appearance
-
Compatible with standard truss accessories
-
Cost-effective event infrastructure solution
-
Reusable for multiple projects and events
-
Safe and reliable performance
Available Lengths & Unit Weights
Model
Length
Unit Weight
SQ-4109-29
SQ-4109
SQ-4110-75
SQ-4110-875
SQ-4110
SQ-4111-1250
SQ-4111
SQ-4112
SQ-4112-215
SQ-4113
SQ-4112-275
SQ-4114
SQ-4115
SQ-4116
SQ-4117
SQ-4118
0.29 m
0.50 m
0.75 m
0.875 m
1.00 m
1.25 m
1.50 m
2.00 m
2.15 m
2.50 m
2.75 m
3.00 m
3.50 m
4.00 m
4.50 m
5.00 m
4.99 kg
5.45 kg
6.36 kg
7.72 kg
8.17 kg
9.08 kg
10.44 kg
13.17 kg
13.62 kg
15.44 kg
16.80 kg
18.16 kg
20.43 kg
23.15 kg
26.33 kg
29.51 kg
Why Choose IT-F34 Square Truss?
The IT-F34 Square Truss has become one of the most trusted aluminum truss systems in the global event and entertainment industry. Its robust construction, modular design, and professional-grade performance make it ideal for creating safe and visually impressive structures for concerts, exhibitions, corporate events, and LED display installations.
For event professionals seeking a reliable aluminum stage truss, lighting truss system, LED screen support truss, or exhibition truss, the IT-F34 Square Truss offers the perfect balance of strength, flexibility, and long-term value.
