HYBRID
-
Pan/Tilt:
-
Pan: 540 degrees (plus 16-bit fine pan)
-
Tilt: 270 degrees (plus 16-bit fine tilt)
-
3 Phase, SY Brand (XY axis magnetic coding positioning is more accurate)
-
Connections:
-
DMX Connections: 3-pin DMX In/Out (5 pin optional ) (Data link max: 32 fixtures)
-
Power Connections: Outdoor locking In/Out connections to daisy chain power
-
Electrical:
-
Multi-voltage operation: 100-240V, 50/60Hz
-
Max power consumption: 220W
-
Dimensions & Weight:
-
Dimension: 13.3” (L) x 10” (W) x 20” (H) / 338 x 256 x 515mm
-
Weight: 39.6 lbs. / 18 kg.

UPC# : 673324965029
Offering an efficient 200W OSRAM LED light source combined with an extensive feature set, the Robust 200 Hybrid is a versatile moving head luminaire. It can function interchangeably as a spot, wash or beam fixture, making it ideal for rental and event production applications as well as for installation in venues that require a moving light which can deliver a high degree of flexibility. It features motorized zoom and focus, two GOBO wheels, an independent color wheel, 3-Facet rotating prisms and an Electronic frost.
Part of Illusion Universe’s immensely popular Robust Series of LED-powered moving heads, the Robust Hybrid is a versatile fixture which can function interchangeably as a spot, wash or beam luminaire. It features an efficient 200W cool white (8,000k) LED engine which has an average life expectancy of 40,000 hours and generates an output of 27,000 lumens. This light is focused through a precision-engineered optical system and a variety of beam-shaping elements to generate a flexible output which can be used to create aerial effects, surface pattern projections or color washes.
The Robust 200 Hybrid offers a beam angle variable between an intense 3-degrees and a significantly wider 45-degrees, with motorized zoom providing quick and precise changes between beam angle settings. In addition, motorized focus can be used to ensure pattern projections are sharp at variable beam angles and projection distances, while a frost filter can be used to further widen the beam angle and soften the beam edge to achieve a wash output. A Heavy Frost filter is fitted as default, but this can be replaced to suit the needs of specific applications and a Medium Filter is also supplied together with the fixture as standard.
Features
-
0-100% 16BIT Smooth dimming with four dimming curves.
-
Overheating self-energy protection can extending lamp life.
-
Three phase Motor with SY Brand (XY axis magnetic coding positioning is more accurate.
-
High quality LCD touch screen.
-
Power in & Out connector,3 or 5pin XLR inout & output can optional.
-
Folding clamp.
-
Housing material: PA6 Nylon(Solid, high temperature resistance up to 200°, flame retardant)re updates.

Robust 200 Hybrid
Technical Specifications
-
Light Source:
-
OSRAM 200W LED CHIP(21-24V,8A)
-
Color temperature: 8000K
-
Beam Angle: 3°-45°
-
Diameter of optic lens: 97mm
-
Frost Filter:
-
with smooth wash effect
-
Focus:
-
Electric focusing system
-

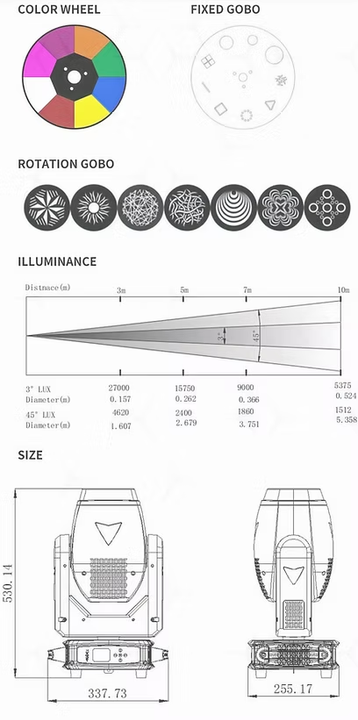

Color Wheel:
-
Color Wheel : 7 Colors + open
-
GOBO Wheel:
-
8 static GOBOs + Open
-
7 Rotation GOBOs + Open
-
Prism Wheels:
-
3-Fact prisms, Can be rotated in both directions Equipped with 8 PRISM and 8+16+24 Honeycomb Prism.
-
Control:
-
Protocols: DMX512 & RDM
-
Control Mode: DMX512 & Manual (On-board Controls)
-
1 DMX Channel Modes: 20 Channels
-
2.4-inch Color screen with touch buttons
-
0-100% Smooth Dimming
-
Various strobe speeds
-
With Wired Digital Communication Network
-
Certifications & Safety
Evaluated to m SPE-1000 for Canadian installation. U.S. field evaluation available upon request. Designed to comply with applicable CE and RoHS requirements. -
Thermal cutoff, head-lock transport, fixture reset.
-
What’s Included:
-
2M, 14AWG power cord
Applications
-
Live Concerts & Stage Productions
-
Corporate Events & Conferences
-
Wedding & Social Events
-
Nightclubs & DJ Setups
-
Theatres & Auditoriums
-
TV Studios & Broadcast Lighting
-
Rental & Production Companies
-
Architectural & Indoor Installations
-
Fashion Shows & Exhibitions
-
Religious & Cultural Events
Why Choose Robust 200 Hybrid?
-
3-in-1 Versatility: Works as Beam, Spot, and Wash – one fixture for multiple lighting needs.
-
Powerful OSRAM 200W LED Engine: Delivers 27,000 lumens with long life (40,000 hours) and high efficiency.
-
Wide Zoom Range (3°–45°): From sharp aerial beams to wide wash coverage with smooth transitions.
-
Advanced Optical System: Crisp gobo projections, vibrant colors, and uniform beam output.
-
Dual GOBO Wheels + Color Wheel: Creative flexibility with static & rotating gobos and 7 colors + open.
-
Multiple Prism Effects: 3-facet prism + honeycomb prisms (8, 16, 24) for stunning multi-beam visuals.
-
Motorized Zoom & Focus: Precision control for sharp projections at any distance.
-
Frost Filter for Wash Effects: Easily convert beam into smooth wash output.
-
Professional Control Options: DMX512 & RDM support with 16-bit dimming and multiple effects.
-
Robust Build Quality: High-temperature resistant PA6 nylon body with reliable internal components.
-
Energy Efficient & Safe: Low power consumption (220W) with thermal protection system.
-
Ideal for Rental Use: Durable, flexible, and easy to set up—perfect for repeated use.
